PBM-16C1-E-01 Low Profile 16mm Push Button Switch Right Angle
-
-
-
PBM-16C1 Low Profile 16mm LED Metal Push Button Switch Right Angle Cable Mounted

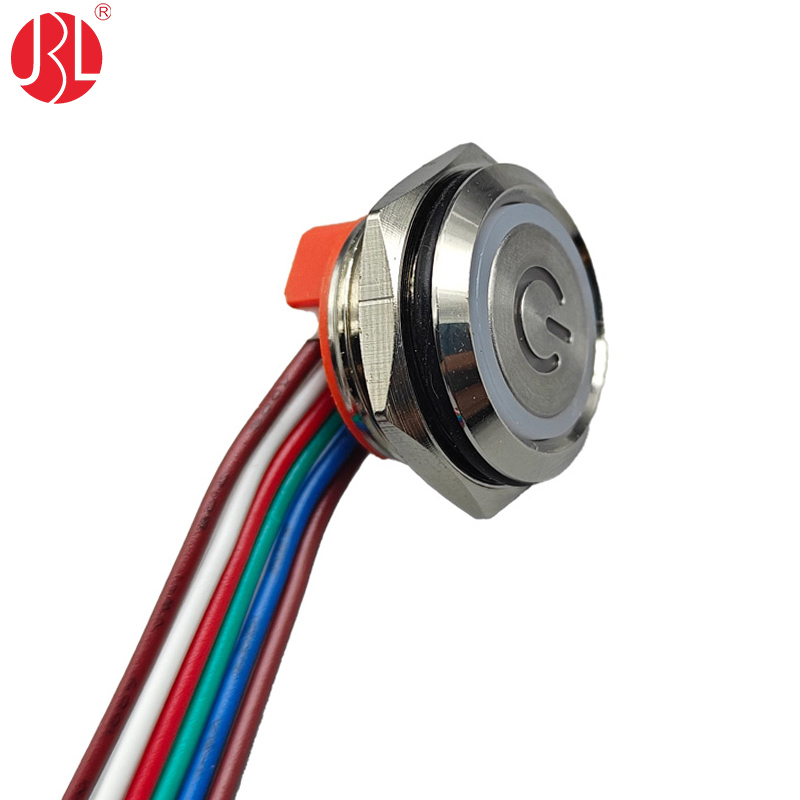

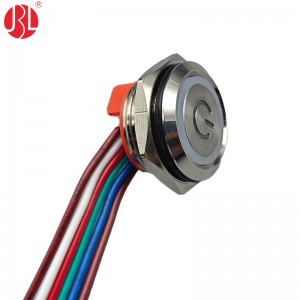

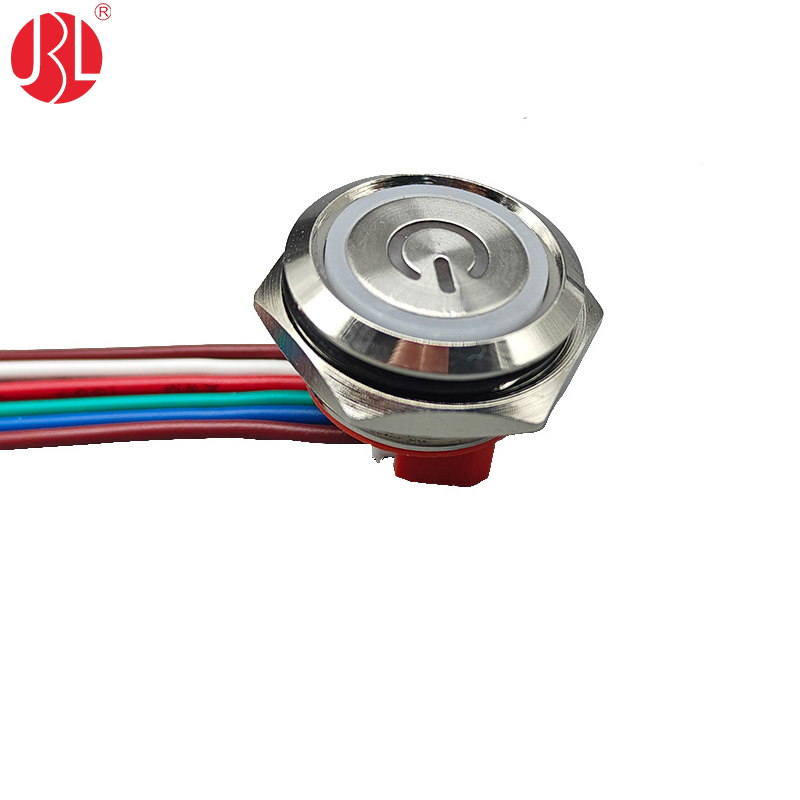

The Jinbeili PBM-16C1 Series is a 16mm low-profile LED metal push button switch, also known as a 16mm anti-vandal switch, designed for compact and space-constrained applications. This momentary metal push button switch features a stainless steel construction and a built-in right-angle JST ZH 6-pin shrouded header connector, S6B-ZR, at the bottom of the switch. The right-angle connector provides a convenient solution for right-angle wiring while helping maintain the switch’s low-profile structure.
The PBM-16C1 Series supports flexible LED illumination configurations, including ring illumination and power-symbol illumination. LED options include RGB, single-color, and dual-color illumination. Available LED colors include red, blue, green, yellow, white, orange, and other customized colors. LED voltage options range from DC 3V to DC 36V, providing flexibility for different control panels and electronic systems.
For applications where customers prefer to control LED current on their own PCB, the switch can also be supplied with no internal LED resistor. In this configuration, customers can place the appropriate resistor directly on their PCBA according to their circuit design and LED requirements.
The switch can be supplied with 50–1000 mm wire lengths. The opposite end of the wires can be processed as stripped and tinned wires or terminated with a customer-specified connector, providing flexible wiring solutions for different assembly requirements.
The PBM-16C1 is suitable for consumer electronics, industrial equipment, control panels, and compact electronic devices where low-profile construction, metal appearance, LED illumination, and flexible wiring are required. The switch is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory.
FAQs:
Is the PBM-16C1 made of stainless steel?
Yes. The metal push button switch is made of stainless steel, providing a durable and premium metal appearance.
Can you make this push button switch with a white LED?
Yes. A white LED push button switch version is available. Other LED colors, including red, blue, green, yellow, and orange, can also be provided.
Is the PBM-16C1 momentary or latching?
The PBM-16C1 is a momentary push button switch. Unfortunately, a latching version is not currently available because the low-profile design does not provide sufficient internal space for the mechanical clip required for a latching function.
Why does the switch use a right-angle JST connector?

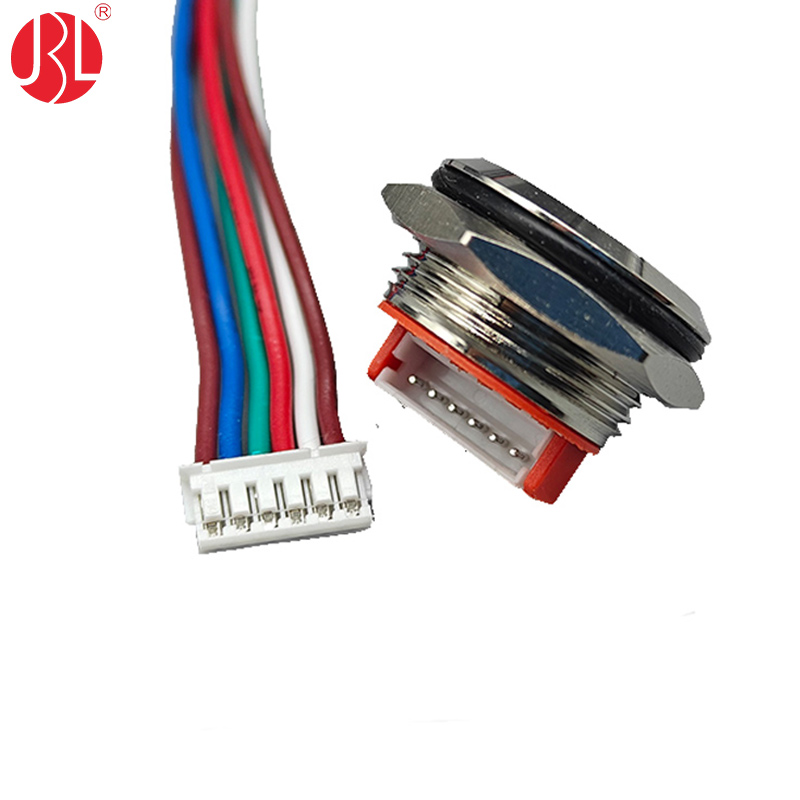

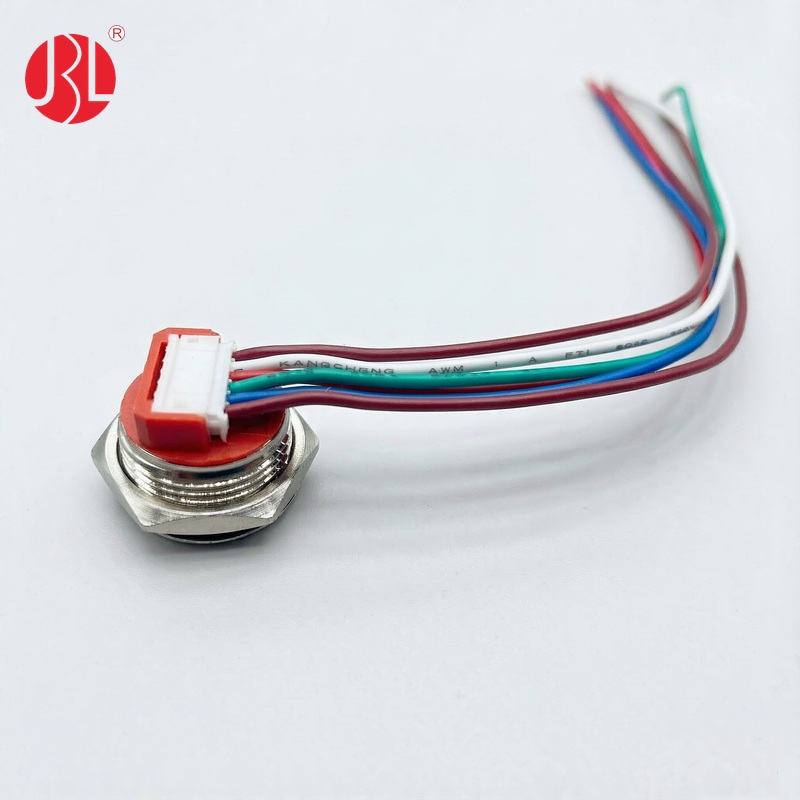

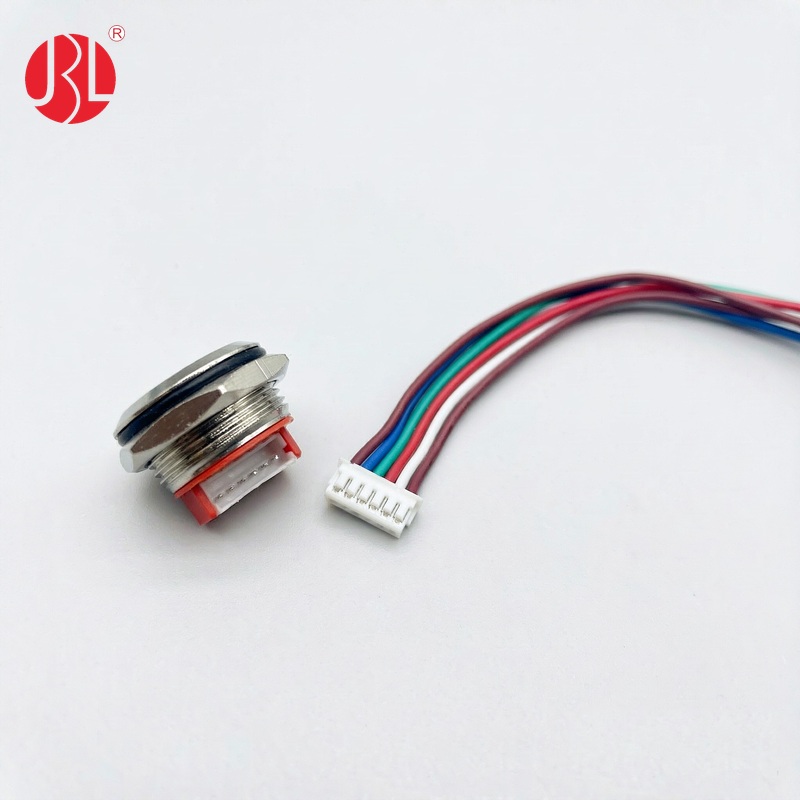

The built-in JST ZH 6-pin S6B-ZR right-angle connector allows right-angle wiring and helps maintain the switch’s low-profile design, making it useful where installation space behind the panel is limited.
What LED voltage options are available?
LED voltage options range from DC 3V to DC 36V. A resistor-free LED configuration can also be supplied when customers prefer to place the appropriate resistor on their own PCBA.
What wire lengths and termination options are available?
Wire lengths can be customized from 50 mm to 1000 mm. The wire ends can be stripped and tinned or terminated with a specified connector.
Do you have other low-profile metal push button switch sizes?
Yes. We offer similar low-profile metal push button switches in 12mm, 16mm, 19mm, and 22mm sizes, with different illumination and wiring configurations available for customized applications.
