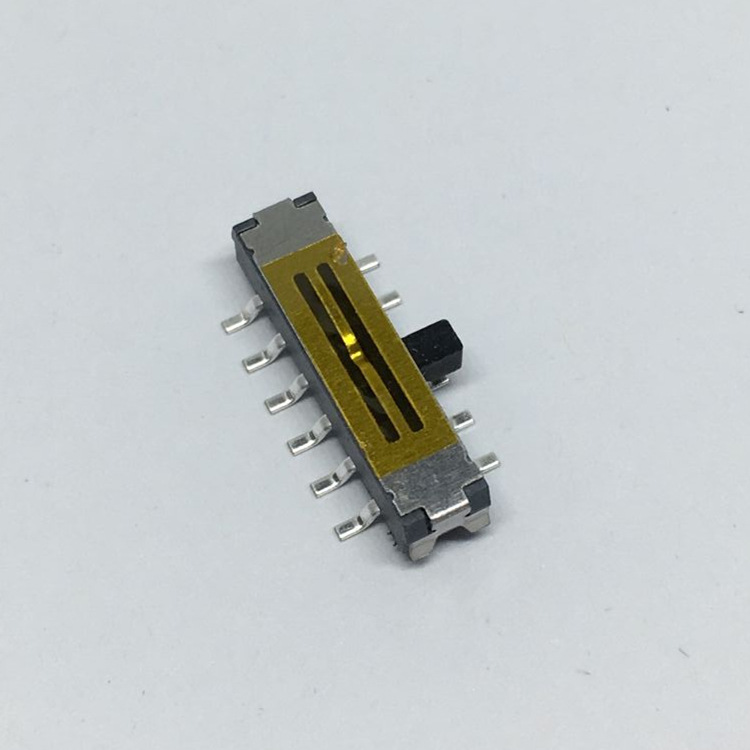

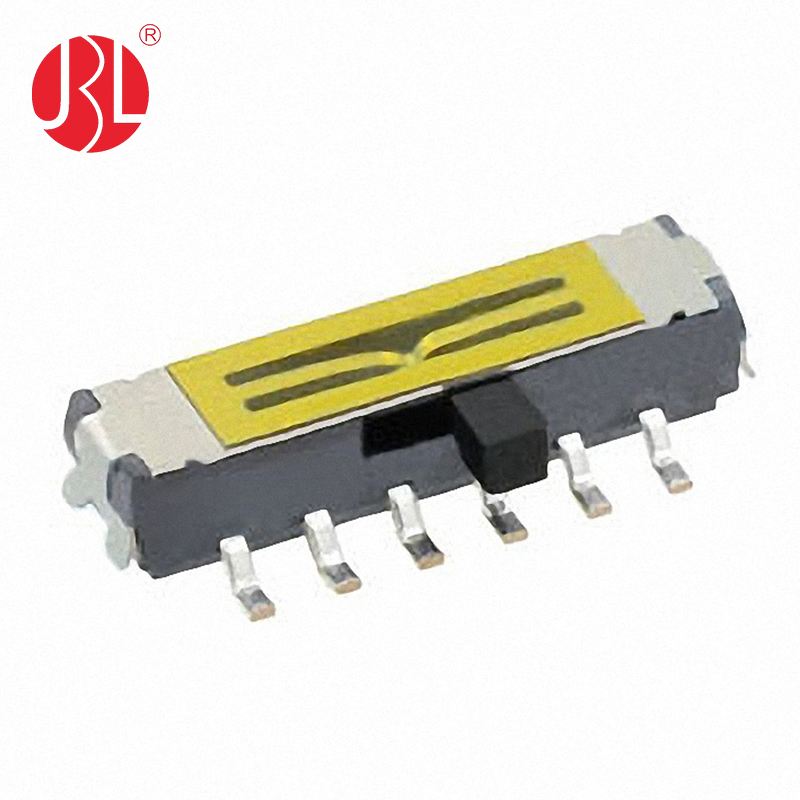

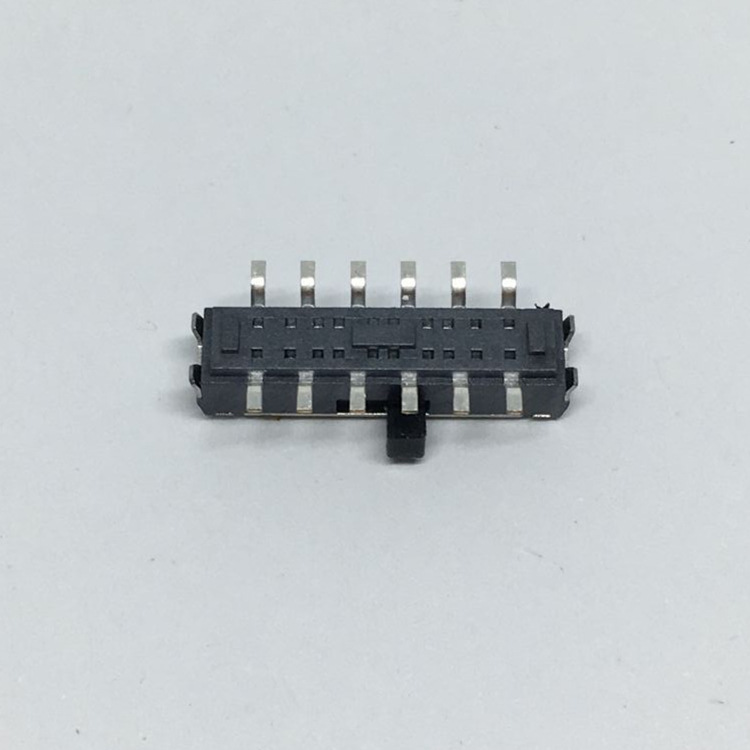

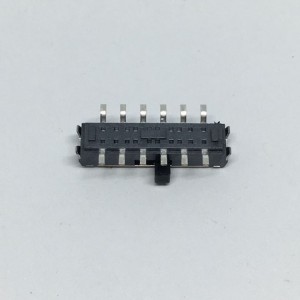

MK-42D20 Mini Slide Switch 4P2T SMT Right Angle
-
-
-
This miniature slide switch features a 4P2T (four poles, two throws) configuration and is designed for surface mount technology (SMT) applications. It has a right-angle orientation, making it suitable for space-constrained designs. The switch is rated for DC 30V and 0.1A, and offers actuator length options ranging from 2.0mm to 6.0mm to accommodate various operational and installation requirements.
Its compact size and excellent performance make it an ideal choice for a wide range of electronic applications, including consumer electronics, industrial controls, automotive electronics, and more. The switch is also compatible with and can serve as a direct replacement for parts such as Nidec Components CMS-4216B and CMS-4216TB, providing a cost-effective and reliable solution for designers and engineers.
Overall, this miniature slide switch offers a versatile and reliable switching solution that is easy to integrate into compact designs and can be tailored to fit specific application needs.
