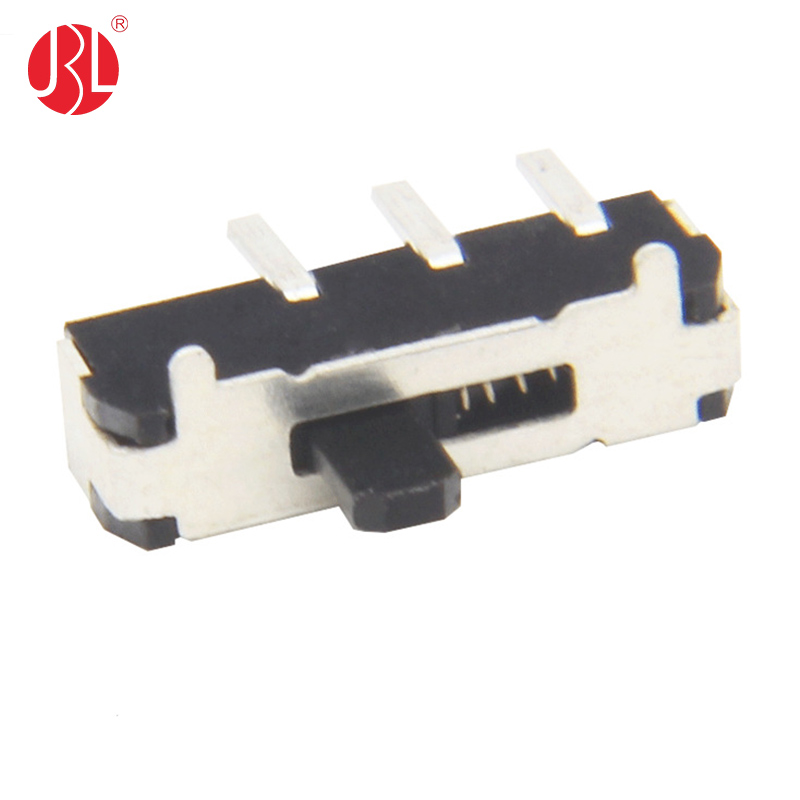

MK-12D70-E-L Self Reset Miniature Slide Switch SP3T SMT Right Angle
-
-

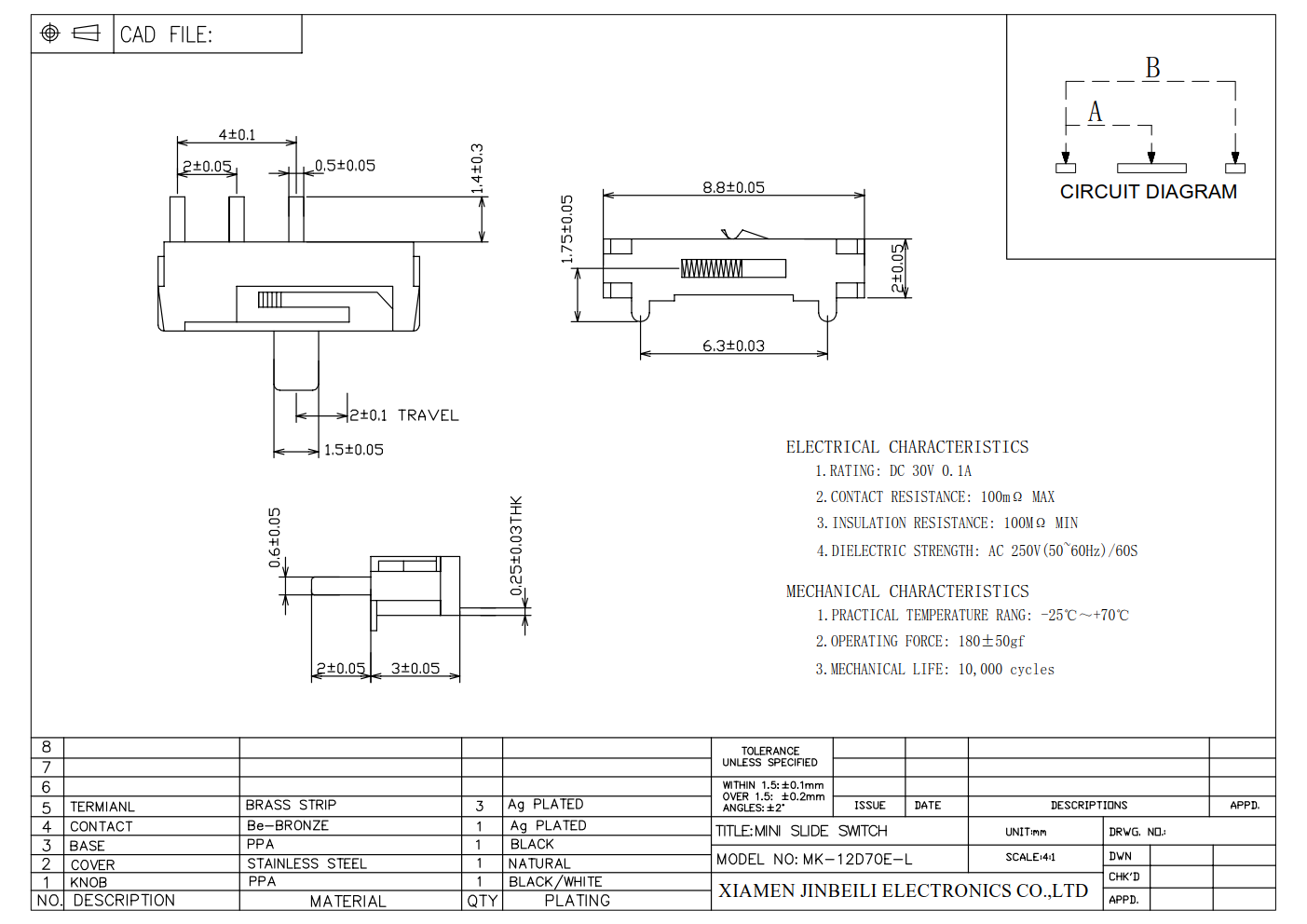

This miniature slide switch features a Single Pole Double Throw (SP2T) configuration with a right-angle SMT design. It incorporates a self-reset mechanism driven by a single internal spring, allowing the actuator to return smoothly from the left side. Operating in an on-on-Mom function, this switch is rated for DC 30V and 0.1A, with compact dimensions of 8.8mm x 2mm, making it ideal for tight spaces. Its reliable performance makes it an excellent alternative to the C&K Slide Switch JSM08011SAQNR.
Previous:
MK-13D70E Miniature Slide Switch 1P3T SMT Right Angle
Next:
MK-22D10 Miniature Slide Switch 2P2T Through Hole Right Angle
1p2t slide switch smt right angle self reset slide switch spdt
Write your message here and send it to us
This miniature slide switch features a Single Pole Double Throw (SP2T) configuration with a right-angle SMT design. It incorporates a self-reset mechanism driven by a single internal spring, allowing the actuator to return smoothly from the left side. Operating in an on-on-Mom function, this switch is rated for DC 30V and 0.1A, with compact dimensions of 8.8mm x 2mm, making it ideal for tight spaces. Its reliable performance makes it an excellent alternative to the C&K Slide Switch JSM08011SAQNR.
