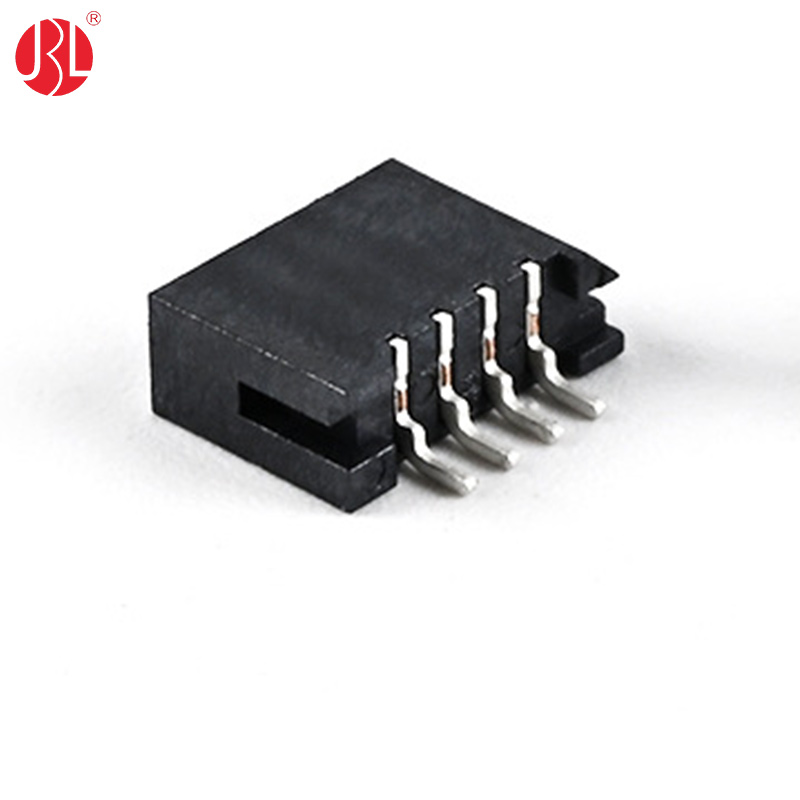

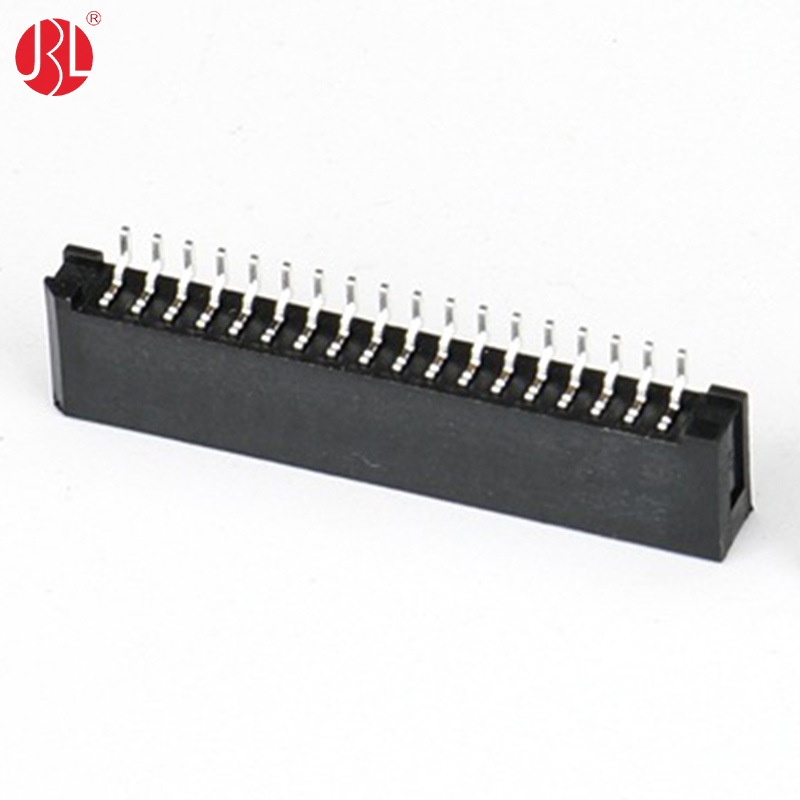

FPC-1.25-WT-nP 1.25mm Pitch FPC Connector Surface Mount Right Angle
-
-
This product is a 1.25mm pitch FPC (Flexible Printed Circuit) connector designed as a direct, identical replacement for the E-tec Interconnect FCL-xxx-H125-99 /X series. It features a Low Insertion Force (LIF) mechanism in a horizontal orientation, providing a secure and reliable connection to flat flexible cables while minimizing the stress on both the cable and the connector during mating. Its surface-mount, right-angle design facilitates a low-profile PCB footprint, ideal for space-constrained applications where the cable must run parallel to the board.
The connector utilizes a straightforward cable-inserting style, where the FPC is slid directly into the receptacle. The housing is molded from high-temperature LCP (Liquid Crystal Polymer), ensuring excellent stability and performance during reflow soldering processes. The electrical contacts are finished with tinned plating, offering reliable solderability and good corrosion resistance. Available in a versatile range from 3 to 28 positions (ways), this series provides design flexibility for various I/O counts. With its identical dimensions and electrical specifications to the established E-tec series, this connector guarantees seamless integration and reliable performance in consumer electronics, display interfaces, and other compact devices requiring a robust FPC interconnection.
