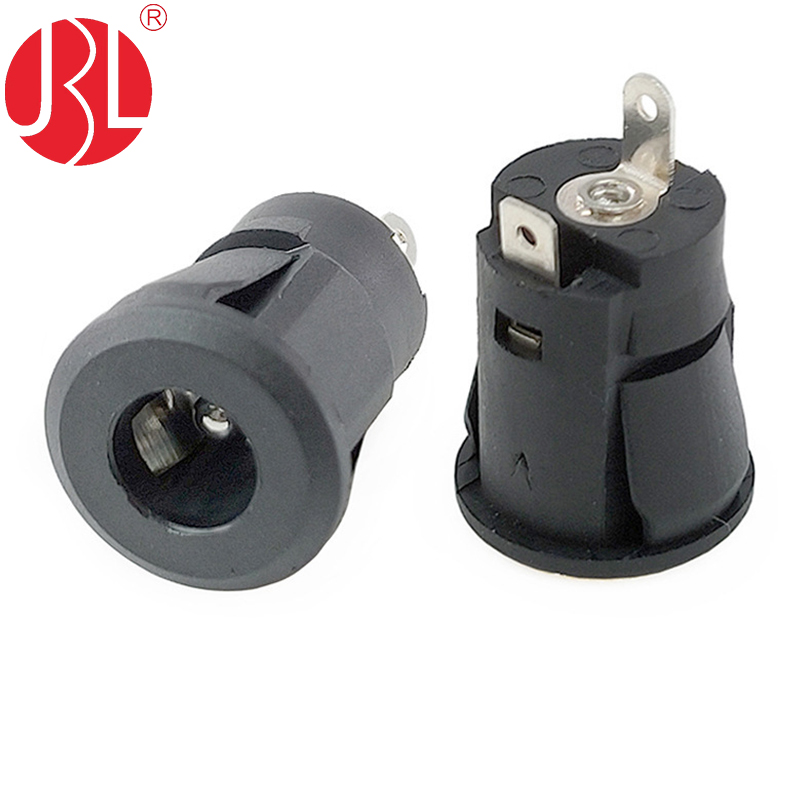

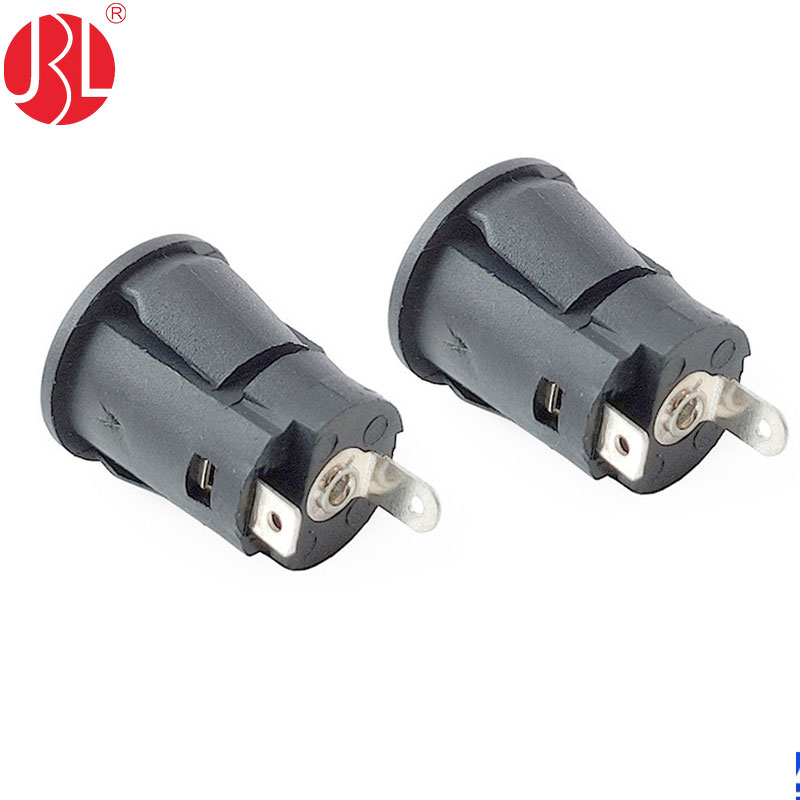

Product Description: Snap-In Panel Mount DC Power Jack (5.5×2.5mm / 5.5×2.1mm)

This Snap-In Panel Mount DC Power Jack offers a robust, high-retention power entry solution for industrial and consumer electronics. Engineered for mechanical security, the integrated snap-in plastic housing eliminates the need for additional mounting nuts, allowing for rapid, tool-free installation into panels with a thickness of 1.0mm to 2.5mm.

Electrically rated at DC30V 2A, this connector provides reliable current delivery for battery chargers, audio equipment, security cameras, and portable medical devices. It features dual solder lug terminals for secure PCB or lead wire attachment, ensuring low contact resistance and stable performance. To accommodate varying plug standards, the center pin is available in two industry-standard diameters: 5.5mm outer pin with a 2.5mm inner hole or 5.5mm outer pin with a 2.1mm inner hole.

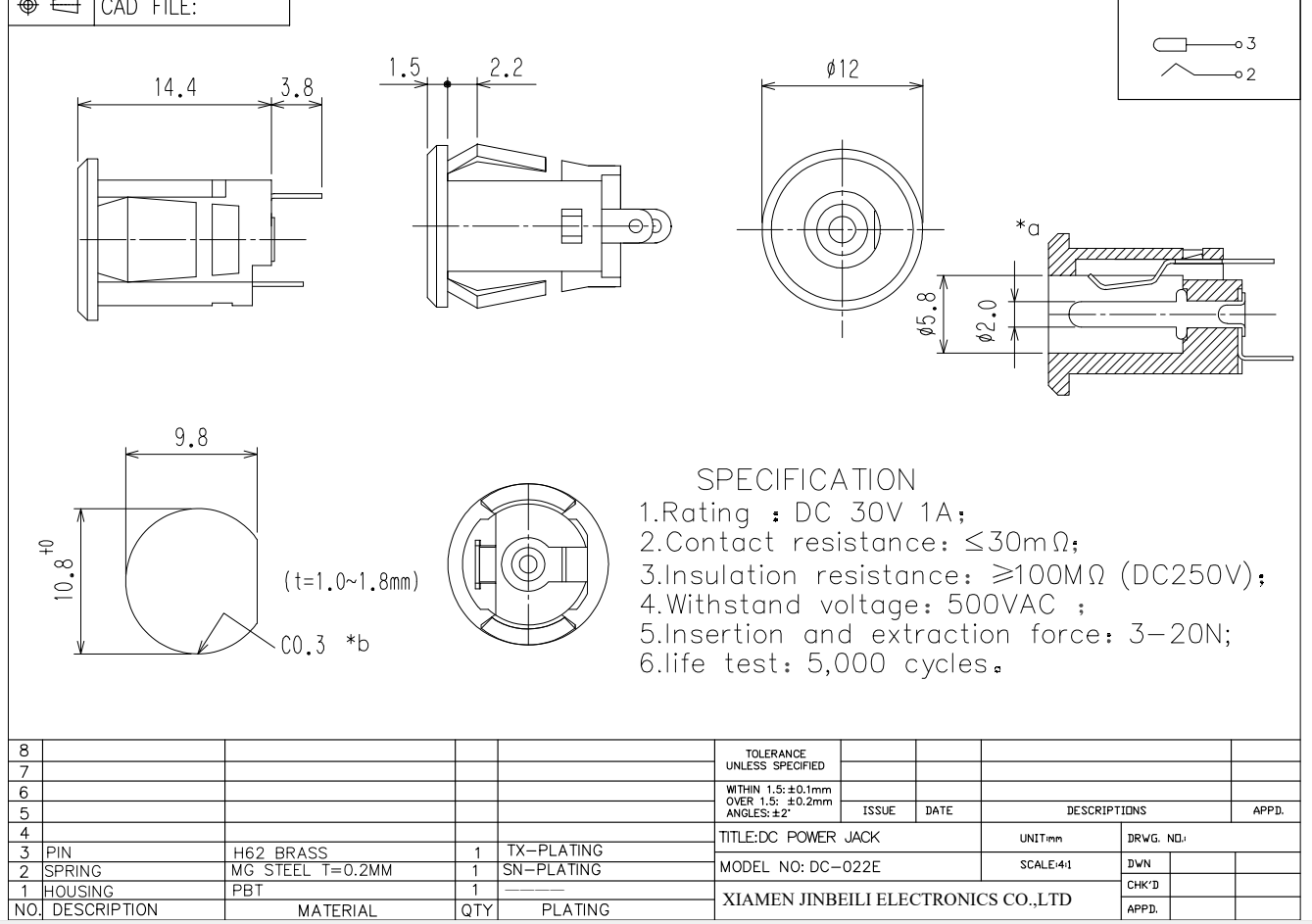

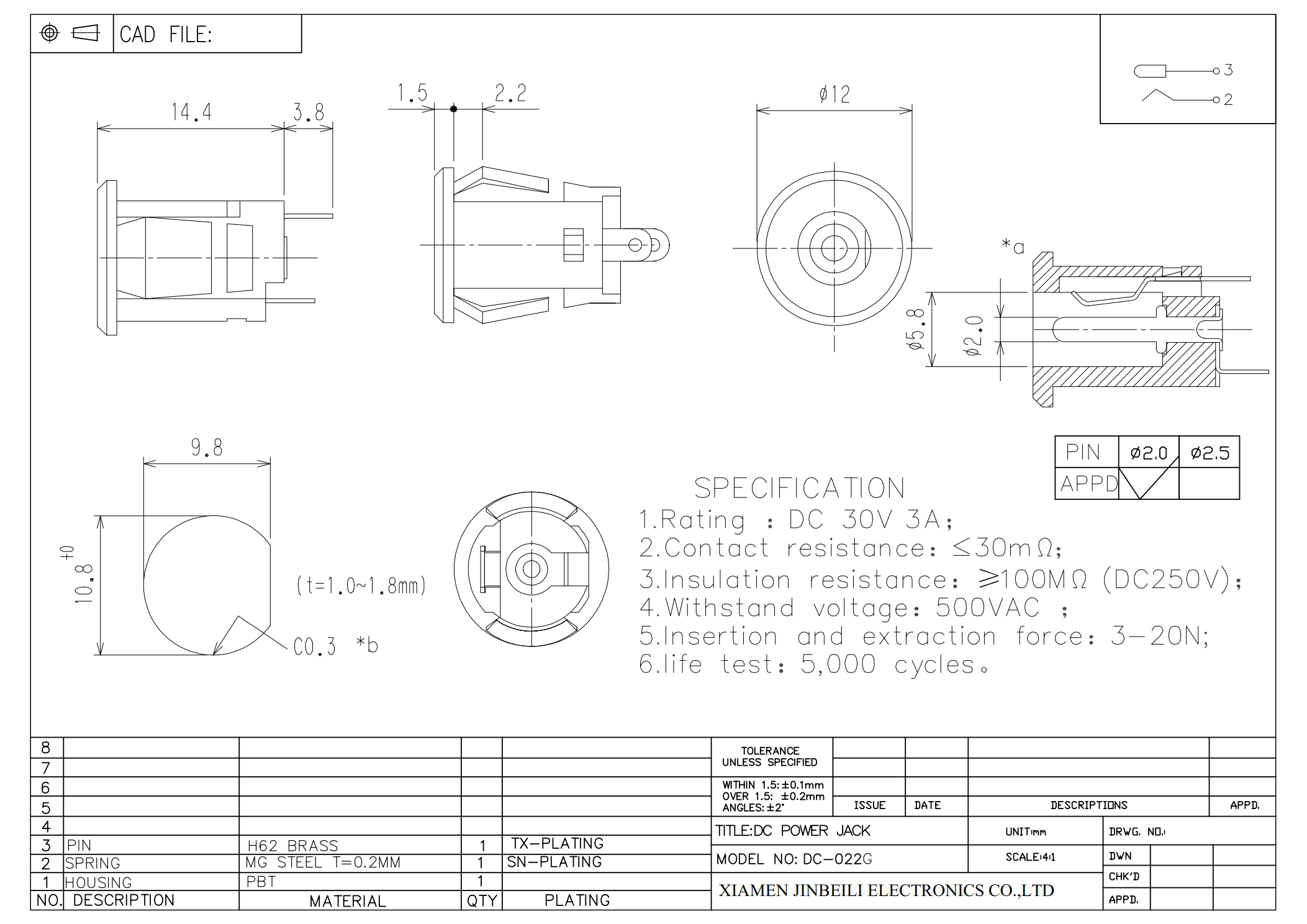

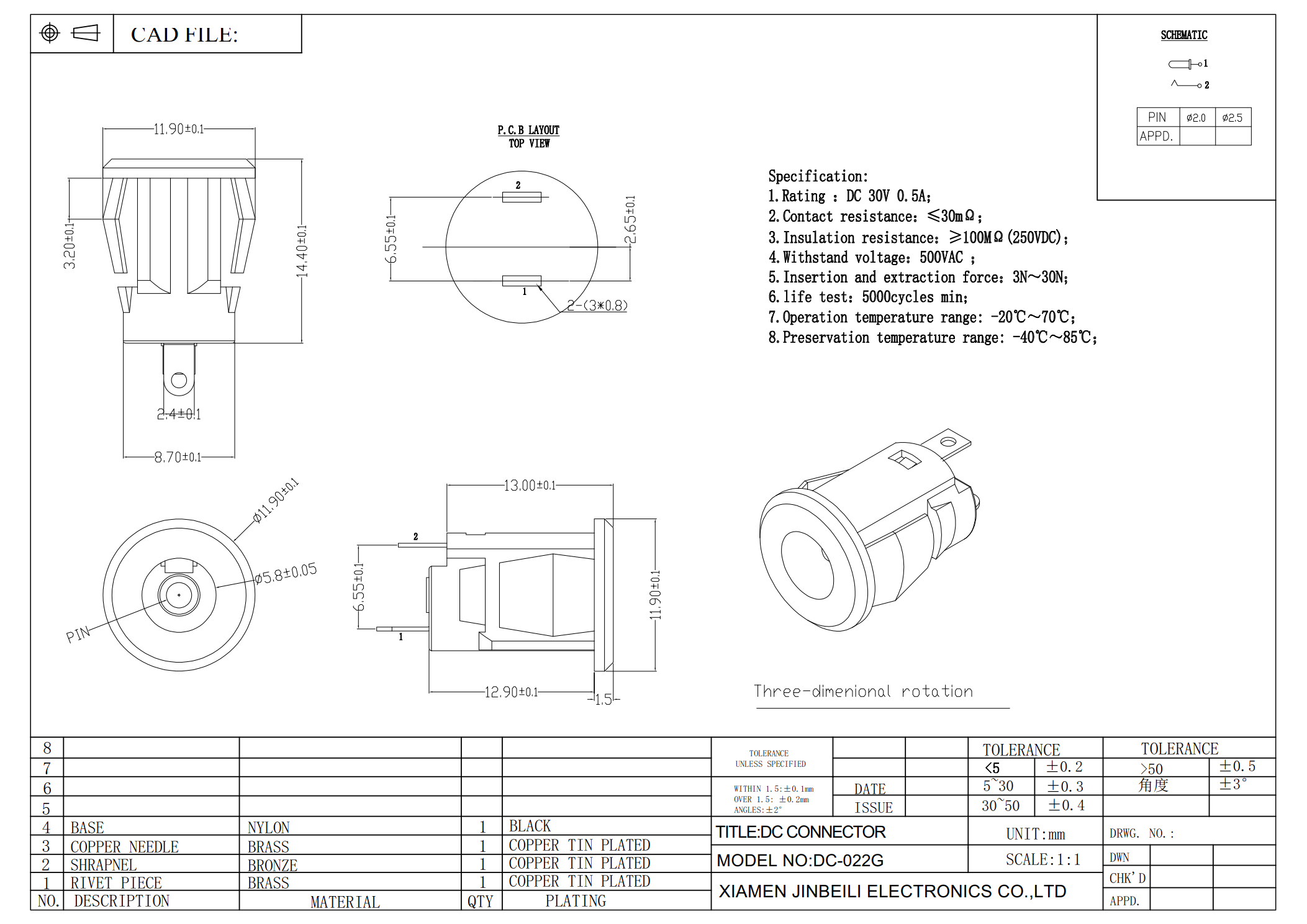

A key feature of this component is its complete mechanical and electrical interchangeability with the LUMBERG 1610 series (specifically the LUMBERG 1610 07 connector). It shares identical mounting dimensions, pin pitch, and ingress protection spacing, making it a direct, drop-in alternative for the 1610 series without PCB redesign.

Beyond compliance with RoHS & REACH environmental standards, we offer critical customization for wire leads. If you require a pre-wired assembly, simply provide wire length (e.g., 150mm), dimensions (e.g., UL1007 22AWG), and termination processing (e.g., tinned ends, stripped ends, or ferrule crimping). This turnkey modification reduces assembly time and risk of solder errors in your production line, delivering a plug-and-play harness ready for chassis integration.
