USB-M-5M-010H-3.0 Board Edge Straddle Mount Micro USB 3.0 Plug
-
-
Micro USB 3.0 Male Connector – Board Edge Straddle Mount | USB-M-5M-010H-3.0

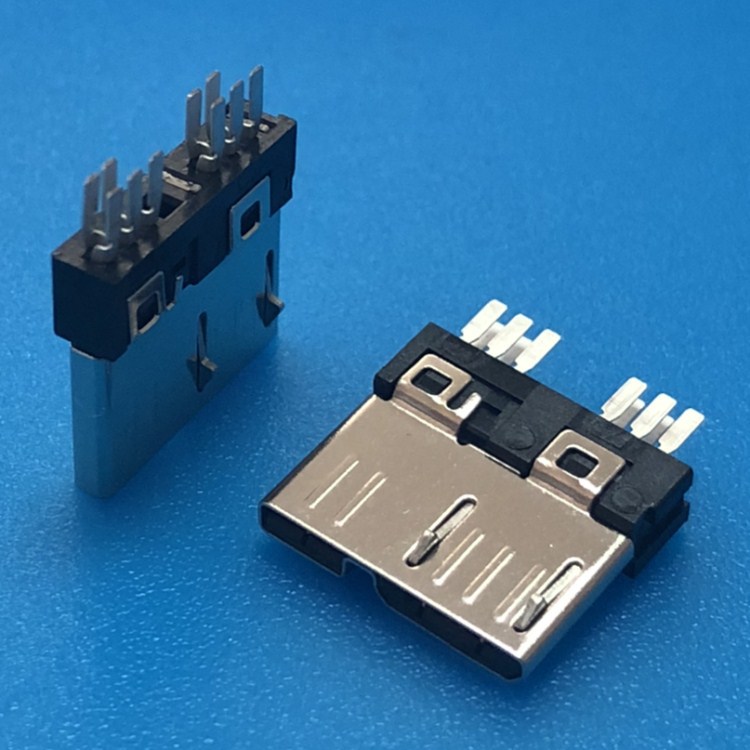

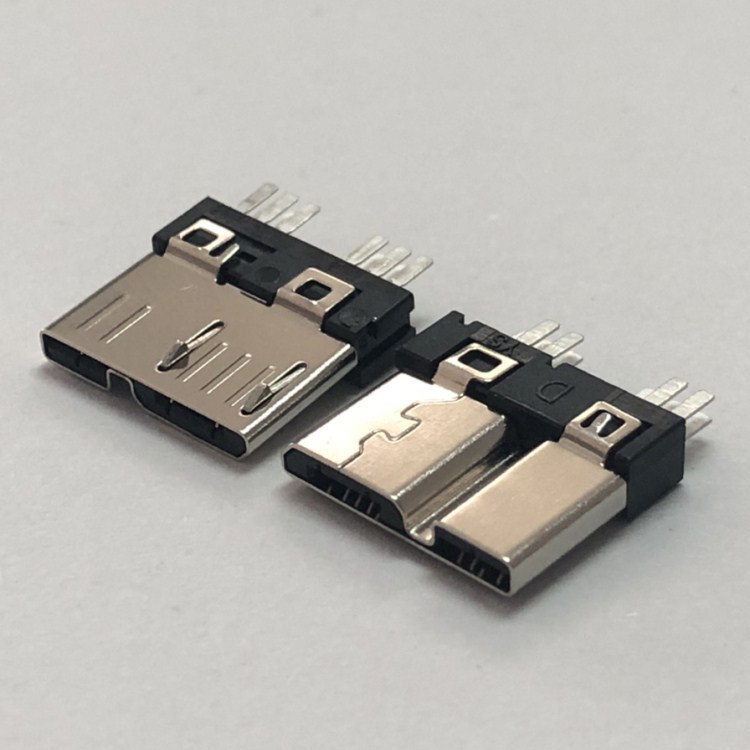

The Jinbeili USB-M-5M-010H-3.0 Micro USB 3.0 Male Connector is a 10-position USB plug designed for board-edge straddle mounting on printed circuit boards (PCBs). Rated for DC 30V and 1.8A, this connector features bronze terminals for electrical connectivity and an LCP insulation housing for reliable performance.
Its board-edge straddle-mount design makes it suitable for compact electronic assemblies requiring a Micro USB 3.0 interface. Typical applications include consumer electronics, industrial equipment, and other electronic devices. Jinbeili provides alternative USB connector models for different mounting configurations and integration requirements.
The USB-M-5M-010H-3.0 is RoHS and REACH compliant and manufactured by a factory certified to ISO 9001 and IATF 16949 quality management standards. For OEM manufacturers and electronic component buyers seeking a board-edge straddle-mount Micro USB 3.0 male connector, Jinbeili offers reliable manufacturing support and customized connectivity solutions.
Frequently Asked Questions (FAQs)
Q1: Can the USB-M-5M-010H-3.0 Micro USB connector be used for board-edge straddle mounting?

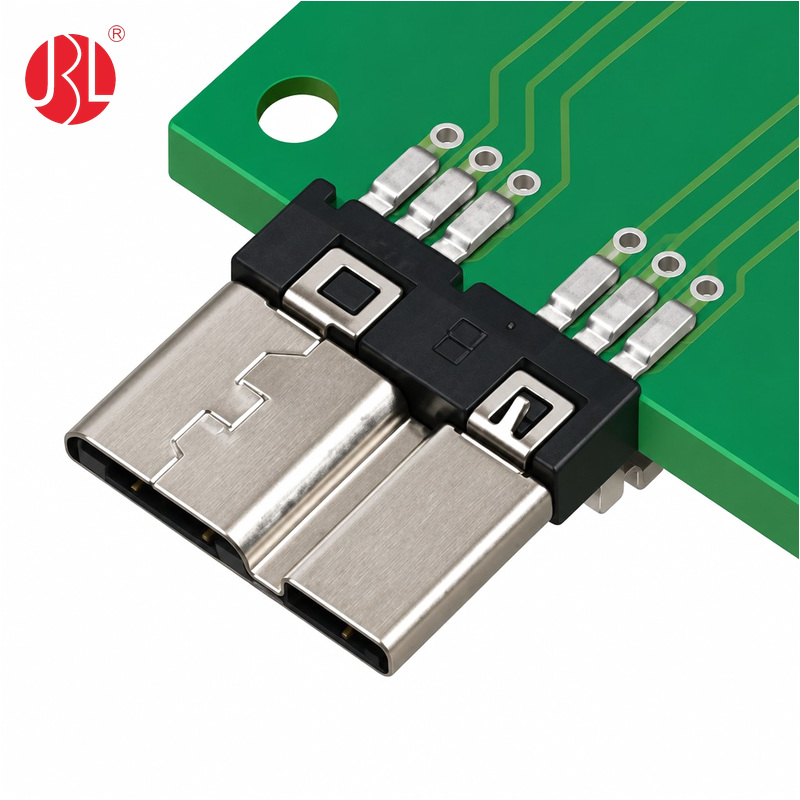

Yes. This Micro USB 3.0 male connector is specifically designed for board-edge straddle mounting, allowing it to be installed at the edge of a PCB.
Q2: Can this connector replace the CUI Devices UP3-MIBV-4-CM?
No. The CUI Devices UP3-MIBV-4-CM is a free-hanging USB connector, while the Jinbeili USB-M-5M-010H-3.0 is designed for board-edge straddle mounting. Jinbeili offers another model suitable for free-hanging applications. Please contact us for assistance in selecting the appropriate alternative.
Q3: What are the electrical ratings of this Micro USB 3.0 male connector?
It is rated for DC 30V and 1.8A.
Q4: Is this USB connector RoHS and REACH compliant?
Yes. It is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory.
