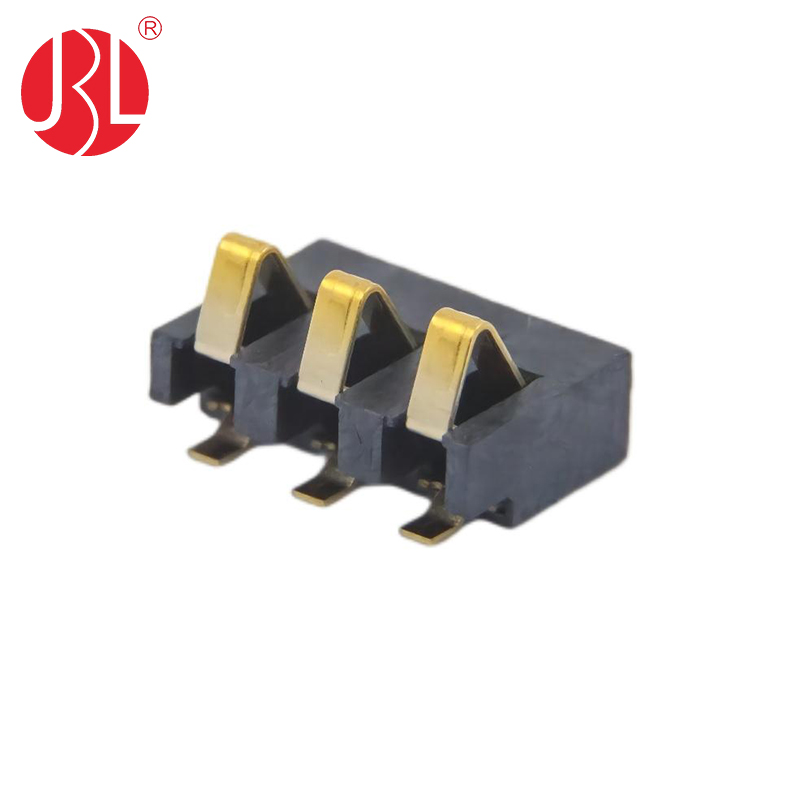

BC-35-3P Series 2.5mm Pitch Spring Battery Connector 3Pin SMT

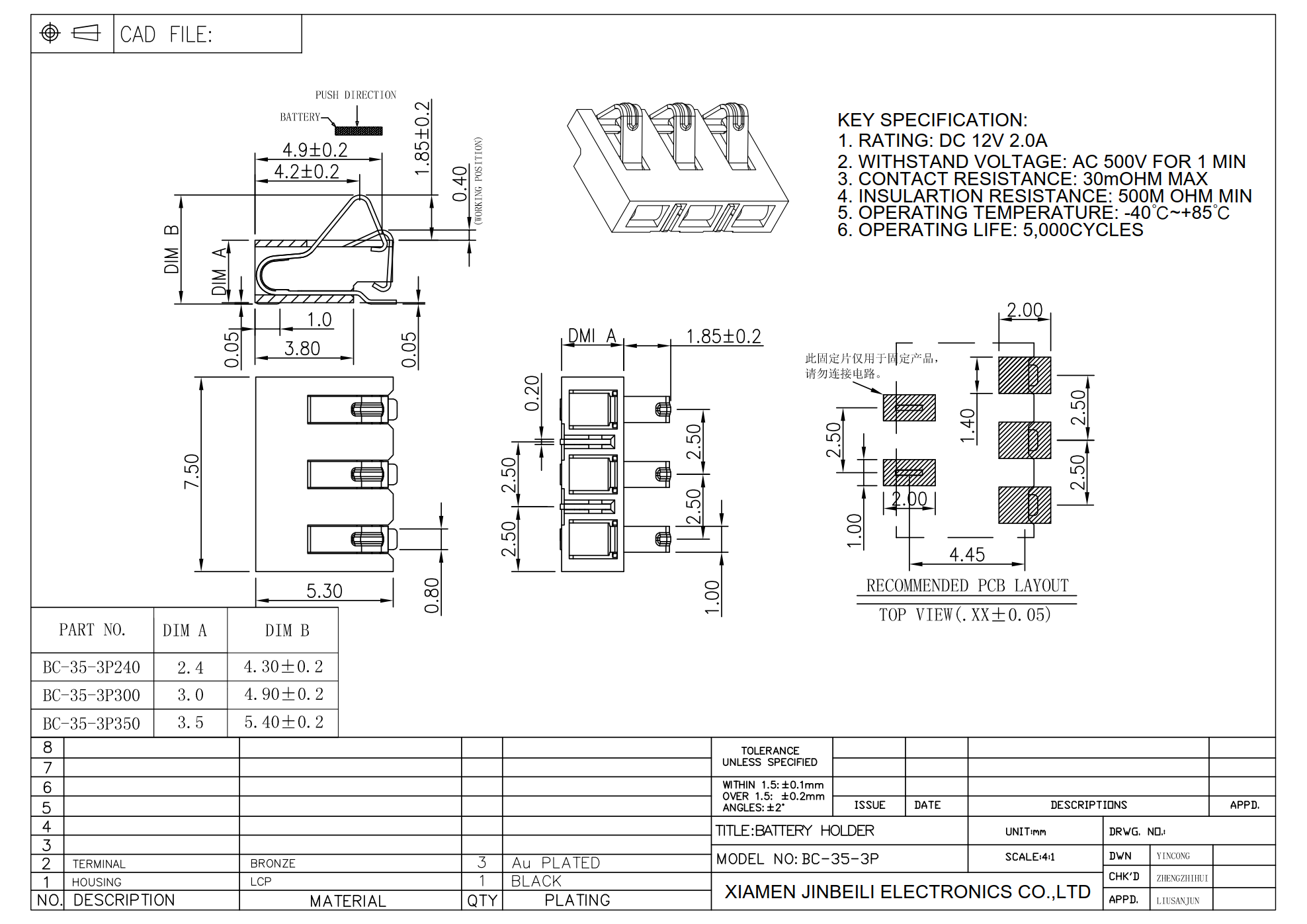

The Spring Battery Contact Connector is a versatile and reliable component designed for surface mount applications. This connector features a 2.5mm pitch and three positions, making it suitable for connecting batteries and other electronic devices with multiple contacts. The housing height options of 2.4mm, 3.0mm, and 3.5mm offer flexibility in design and installation, while the contact height options of 4.3mm, 4.9mm, and 5.4mm provide additional customization.

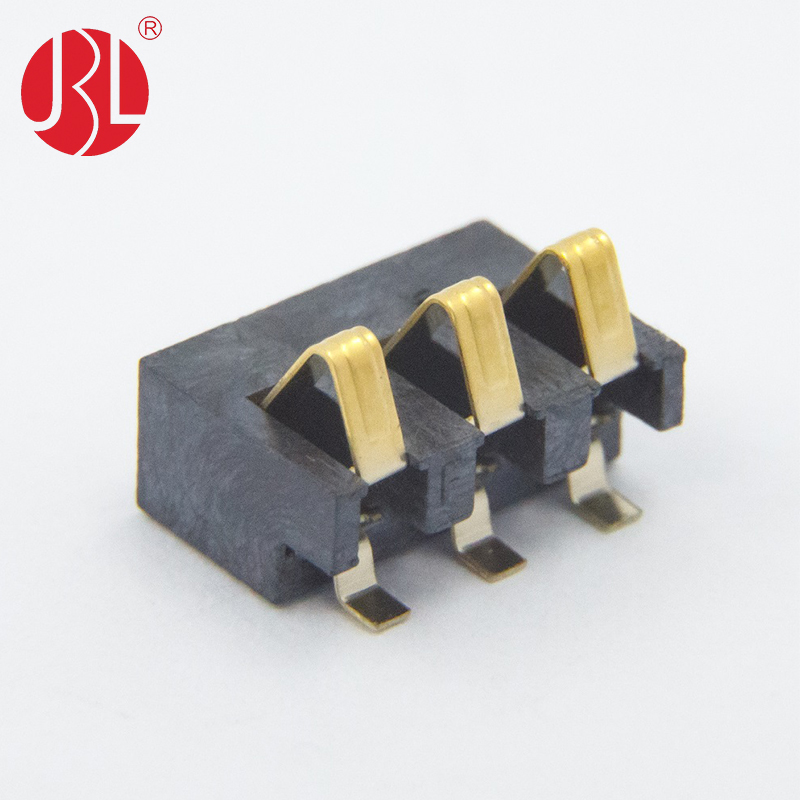

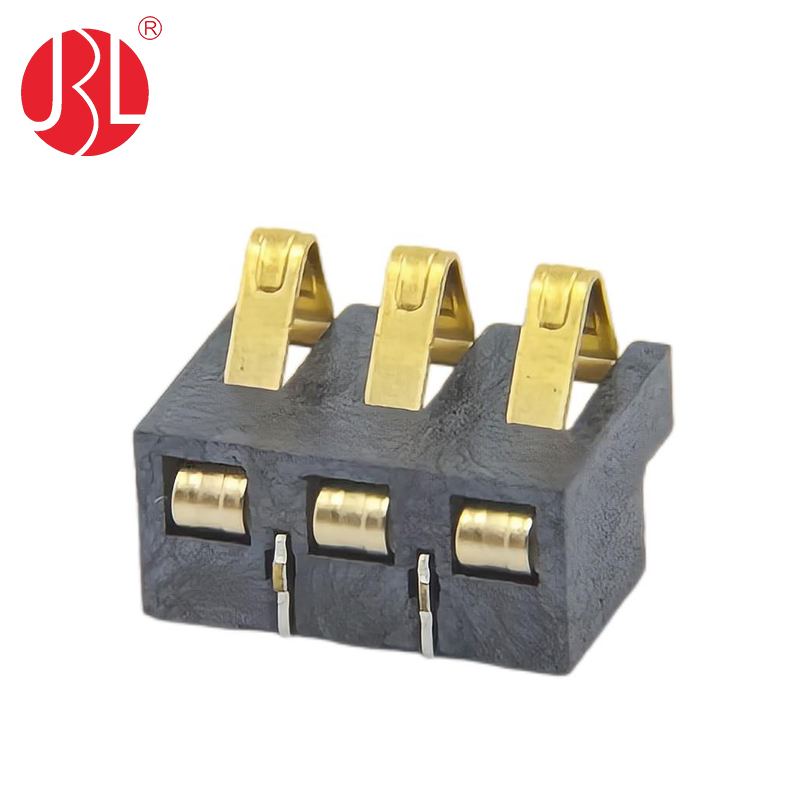

Rated for DC12V 2A, this connector can handle moderate power requirements and is compatible with a wide range of electronic devices. The variants BC-35-3P240, BC-35-3P300, and BC-35-3P350 correspond to the different housing heights available, ensuring compatibility with various devices and configurations.

Overall, this spring battery contact connector is a robust and efficient solution for connecting batteries and other electronic components. Its compact design, versatility, and reliability make it an ideal choice for a wide range of applications, including consumer electronics, industrial equipment, and automotive systems.
