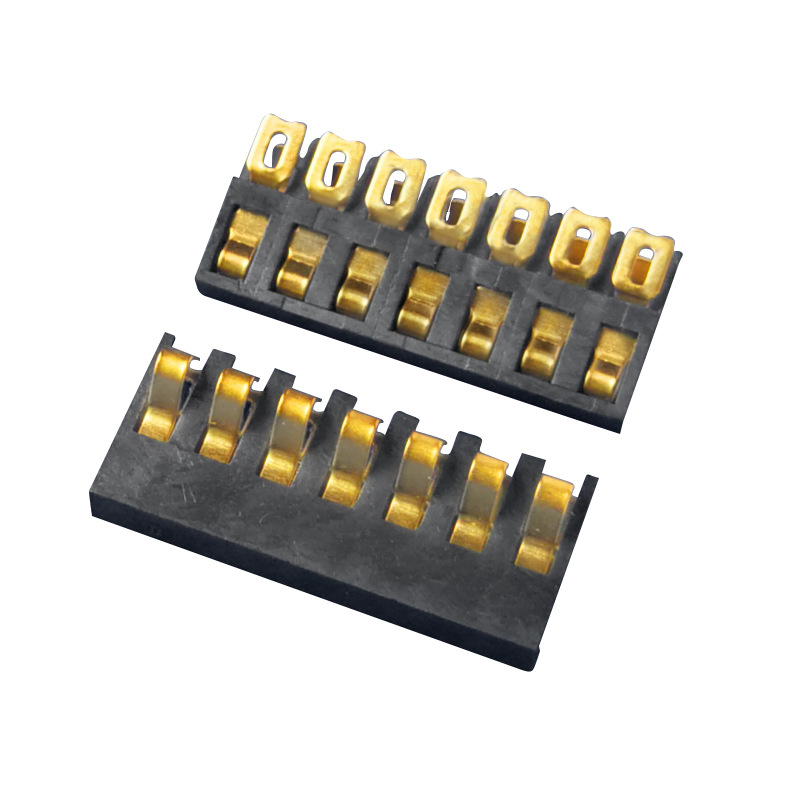

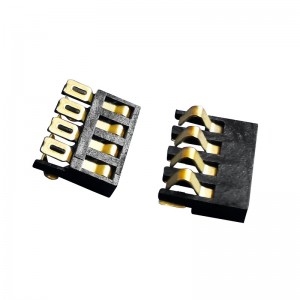

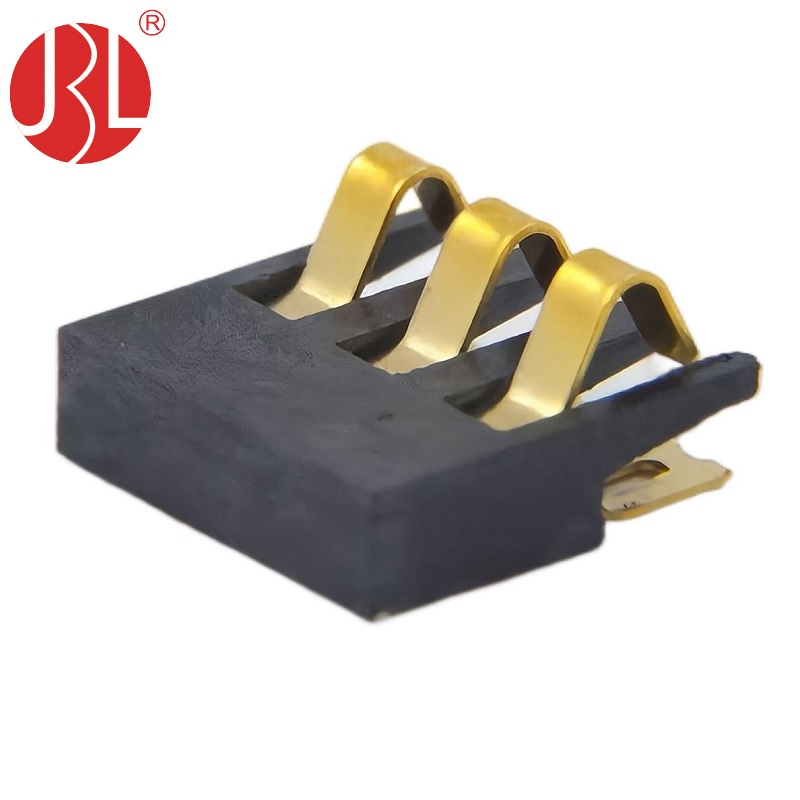

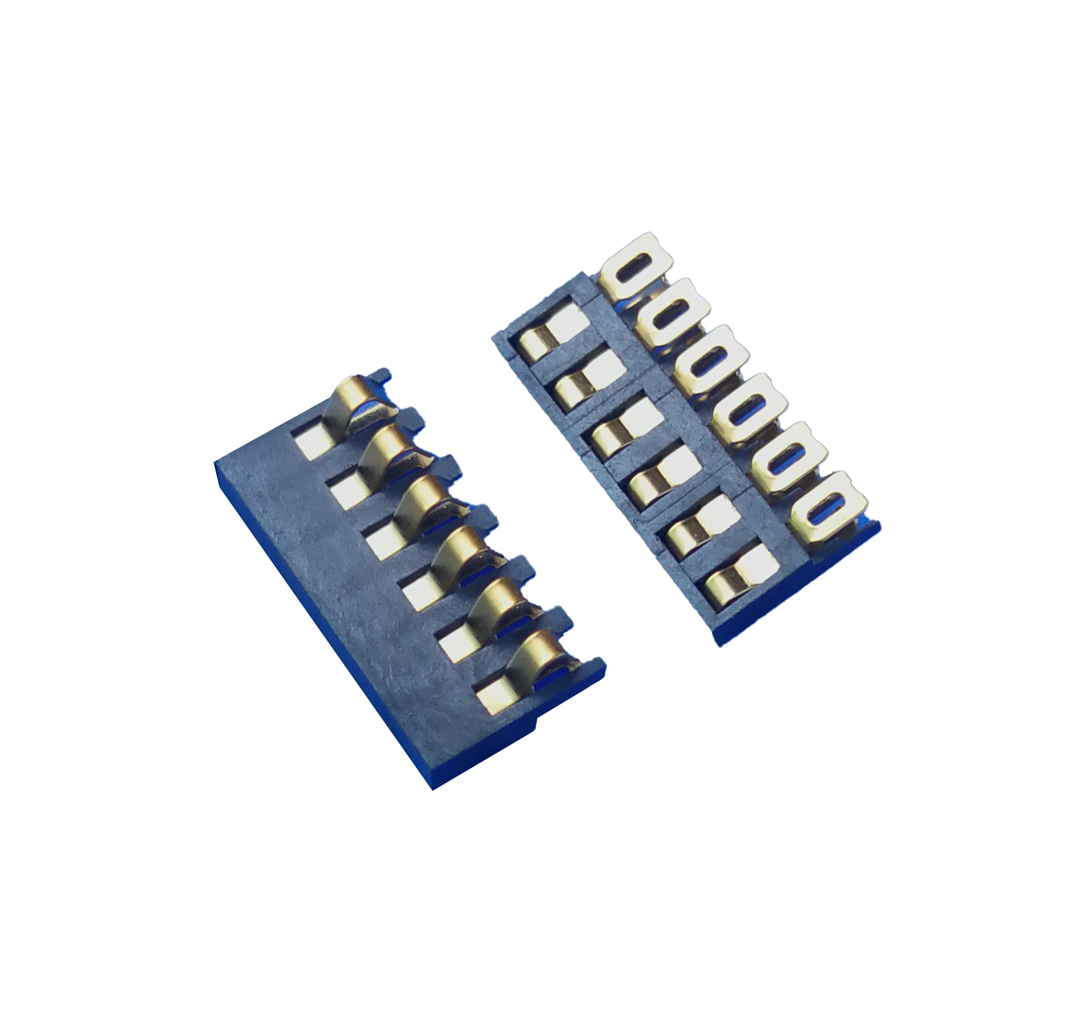

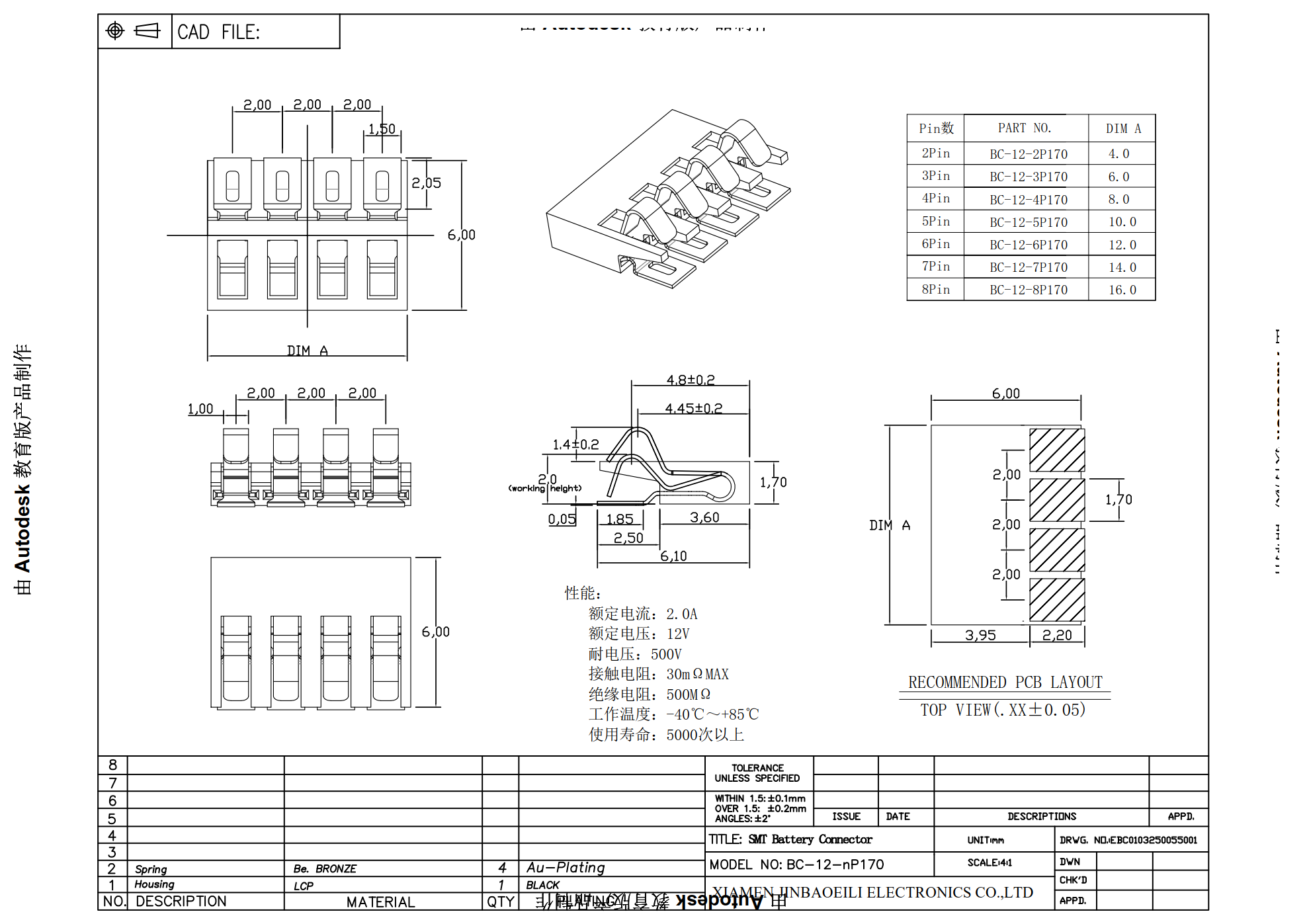

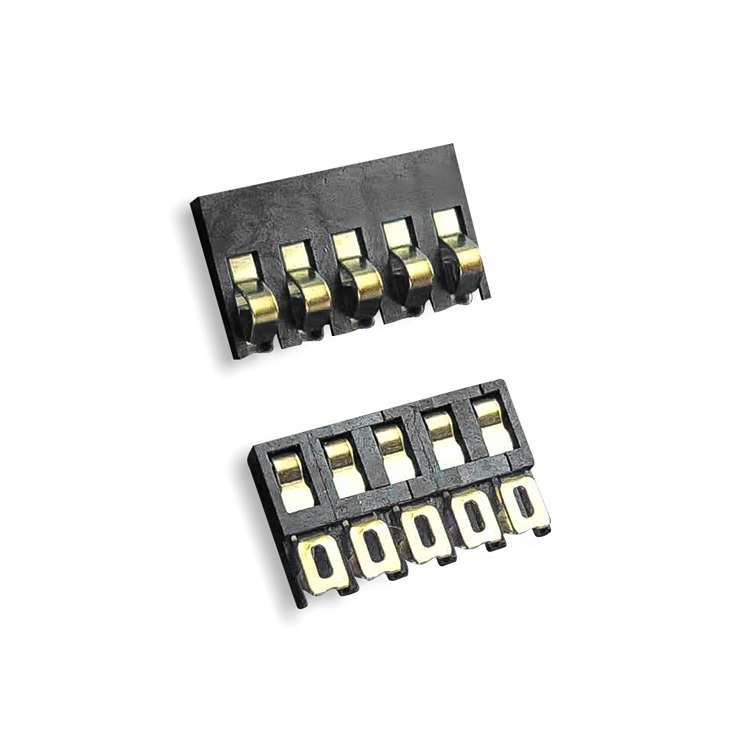

BC-12 Series 2.0mm Pitch Spring Battery Connector SMT
-
-
-
-
-
-
Spring Battery Contact – SMT Vertical Type
Our spring battery contact is designed for precision and reliability in electronic assemblies. This component features a 2.0mm pitch and is designed for Surface-Mount Technology (SMT) applications, offering a vertical orientation for space-efficient integration.
Key Specifications:
- Pitch: 2.0mm
- Contact Height: 2.0mm
- Housing Material: Liquid Crystal Polymer (LCP)
- Housing Height: 1.7mm
- Contact Numbers: Available in 2-pin, 3-pin, 4-pin, 5-pin, 6-pin, 7-pin, and 8-pin configurations
Features:
- Precision Engineering: Ensures stable and reliable electrical connections.
- Durable Material: Constructed from high-quality LCP to withstand demanding environments.
- Versatile Pin Configurations: Provides flexibility to accommodate various design requirements.
Ideal for battery connections in compact electronic devices, this spring battery contact ensures optimal performance and durability. Its low-profile design and precise pitch make it suitable for modern electronic assemblies where space and efficiency are critical.
Previous:
PJ-301HM Panel Mount Mono Jack 3.5mm
Next:
BT-55-nPD 2.0mm Pitch Blade Type Power Connector Female Surface Mount
2.0 spring battery connector spring battery contact 2.0mmm pitch
