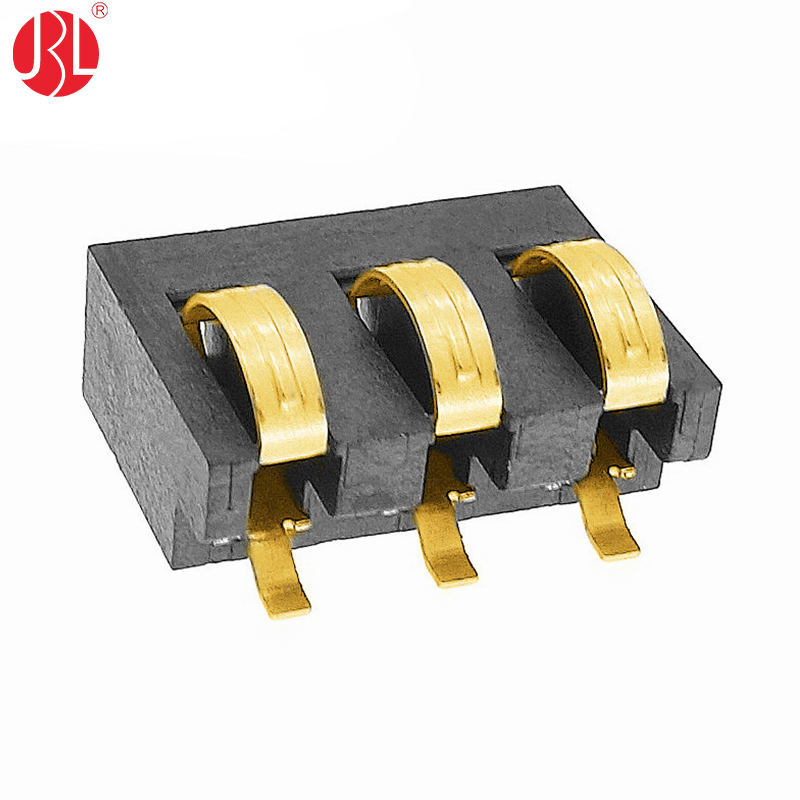

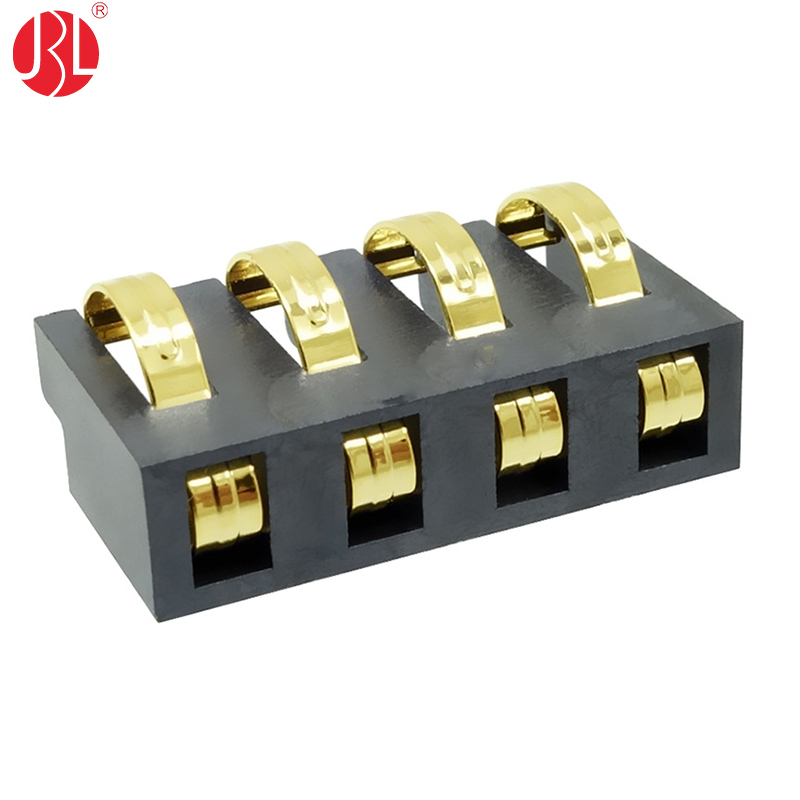

BTR-40-nPD430 4.0mm Pitch Spring Battery Connector Surface Mount

Short Description:

4.0mm Pitch Spring Battery Connector Contact Surface Mount Vertical


  • Item: Spring Battery Connector
  • Pitch: 4.0mm
  • Gender: Male / Header
  • Mounting: Surface Mount
  • Working Height: 6.0mm
  • Insulation Height: 4.3mm

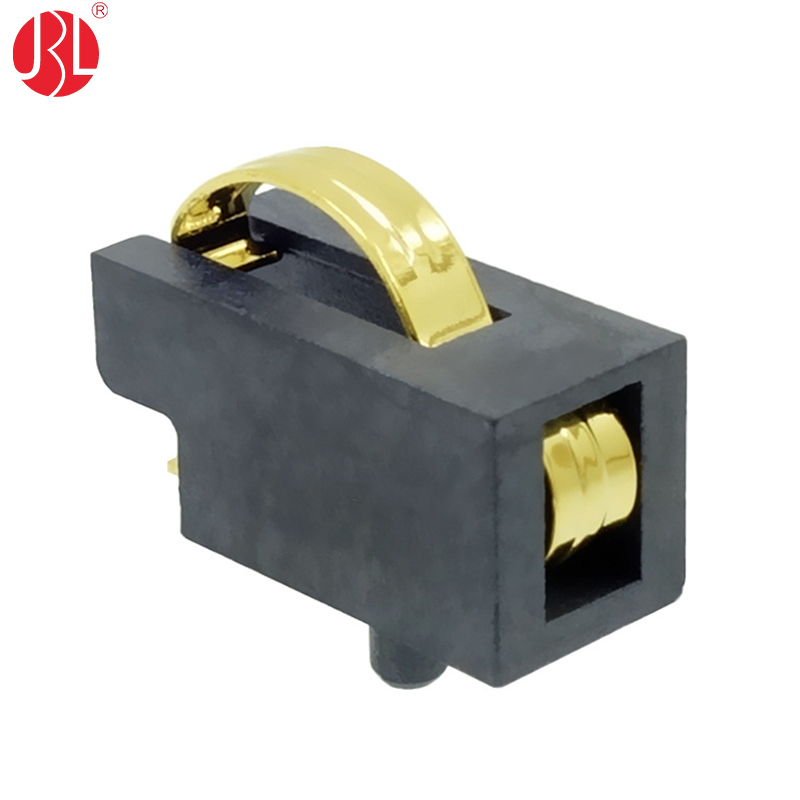

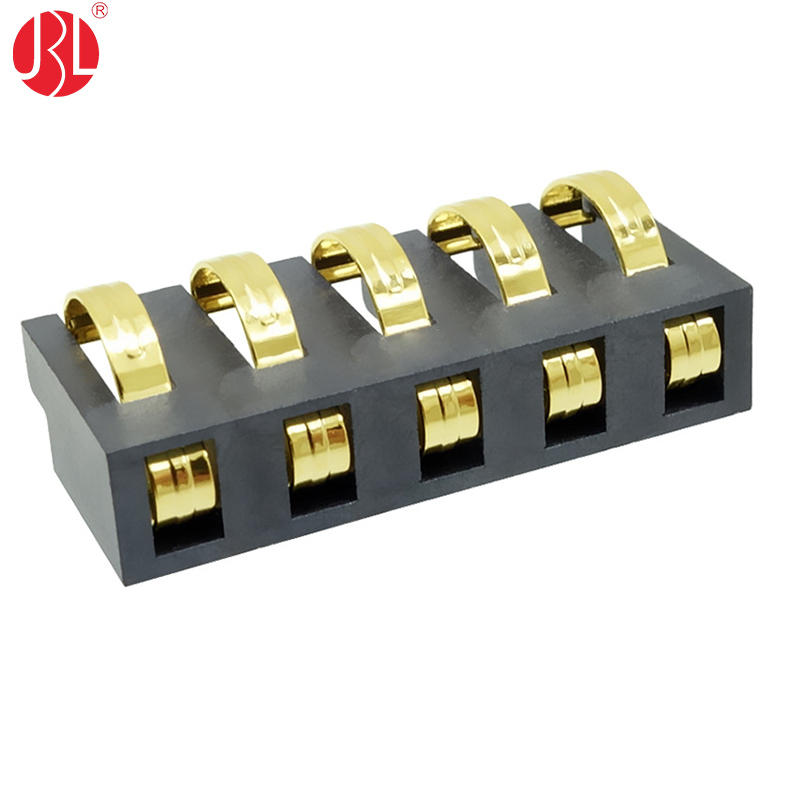

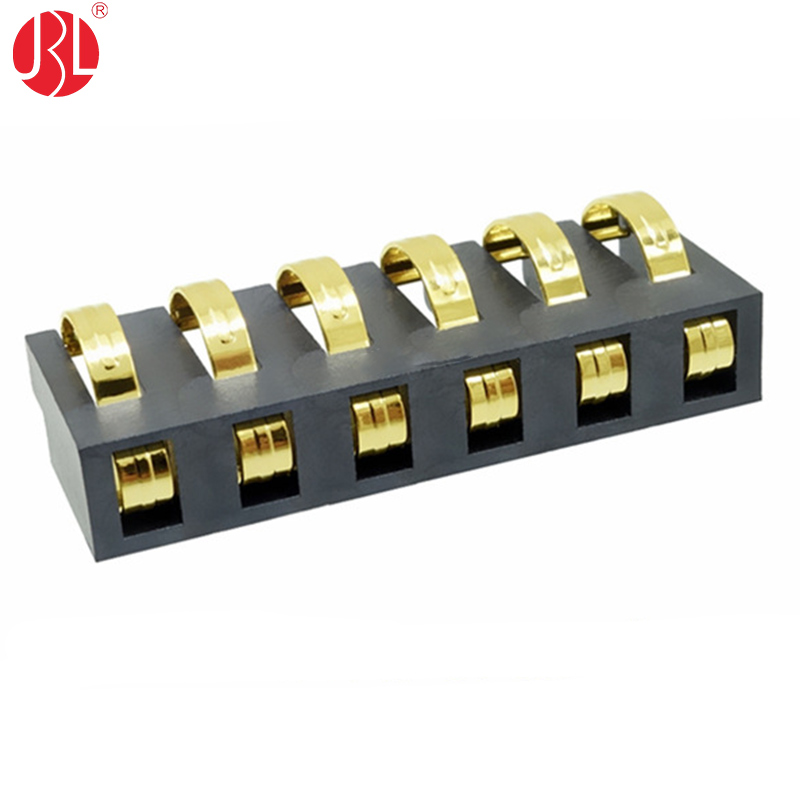

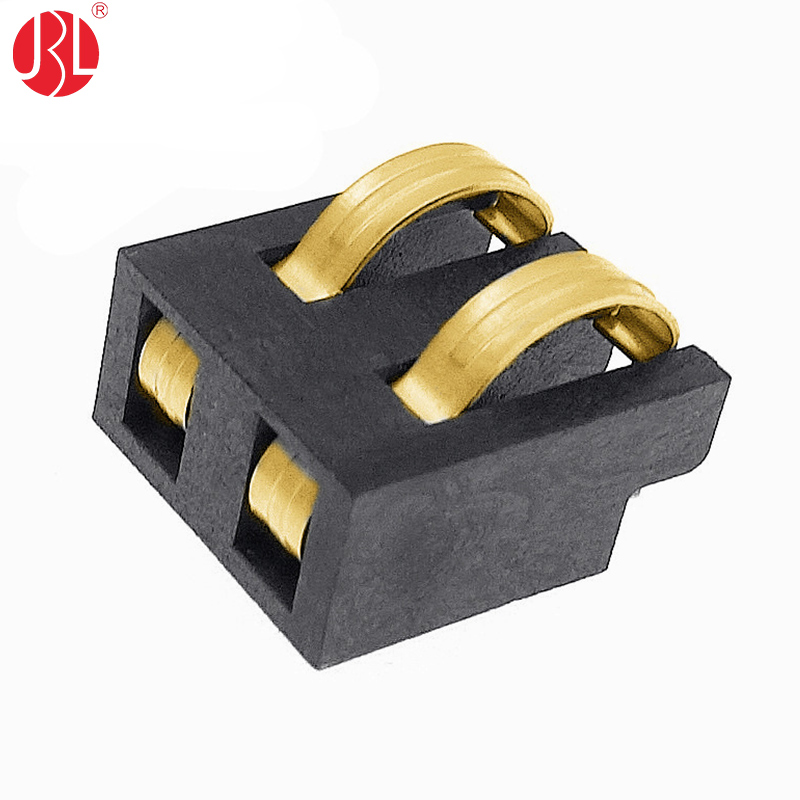

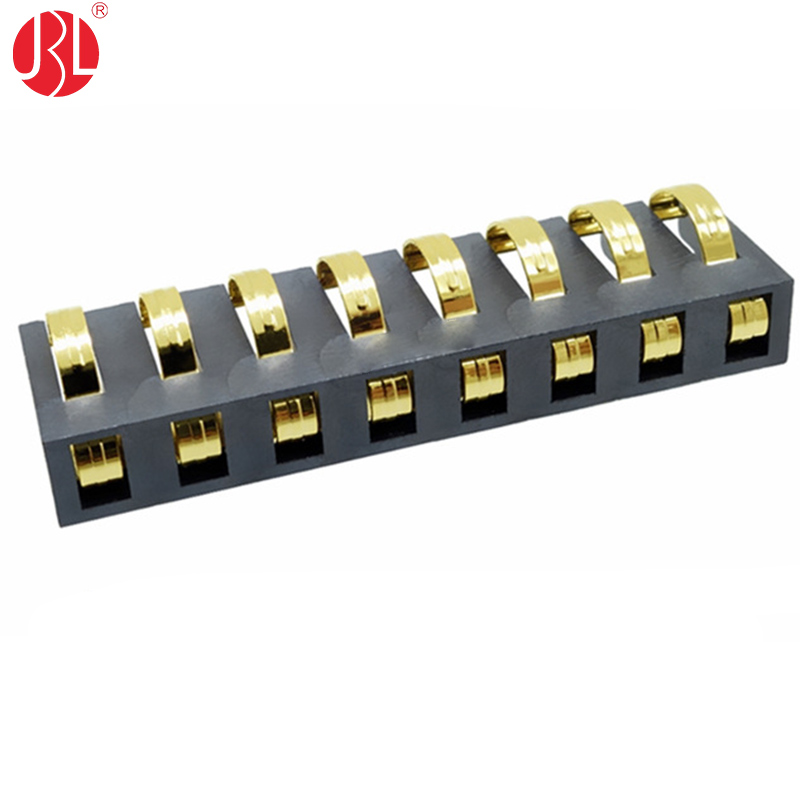

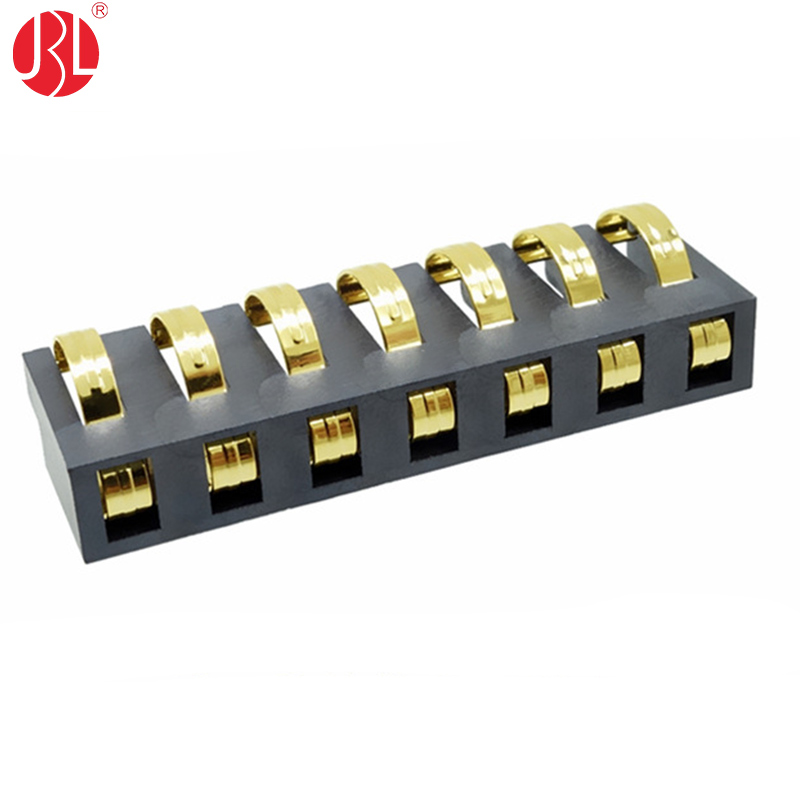

  • Positions Numbers Options: 1way 2way 3way 4way 5way 6way 7way 8way
  • Power Rated: DC24V 3A
  • Product Detail

    Product Tags


    Our spring battery connector offers a reliable and efficient solution for battery contact applications. Featuring a 4.0mm pitch and vertical surface mount design, this connector ensures secure battery connections while optimizing PCB space utilization. Available in 1-way to 8-way configurations, it provides flexible options for various battery connection requirements.

    The connector features a 6.0mm working height, designed to maintain consistent contact pressure for stable electrical performance. Constructed with LCP (Liquid Crystal Polymer) insulation housing (4.3mm height), it delivers excellent heat resistance, dimensional stability, and mechanical durability in demanding environments. Rated for DC 24V 3A, this connector is ideal for portable electronics, medical devices, IoT equipment, and low-power battery applications.

    Key Features:

    Spring contact design for reliable battery connection

    4.0mm pitch, vertical SMT mounting

    1-way to 8-way position options

    6.0mm working height for optimal contact

    LCP housing (4.3mm height) with high temperature resistance

    Rated DC 24V 3A power transmission

    Compact and space-saving design

    Manufactured with precision engineering, this spring battery connector ensures long cycle life, stable contact resistance, and vibration resistance. The surface mount design enables efficient automated assembly, making it suitable for high-volume production.

    Ideal for consumer electronics, power banks, and small battery-powered devices, this connector provides durable and maintenance-free battery connectivity. Custom configurations are available to meet specific application requirements.

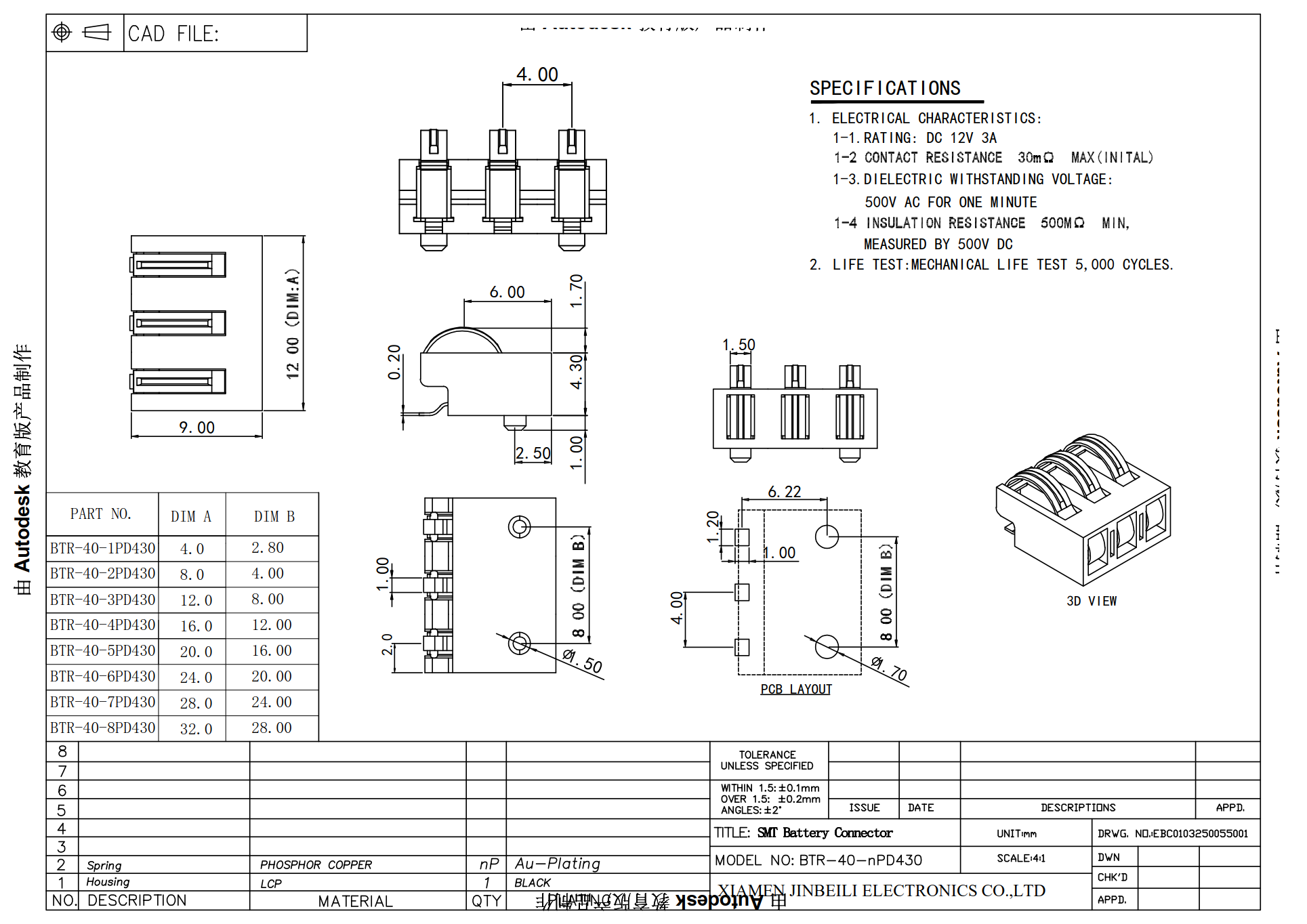

    BTR-40-nPD430_1www.jbl-ec.com
