This component is a 10-position USB Mini B Female connector socket, a specialized interface that builds upon the classic 5-pin standard. While the standard Mini-B has 5 pins for basic USB 2.0 data and power, this 10-pin variant includes additional connections. These extra pins are typically used for functionalities like USB On-The-Go (OTG), which allows a device to act as either a host or a peripheral, or for carrying additional signals such as audio or device-specific data alongside the standard USB bus.

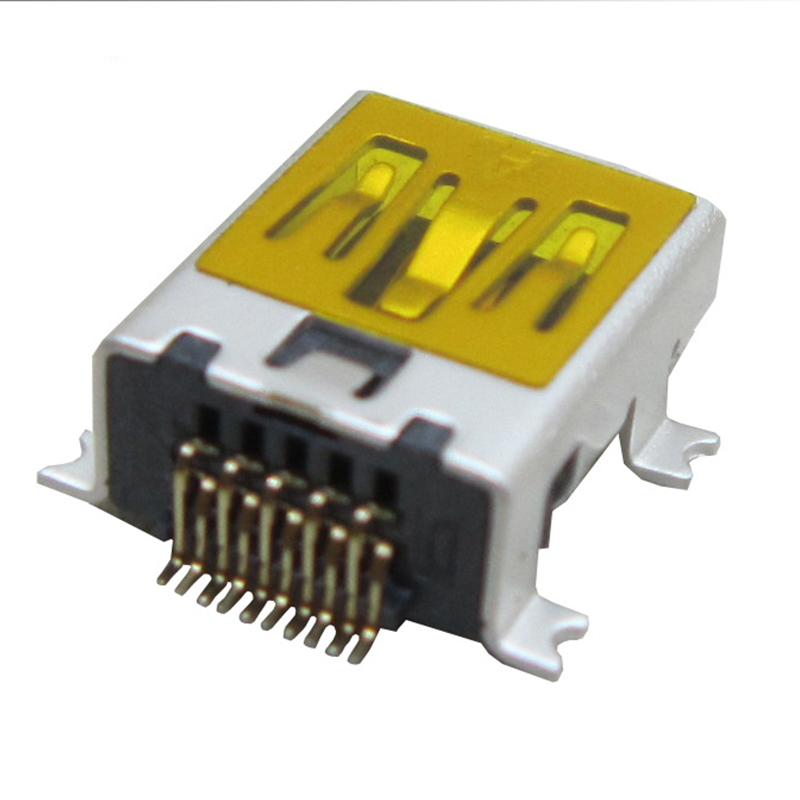

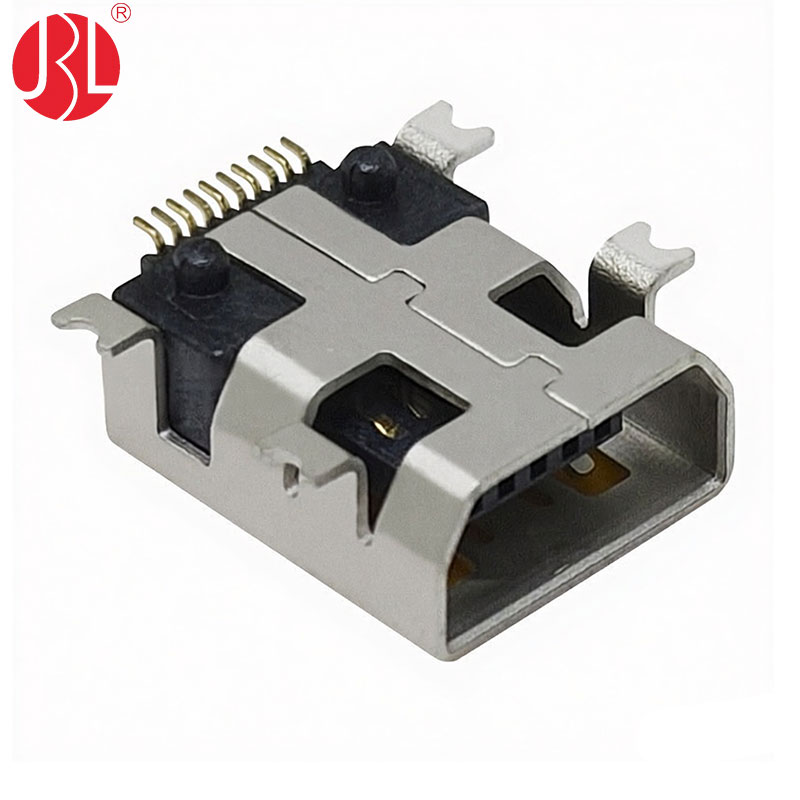

The connector is designed for surface-mount (SMT) assembly and features a crucial right-angle orientation. This design directs the connected cable parallel to the printed circuit board (PCB), dramatically saving vertical space within slim devices like older digital cameras, external hard drives, and handheld test equipment. For superior mechanical integrity, it incorporates two robust board guide pins. These guides ensure perfect alignment during automated PCB assembly and, critically, anchor the connector to withstand the repeated insertion and withdrawal forces of daily use, preventing solder joint failure.

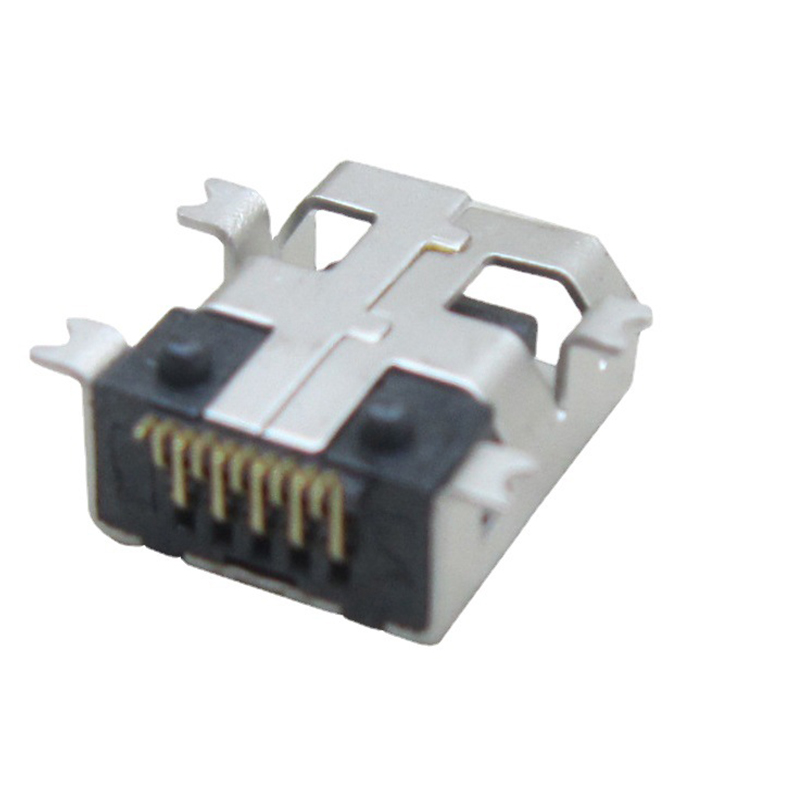

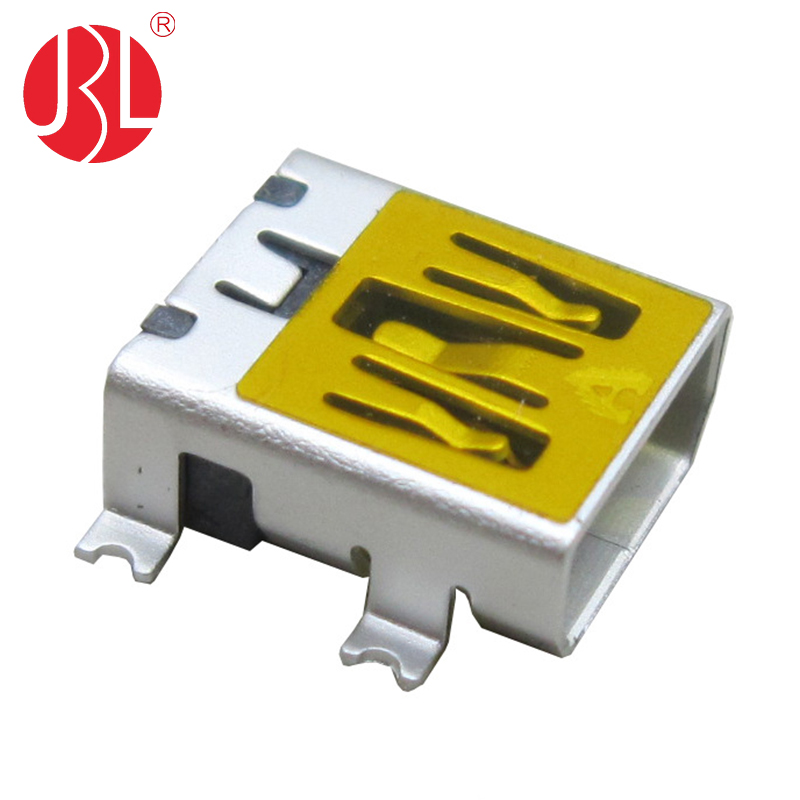

Often cataloged under the legacy industry name Philips USB Mini B Jack, this socket is recognized by its trapezoidal metal shielding and a central plastic tongue. Although newer formats have largely superseded it, this 10-pin version remains essential for maintaining, repairing, or designing compatible systems where its extended functionality is required.
