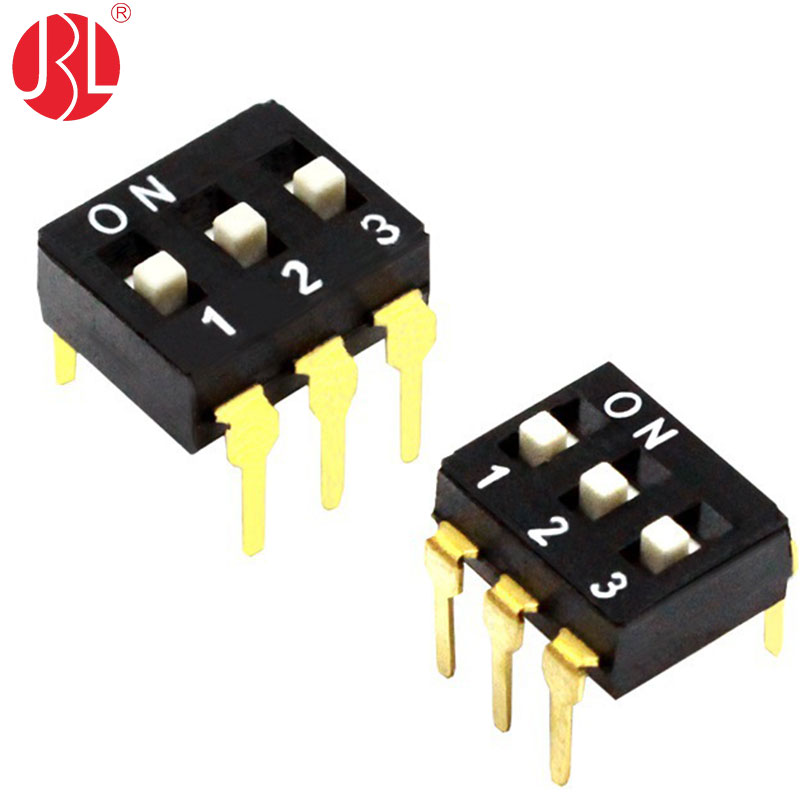

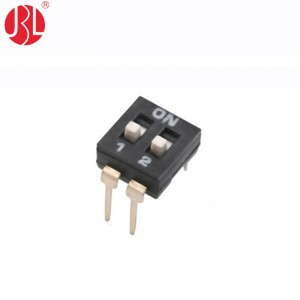

This DIP (Dual In-line Package) switch series is a highly versatile and robust through-hole component designed for reliable manual configuration across a diverse spectrum of electronic systems. Engineered for durability and ease of use, it features intuitive slide actuators with a raised profile. This design provides a positive tactile feel for each setting while elevating the actuators for easy finger access and immediate visual confirmation of position, minimizing the risk of accidental or erroneous adjustments during operation or maintenance.

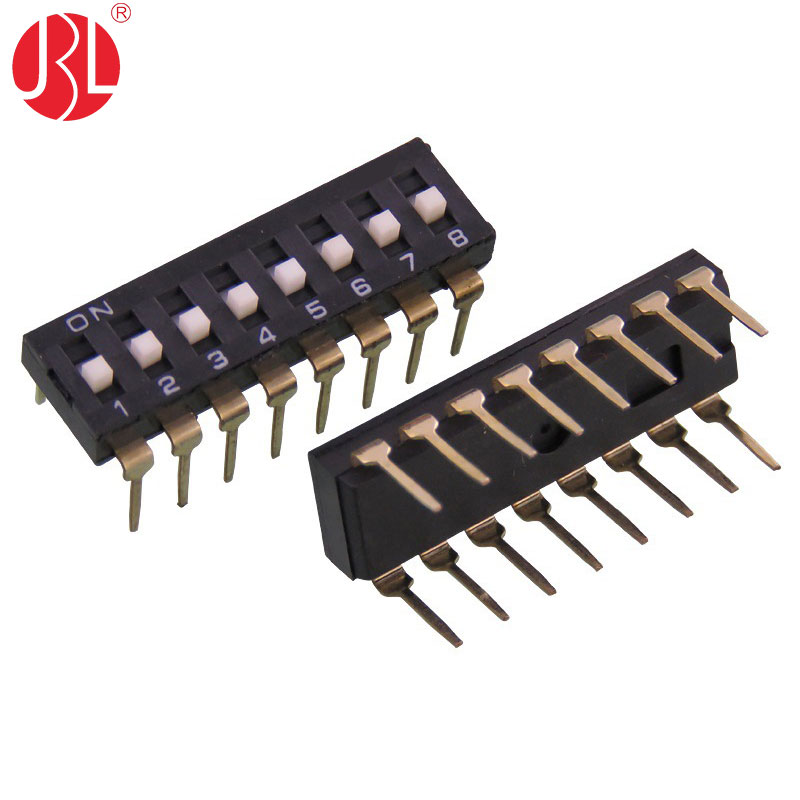

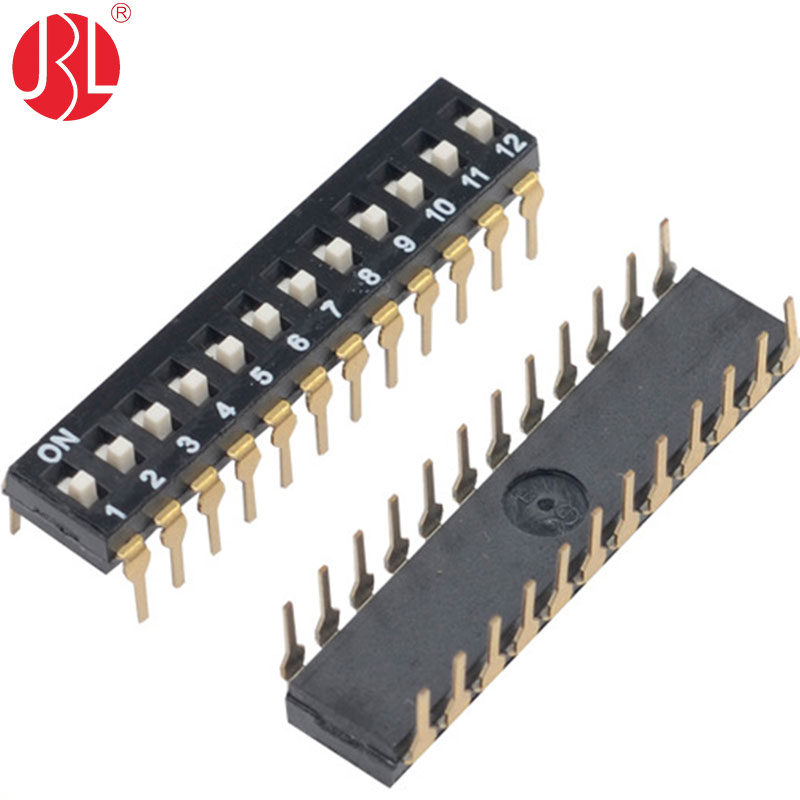

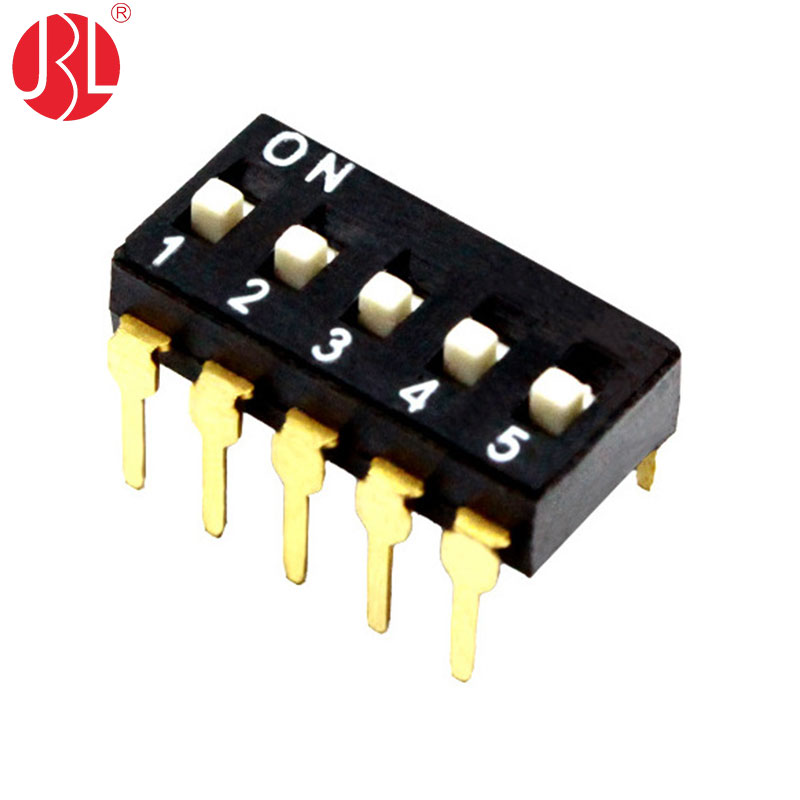

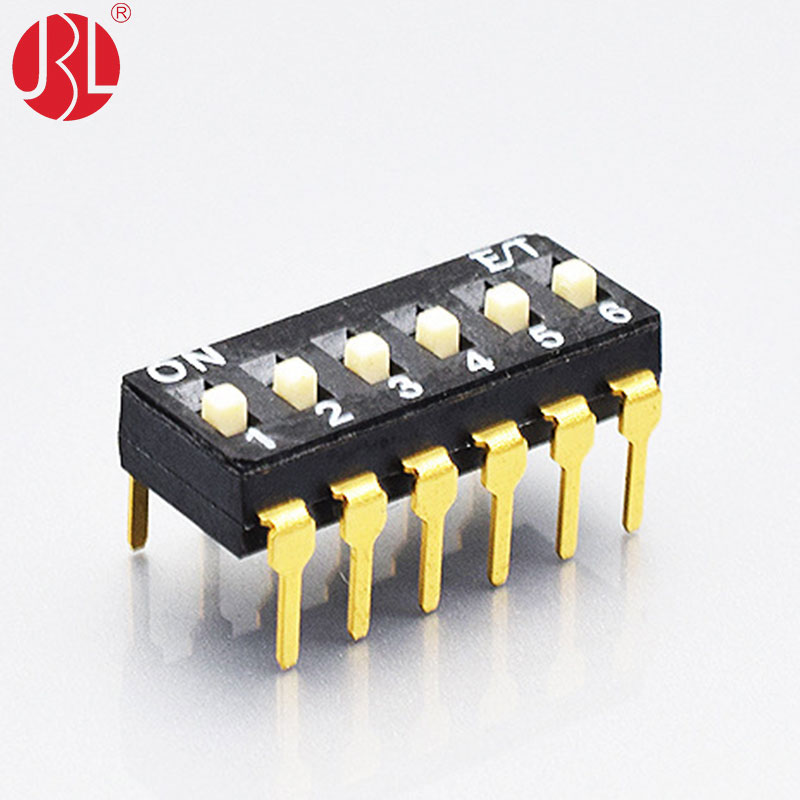

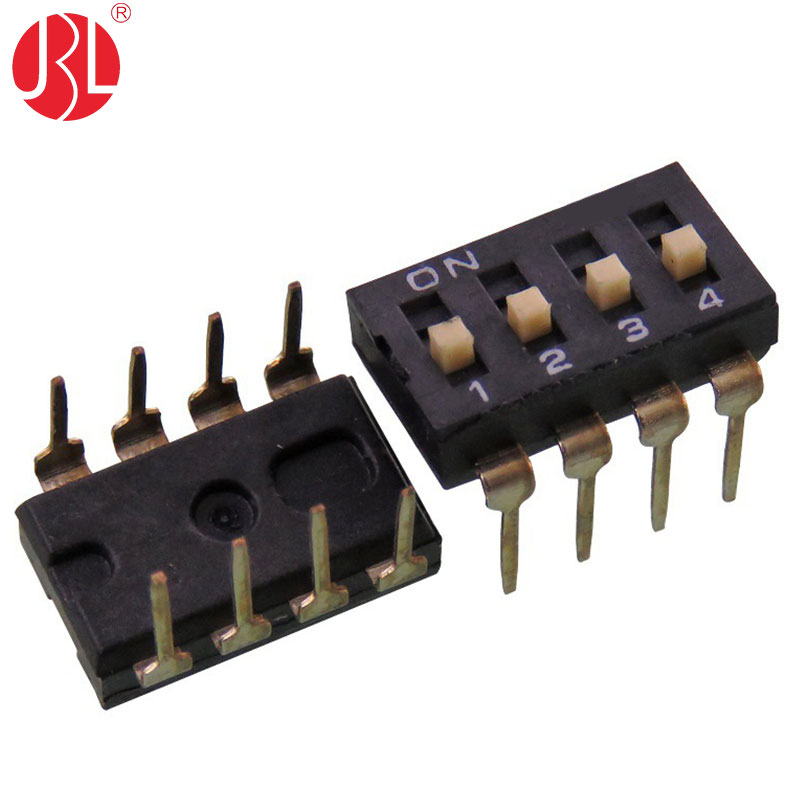

Built to the universal 2.54mm (0.1″) pin pitch, it ensures perfect compatibility with standard PCB layouts and prototyping boards. Each switch is a SPST (Single-Pole, Single-Throw) device, offering straightforward on/off control for individual circuit paths. The traditional through-hole mounting provides a strong mechanical bond and excellent solder joint reliability, making it ideal for applications subject to vibration or long-term use. Available in a comprehensive range from 1 to 12 positions, it offers unmatched flexibility, from simple single-function control to complex multi-bit addressing.

Rated for DC 24V at 25mA, this switch is perfectly suited for low-power configuration tasks. Its reliability makes it an excellent choice for critical and everyday applications, including setting addresses on industrial equipment and PLCs, configuring jumpers on PC expansion cards and motherboards, programming codes for garage door openers and remote controls, and enabling test modes or address selection in fire alarm control panels and security systems.

Manufactured to precise industry-standard dimensions, this series serves as a direct, drop-in replacement for leading components. It offers excellent compatibility with the Same Sky DS04-254 series (e.g., DS04-254-1L-01BK through DS04-254-1L-12BK) and the E-Switch KAE series (KAE01LAGT through KAE12LAGT). This cross-compatibility guarantees easy integration, simplifies sourcing, and provides a dependable, cost-effective solution for designers requiring a proven manual configuration interface.
