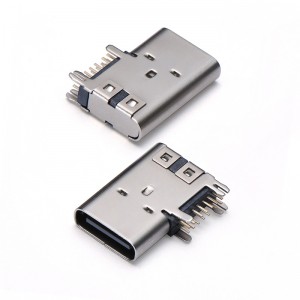

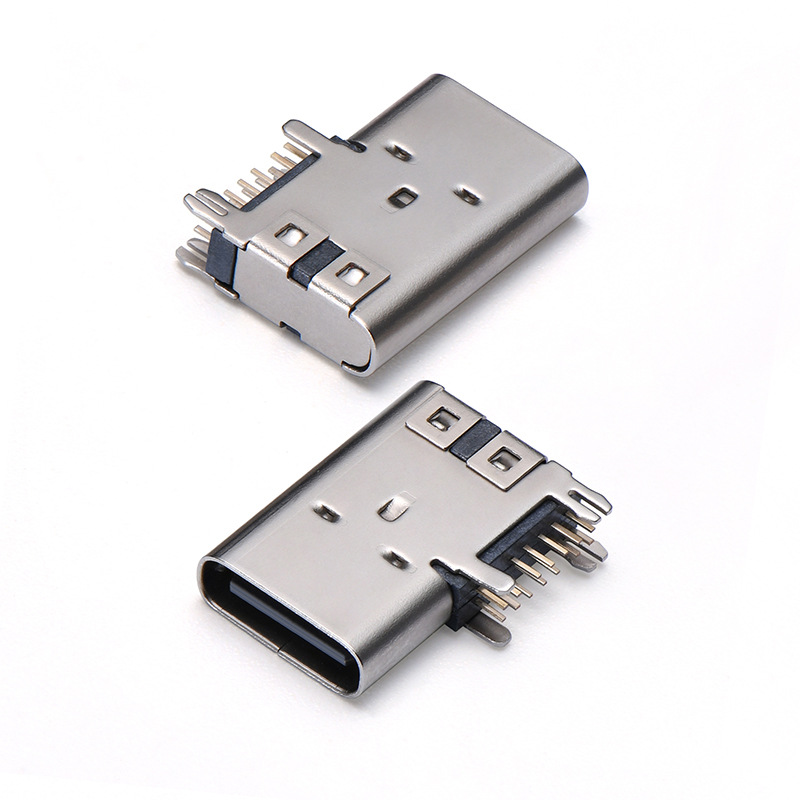

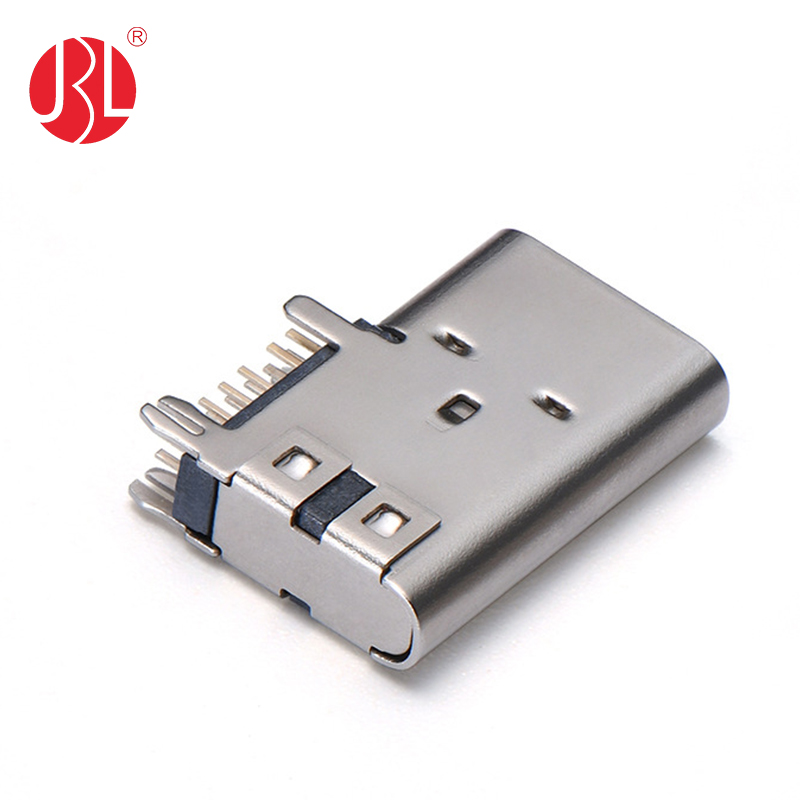

The USB-C Female Connector is a high-performance, upright-angle through-hole type receptacle designed for reliable data transfer and power delivery applications. Featuring 14 positions, this USB Type-C jack ensures secure and stable connectivity, supporting high-speed data transmission and efficient power handling. With a robust construction, it is rated for a maximum voltage of 24V DC and a current of 3A, making it suitable for a wide range of industrial, consumer electronics, and embedded systems.

The upright (90-degree) angle design allows for space-saving PCB integration, ideal for compact devices where efficient board layout is crucial. The through-hole mounting ensures strong mechanical stability, enhancing durability in demanding environments. The connector complies with USB Type-C specifications, supporting reversible plug orientation for user convenience.

This connector delivers performance on par with leading industry models such as the Molex 2169890001, Kycon KUSBX-SL-CS1N14-B, and Amphenol 12402054M611A, making it a cost-effective alternative without compromising quality

Packaged in trays, the USB-C jack is delivered in bulk quantities, ensuring safe handling and storage during production. Its gold-plated contacts provide excellent conductivity and corrosion resistance, ensuring long-term reliability. This connector is widely used in laptops, tablets, power adapters, docking stations, and other devices requiring fast charging and high-speed data transfer.

Key Features:

• USB Type-C Female, 14-position
• Upright angle (90°), through-hole mounting
• Supports 24V DC, 3A power delivery
• High-speed data transfer compatible
• Gold-plated contacts for enhanced durability
• Tray packaging for bulk handling
