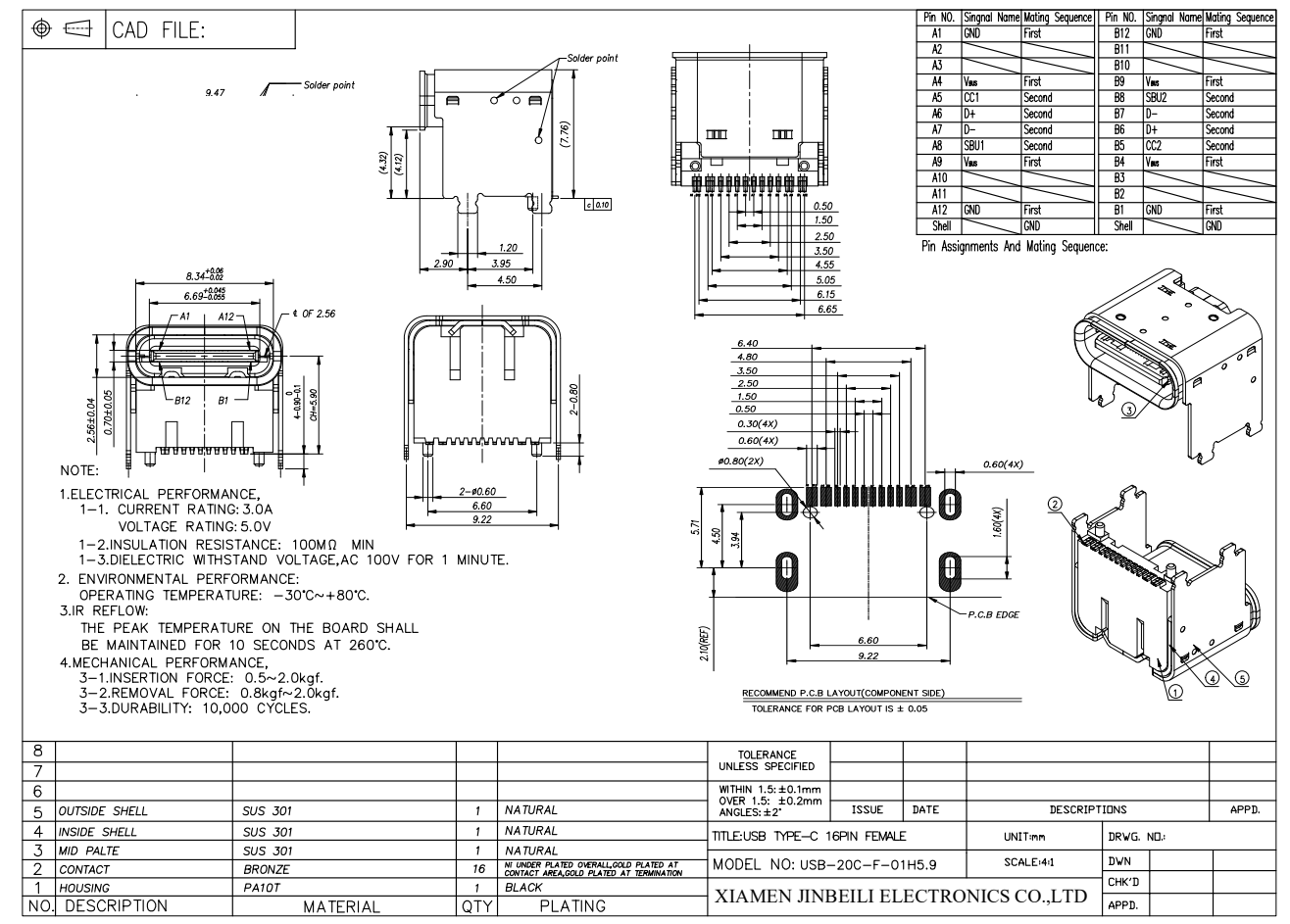

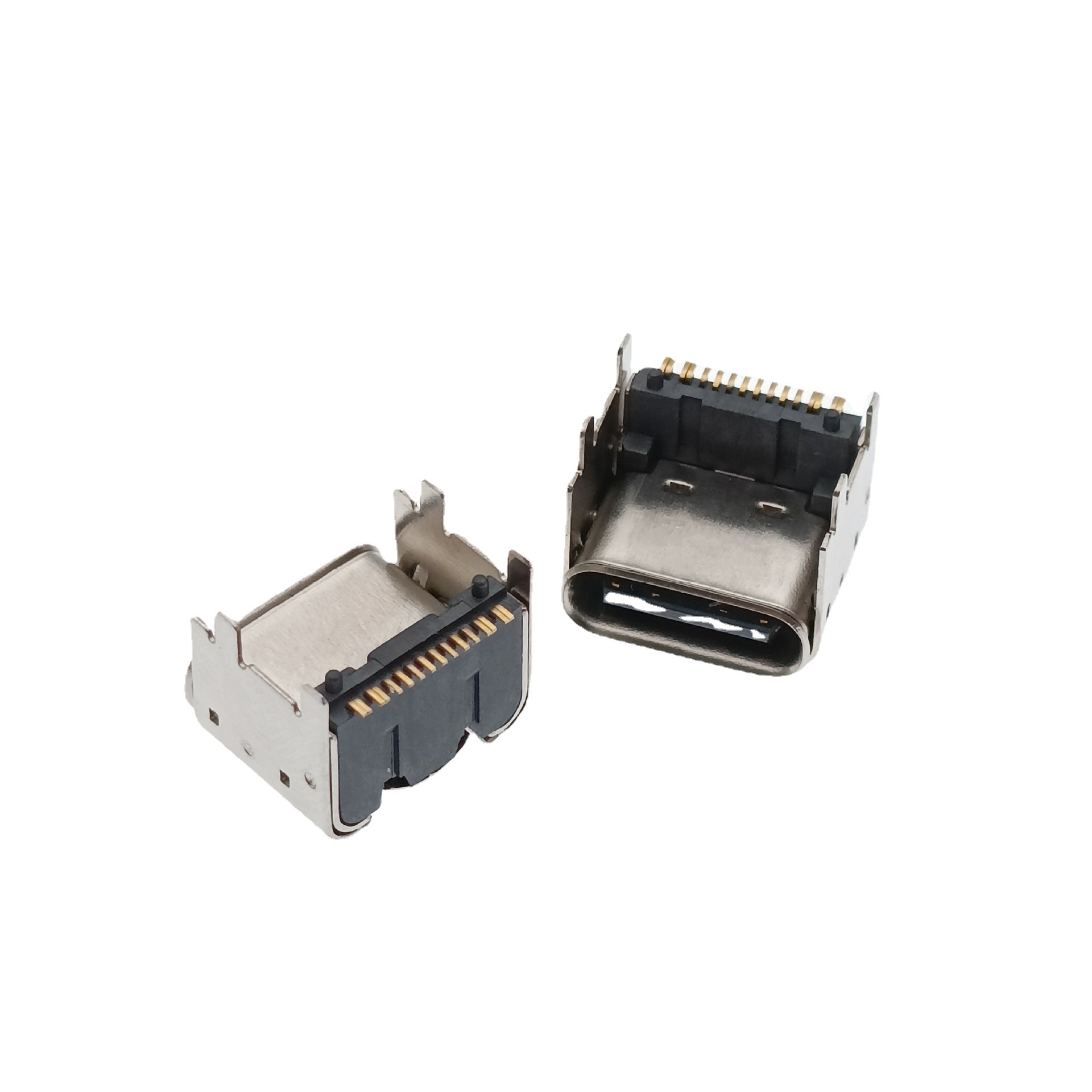

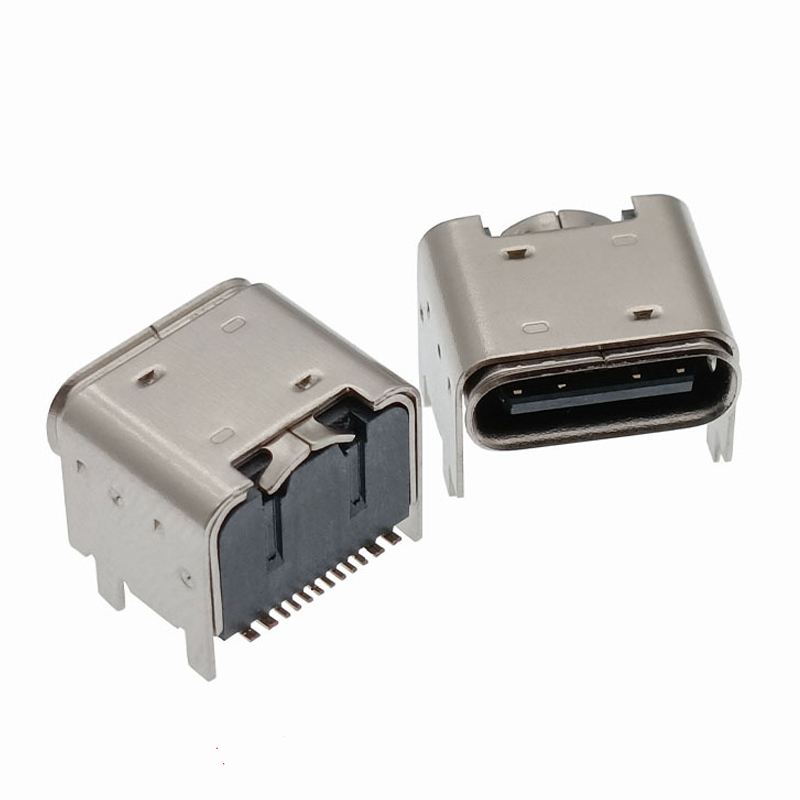

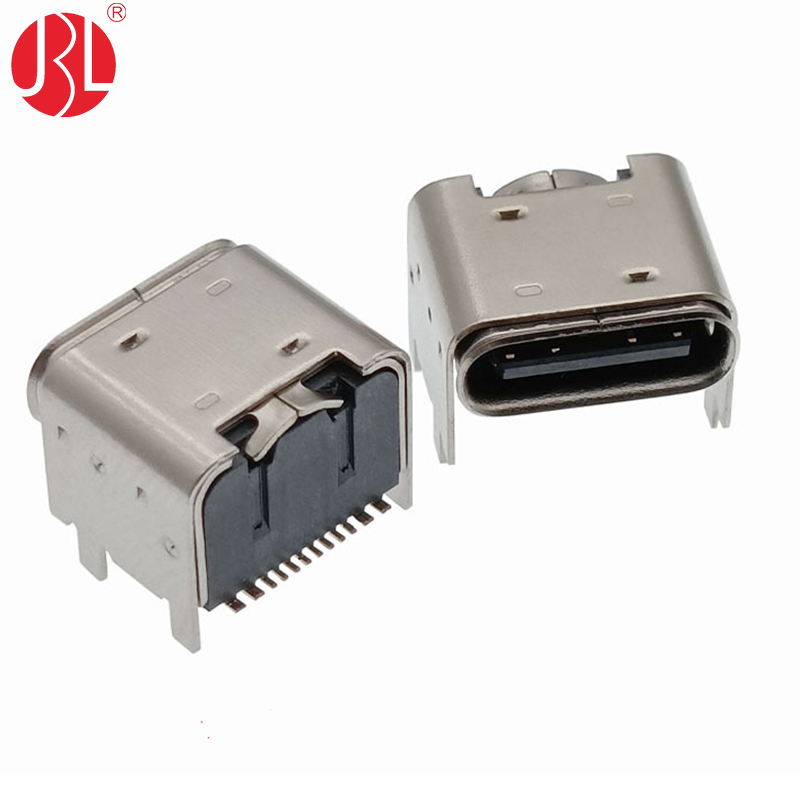

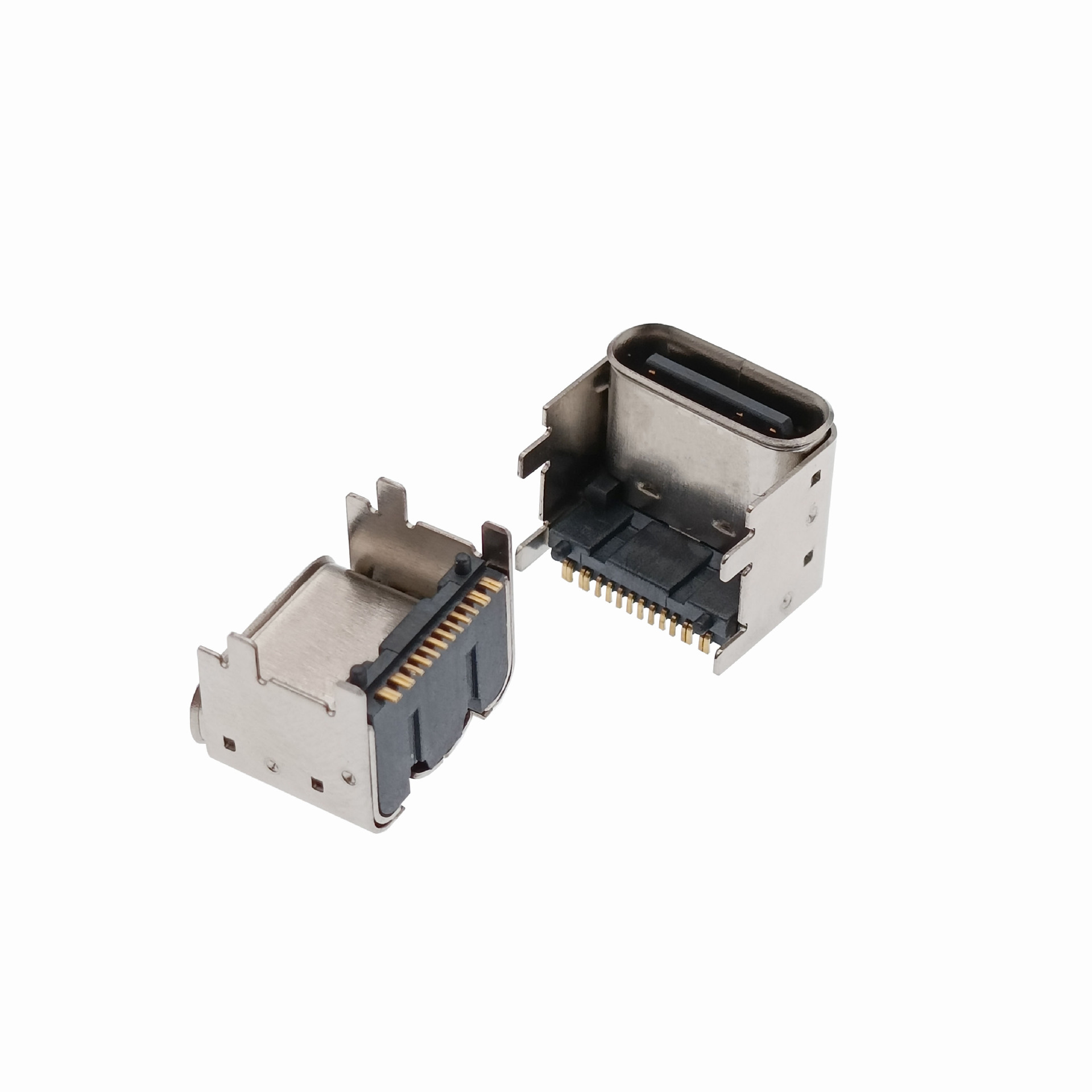

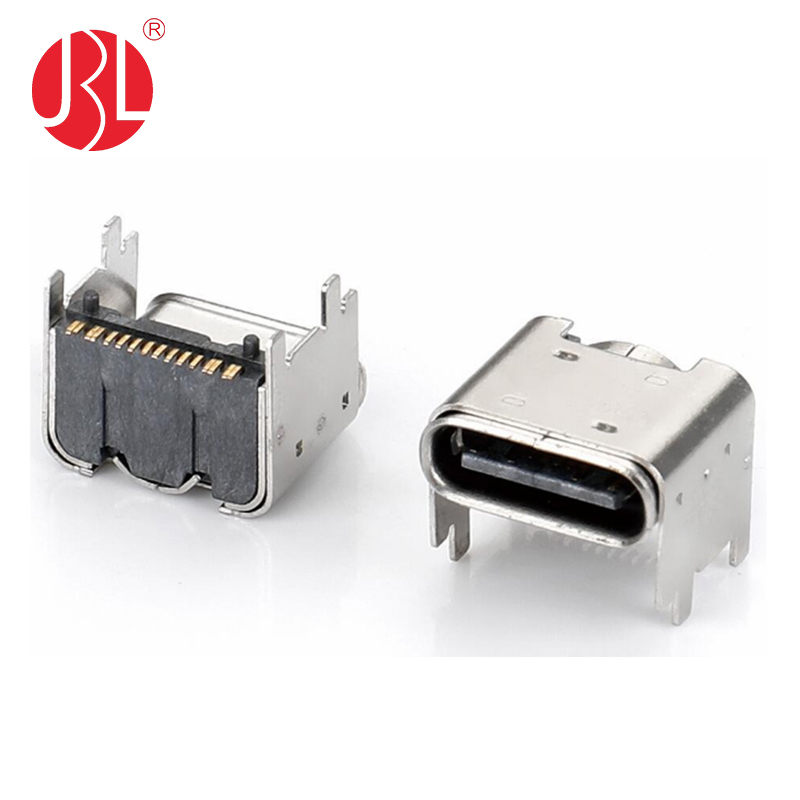

The USB Type-C Female Connector Jack is a 16-position, right-angle SMT/THT (surface mount & through-hole) receptacle, designed for high-speed data transfer and power delivery in compact electronic devices. With an extra-height design, it features a USB-C port center height of 5.9mm off the PCBA, making it ideal for thicker enclosures while maintaining a low-profile footprint.

This connector supports USB 3.1/3.2 Gen 1/2 (up to 10Gbps), Power Delivery (PD) up to 100W, and Alt Mode for DisplayPort/HDMI. Its hybrid SMT/THT mounting ensures strong mechanical stability, while the metal shell provides EMI shielding and durability. The right-angle orientation optimizes space efficiency in laptops, tablets, docking stations, and industrial equipment.

Engineered as a drop-in replacement for Molex 2171800001 (MJUB-44803CS1L1), GTC USB4800-03-A, and MUP-U20404, this USB-C connector ensures seamless compatibility in existing designs. The 16-pin configuration includes full signal integrity for VBUS, GND, CC, D+/D-, TX/RX pairs, and SBU lines, supporting high-speed data, fast charging, and video output.

Constructed with high-temperature-resistant materials, it withstands repeated mating cycles and harsh environments. Its 12mm body length and reinforced solder pads enhance reliability in high-vibration applications. Whether for consumer electronics, automotive systems, or industrial devices, this USB-C jack delivers robust performance, space-saving design, and broad compatibility.
