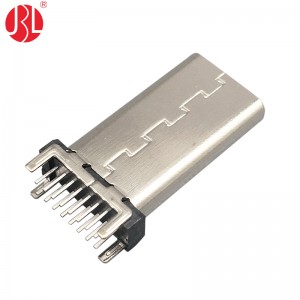

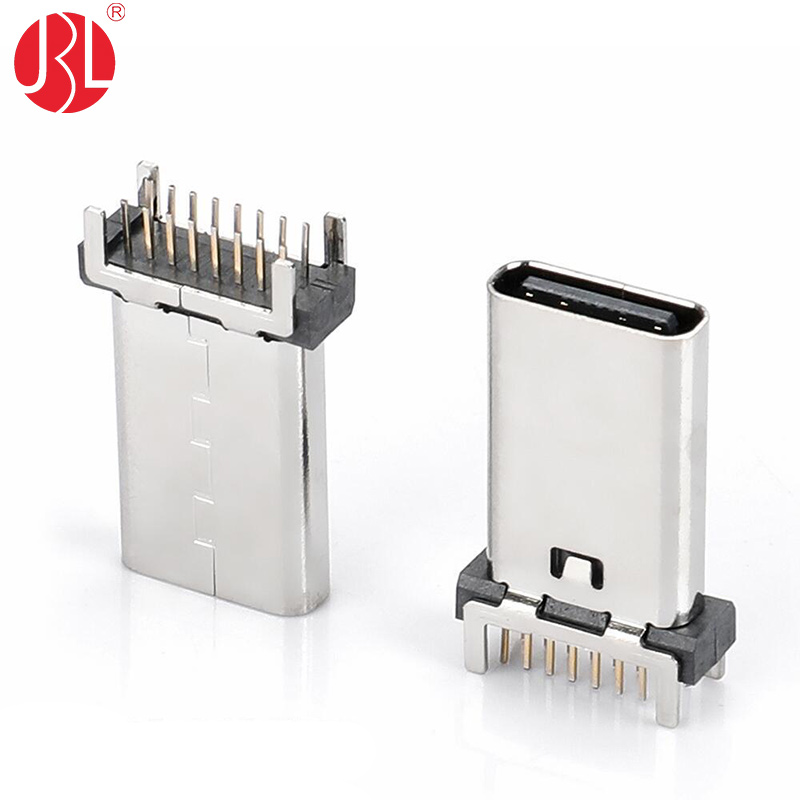

USB Type-C Female Connector Socket: Extra-Long Through-Hole Vertical Design

This USB Type-C Female Connector Socket is engineered for robust and versatile applications, featuring a 16-pin contact configuration that supports high-speed data transfer (USB 3.1/3.2 Gen 2) and rapid power delivery (up to 100W). Designed with a through-hole vertical mounting style, it ensures secure attachment to printed circuit boards (PCBs), ideal for industrial, automotive, or embedded systems requiring durable connections.

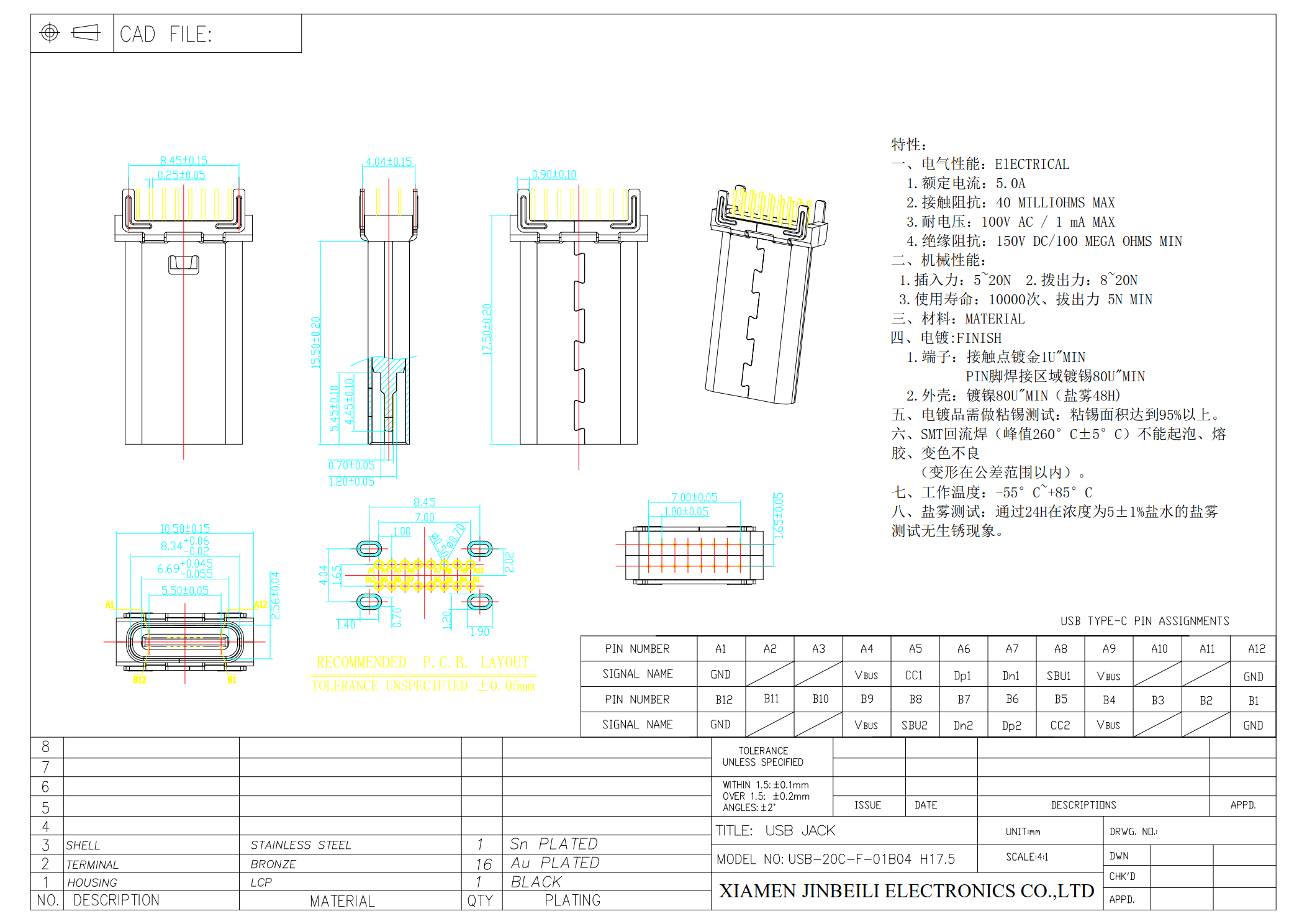

A standout feature is its extra-long body design, with a total length of 17.5mm from the PCB surface to the USB port edge. This extended profile accommodates thicker PCBs or housing enclosures, providing flexibility in device assembly while maintaining compatibility with standard USB-C cables. The 16-pin layout includes dedicated pins for power (VBUS, GND), data transmission (TX/RX pairs), and auxiliary functions (CC, SBU), ensuring full compliance with USB-C specifications.

Constructed with high-quality materials, the connector offers reliable mating cycles and resistance to environmental stressors. Its vertical orientation optimizes space efficiency in compact designs, while the through-hole pins enhance mechanical stability compared to surface-mount alternatives. Perfect for applications demanding both performance and durability, this USB-C socket simplifies integration in devices requiring extended reach or enhanced structural integrity.
