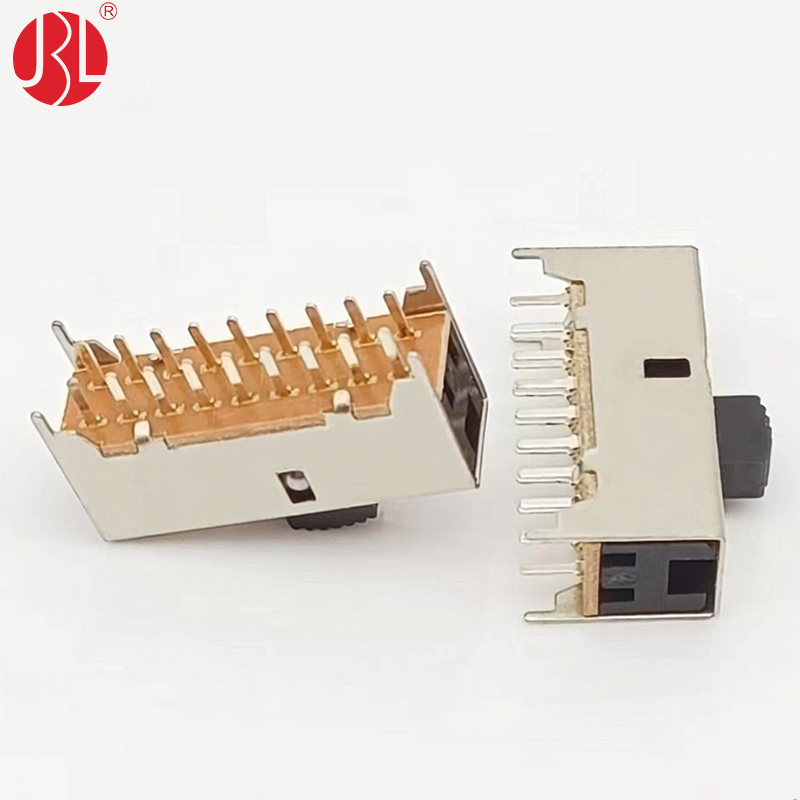

This component is a 6P2T vertical slide switch, a robust and versatile solution for complex circuit routing. The “6P2T” designation indicates it has six independent poles (circuits) controlled by a single actuator, each capable of switching between two distinct positions (Two-Throw). This allows it to simultaneously control multiple signal paths, making it ideal for applications like mode selection, data routing, or channel switching in audio and communication equipment.

Designed for secure PCB mounting, it features a through-hole construction with a vertical orientation, saving valuable board space. The switch offers a precise, tactile feel with a defined total travel distance of 2.0mm. To accommodate various panel thicknesses and design needs, it is available with a range of actuator lengths from a low-profile 2mm up to an extended 8mm. For enhanced mechanical stability, especially in high-vibration environments, the switch incorporates three M2.6 screw holes for permanent mounting to a chassis or panel.

Electrically, it is rated for low-power applications at DC 30V, 0.3A, making it suitable for signal-level switching, logic circuits, and other low-current duties. Its combination of multiple poles, reliable through-hole terminals, and mechanical mounting options makes it a dependable choice for demanding electronic designs.
