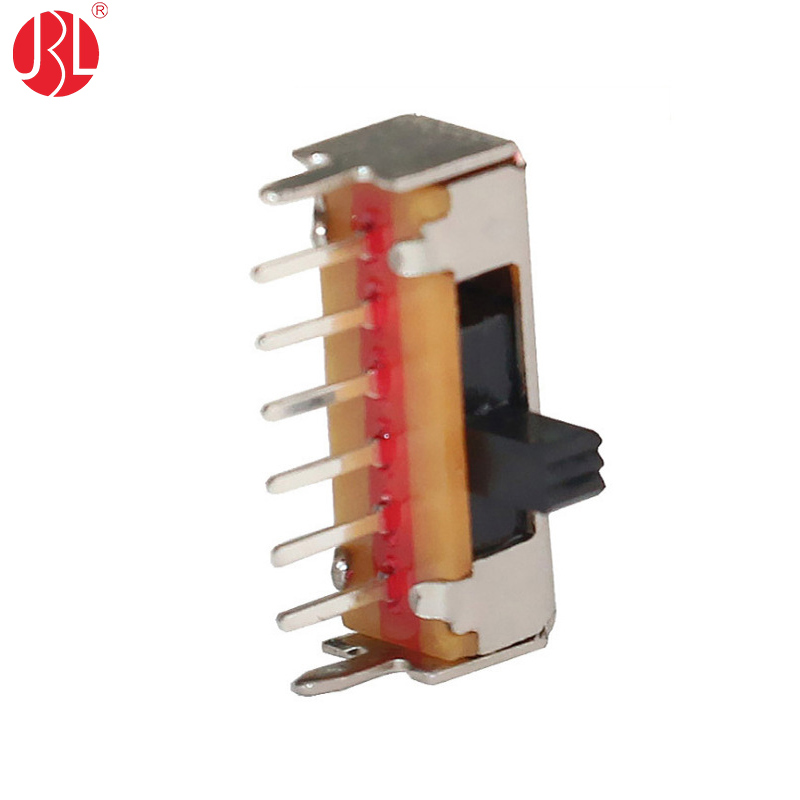

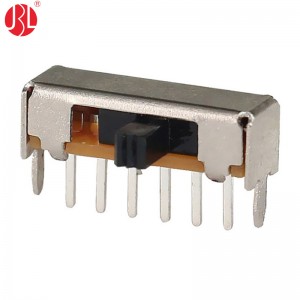

SP4T Slide Switch – Through Hole, Right Angle, Power Rated (DC 12V 100mA)

This SP4T (Single Pole, Four Throw) slide switch is a compact and reliable electromechanical component designed for circuit switching applications. It features a through-hole, right-angle mounting configuration, making it suitable for PCB integration where space optimization is required. The switch is power-rated for DC 12V at 100mA, ensuring stable performance in low-power electronic circuits.

The actuator offers multiple length options (2.0mm, 2.5mm, 3.0mm, 3.5mm, and 4.0mm), providing flexibility for different panel thicknesses and user interface requirements. The sliding mechanism ensures smooth operation, allowing users to select one of four distinct circuit paths (SP4T functionality).

Constructed with durable materials, this slide switch is ideal for applications in consumer electronics, industrial controls, instrumentation, and communication devices. Its right-angle PCB mounting saves board space while maintaining accessibility for manual actuation.

Key Features:

SP4T (4-position) switching
Through-hole, right-angle PCB mounting
DC 12V, 100mA power rating
Multiple actuator lengths (2.0mm–4.0mm)
Compact and robust design

This switch ensures reliable performance in various electronic designs, offering versatility and ease of use.
