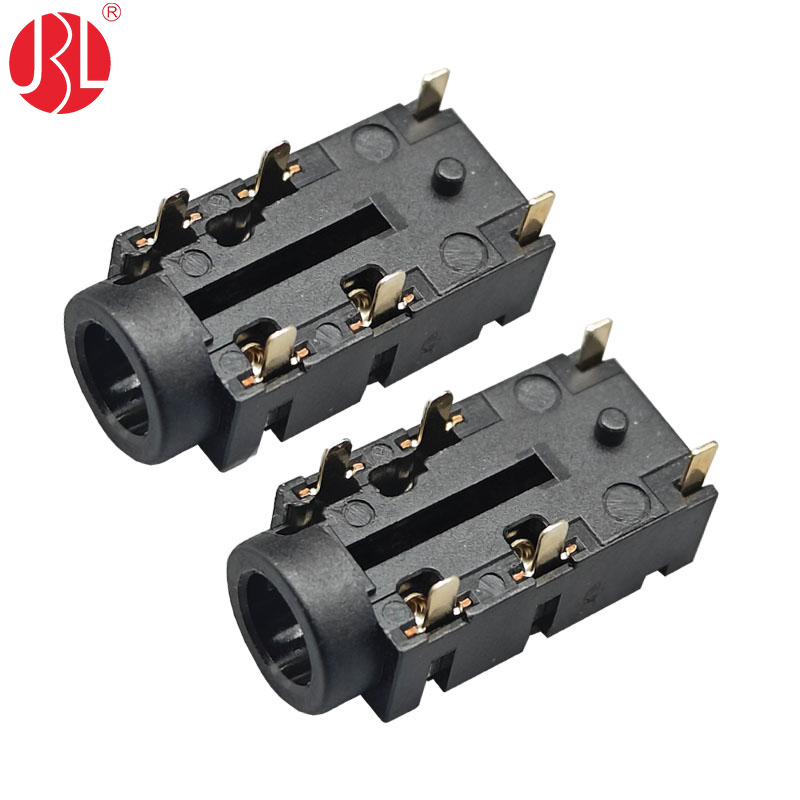

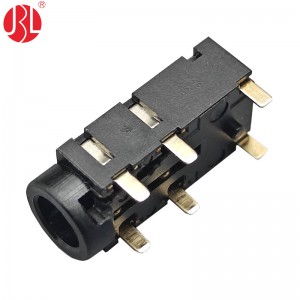

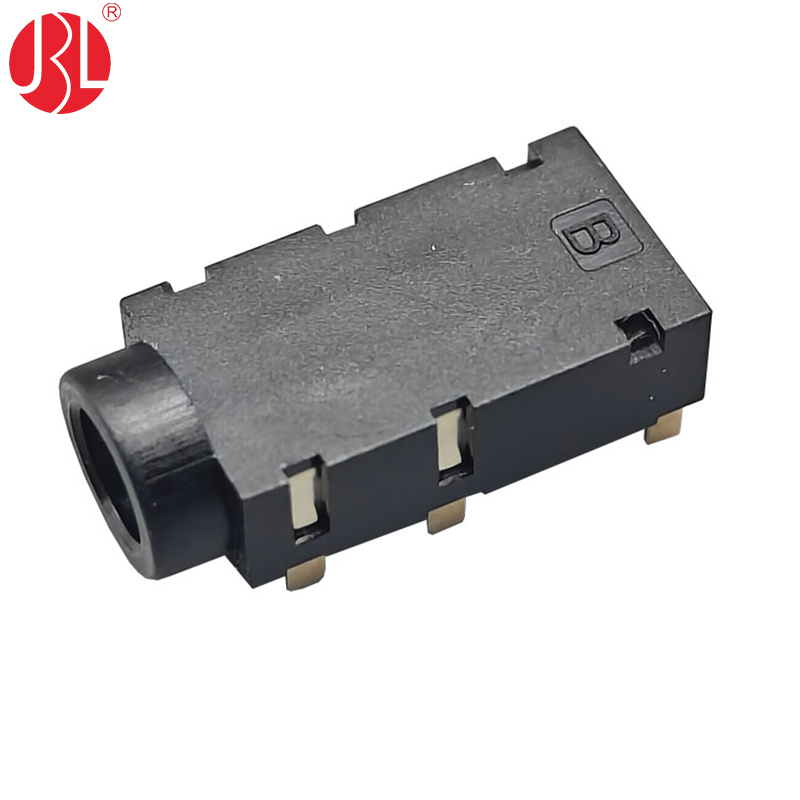

3.5mm Audio Phone Connector (TRRRS, Through Hole Right Angle, 5-Pole)

This 3.5mm audio jack is a high-performance, 5-pole TRRRS (Tip-Ring-Ring-Ring-Sleeve) connector designed for professional and consumer audio applications. Featuring a right-angle through-hole mounting style, it optimizes space efficiency on PCBs while ensuring secure mechanical stability. The 14.0mm conductor length provides robust electrical contact, minimizing signal loss and interference in audio transmission.

Key Features:

• 5-Pole TRRRS Configuration: Supports advanced audio standards (e.g., balanced audio, microphone + stereo + ground) for enhanced functionality compared to standard 3-pole jacks.
• Right-Angle Design: Ideal for compact devices (e.g., smartphones, headphones, audio interfaces) where vertical clearance is limited.
• Through-Hole Mounting: Ensures durable solder joints and resistance to mechanical stress, making it suitable for rugged applications.
• 14.0mm Conductor Length: Balances flexibility and durability, accommodating thin PCBs while maintaining reliable connections.

Applications include headsets with inline microphones, audio mixers, portable media players, and any device requiring multi-channel audio input/output. Its TRRRS layout distinguishes it from TRS/TRRS variants by adding an extra ring for dedicated functions (e.g., ground isolation or secondary audio channels).

This connector meets industry standards for impedance and durability, ensuring compatibility with 3.5mm TRRRS plugs and long-term reliability in audio systems.
