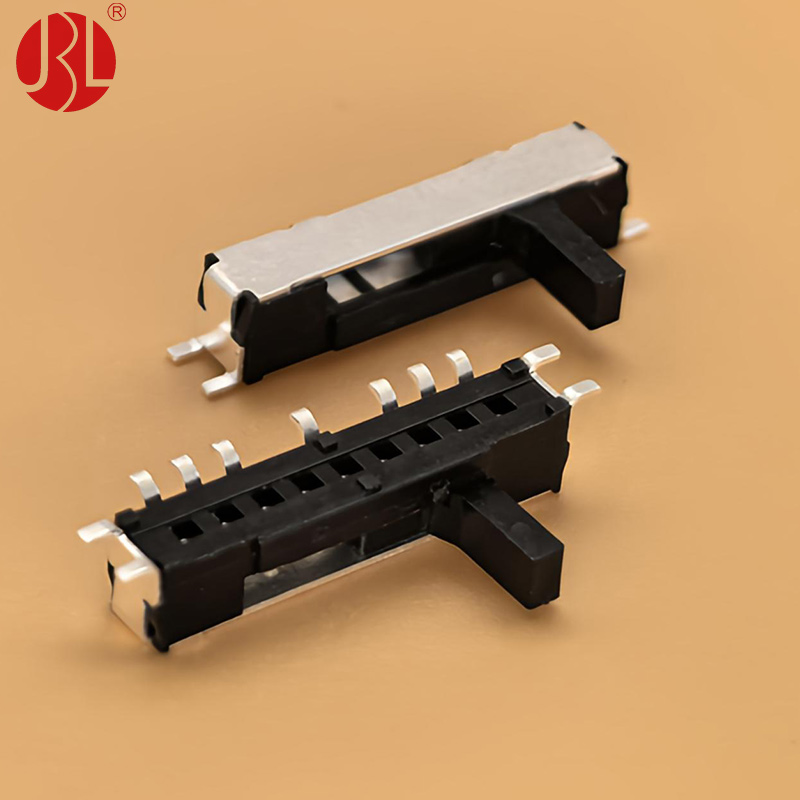

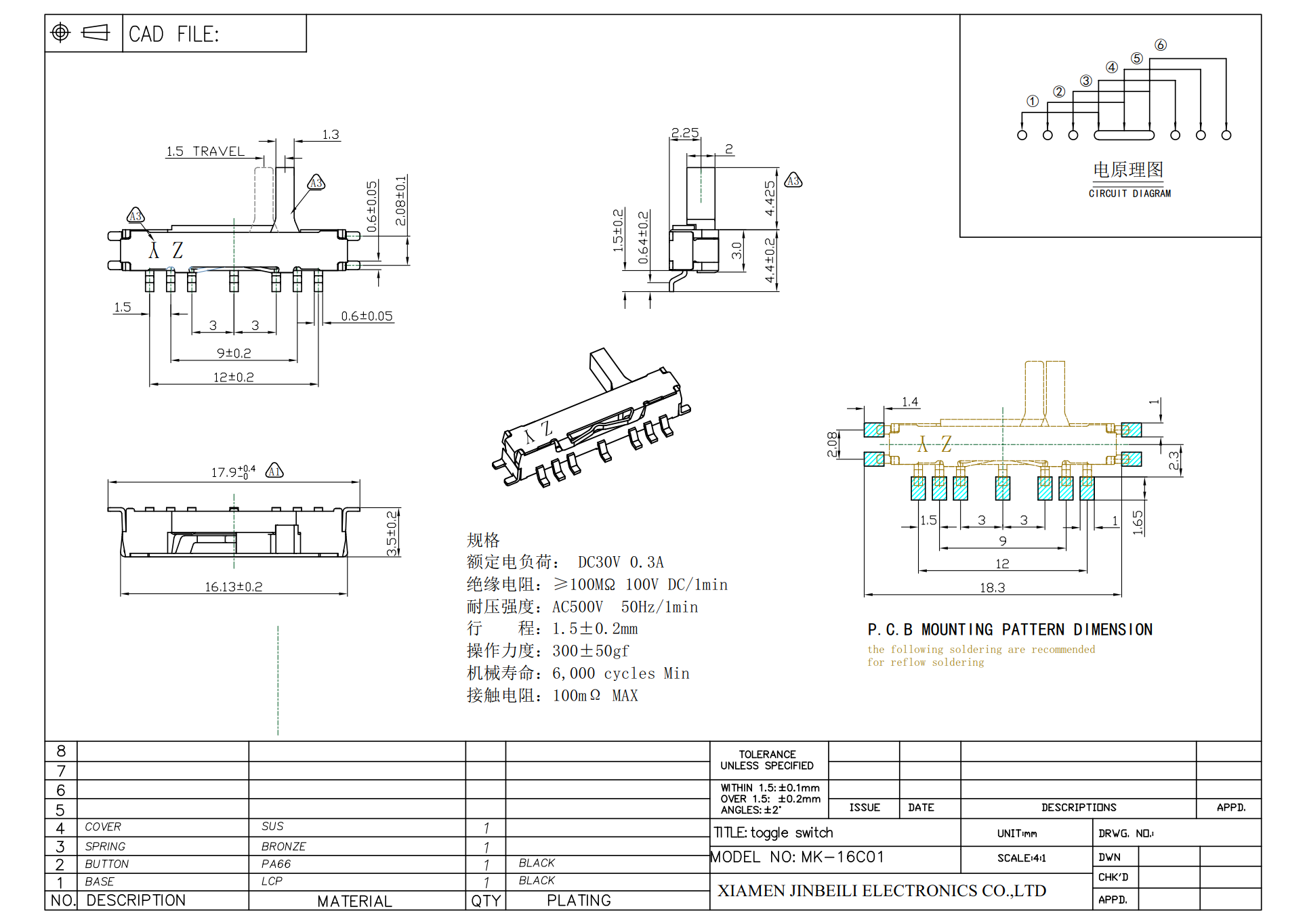

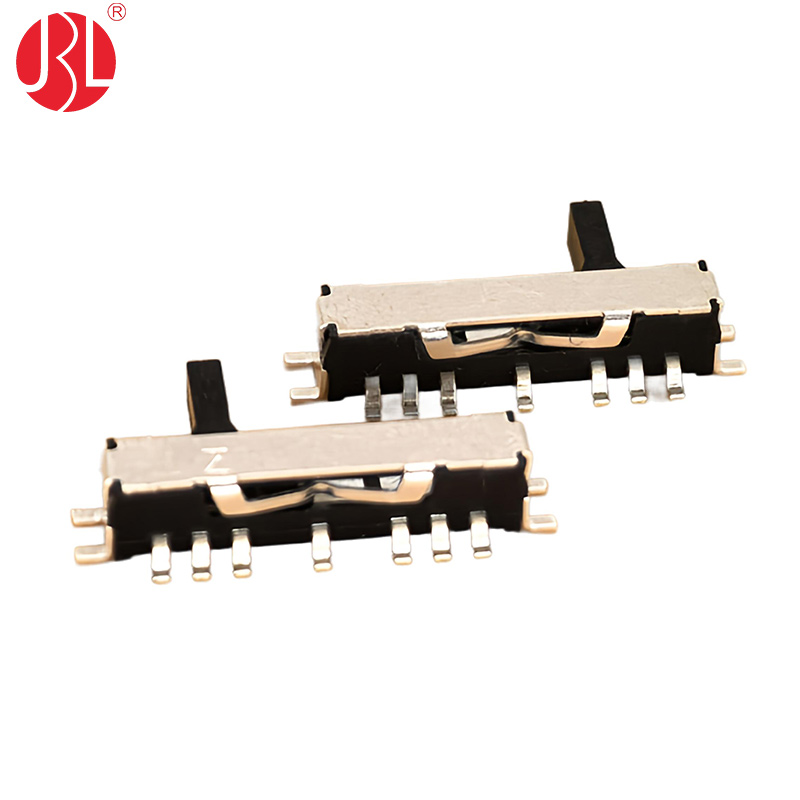

This ultra-compact surface-mount slide switch is engineered for high-density PCB designs where board space is at a premium. With a remarkably small 16.0mm x 3.0mm outline and a low-profile right-angle mounting configuration, it is an ideal solution for modern portable electronics, telecommunications equipment, and sophisticated instrumentation.

The switch features a versatile 1P6T (Single Pole, Six Throw) circuit configuration, allowing it to select one of six different signal paths from a single common input. It is power-rated for low-energy applications at DC 30V 0.3A, making it suitable for signal routing, mode selection, and configuration switching within circuits.

Constructed for reliable SMT assembly, the switch ensures stable placement and strong solder joint integrity during reflow processes. A key feature is its customizable actuator length, available in 2mm, 3mm, 4mm, 4.4mm, and 5.0mm options. This provides crucial design flexibility, allowing engineers to precisely match the actuator height to their specific enclosure and user-interface requirements, ensuring optimal ergonomics and accessibility.
