Custom RF Coaxial Cable Assembly: F-Type Female Bulkhead to Right-Angle TS9 Plug

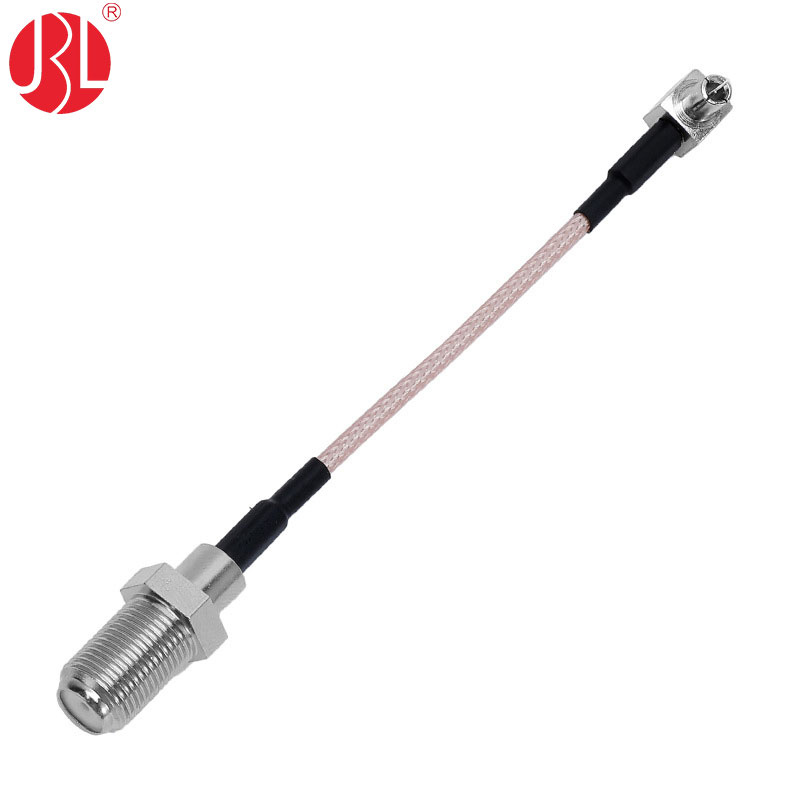

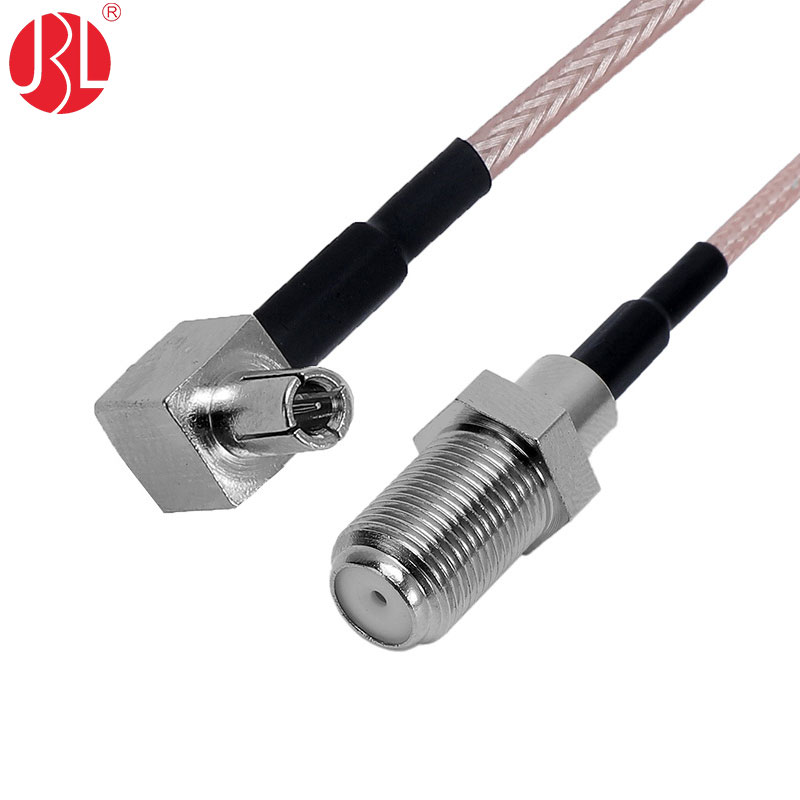

This bespoke RF coaxial cable is engineered for precision signal transmission in applications requiring adaptability between bulkhead-mounted F-type connectors and compact TS9 interfaces. Designed for versatility, it features a bulkhead F-type female connector on one end, ideal for secure panel-mount installations in enclosures, antennas, or set-top boxes. The opposing end terminates in a right-angle TS9 plug, optimizing space efficiency in tight layouts, such as cellular boosters, IoT devices, or SDR radios.

Key Specifications:

• Impedance Options: Tailor performance with 50 Ω (optimized for RF/data) or 75 Ω (ideal for video/CATV) to match system requirements.
• Cable Types: Choose between RG178 (ultra-flexible, low-loss for short runs) or RG316 (enhanced shielding, durable for dynamic environments).
• Length Variants: Available in increments from 50mm to 600mm (in 50mm steps), accommodating custom spacing without excess cabling.

Design Features:

• The bulkhead F-type female connector ensures robust panel integration with 4-hole flange mounting and gold-plated brass contacts for corrosion resistance.

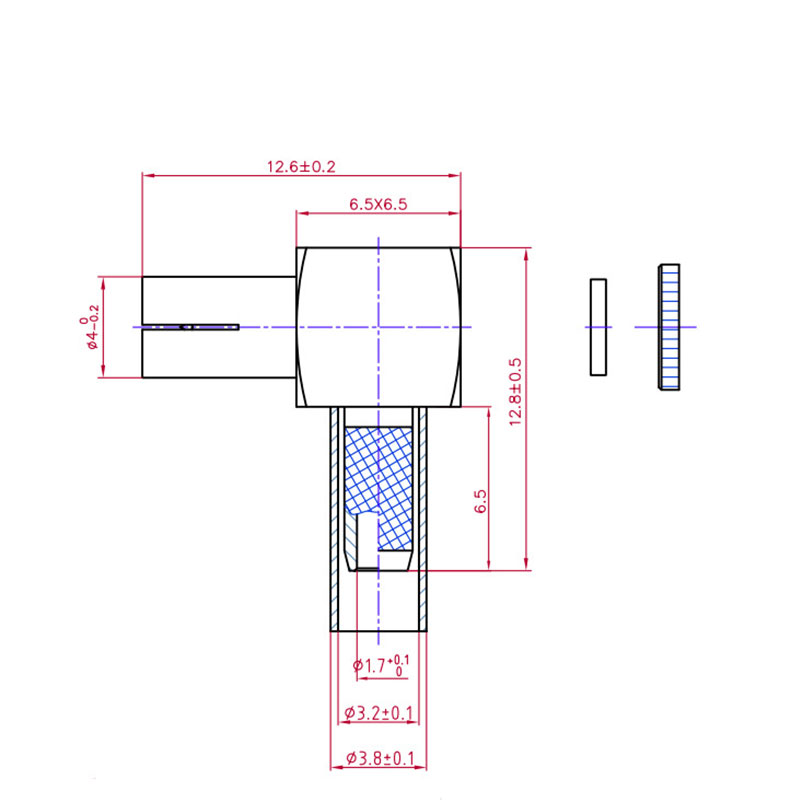

• The right-angle TS9 plug reduces stress on the device port and simplifies routing in confined areas, with a 90° bend radius for reliable connections.
• Cables are terminated with precision-soldered center conductors and triple-shielded construction (braid + foil + dielectric) to minimize EMI/RFI interference.

Applications:

• Connecting external antennas to Wi-Fi routers or 4G/5G modems.
• Interfacing SDR receivers with RF distribution panels.
• Upgrading video signal paths in home theaters or security systems.

Ideal for OEMs, hobbyists, and professionals seeking a compact, high-performance solution for mixed-impedance environments. Custom labeling and color-coding options available upon request.
