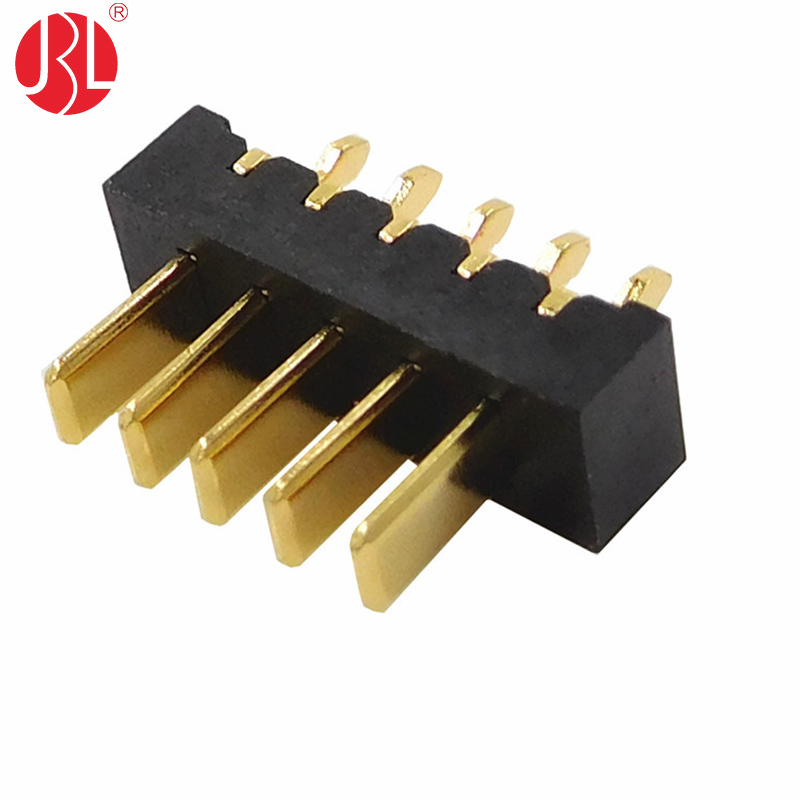

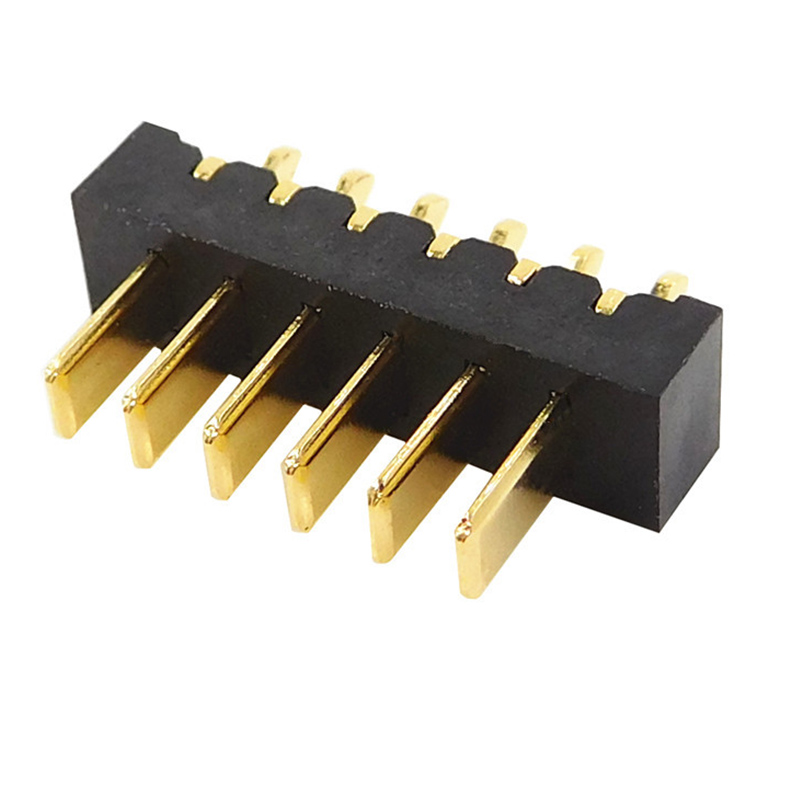

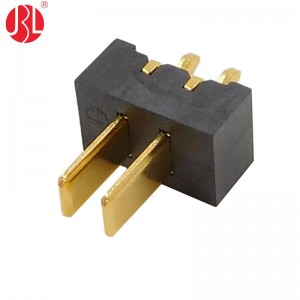

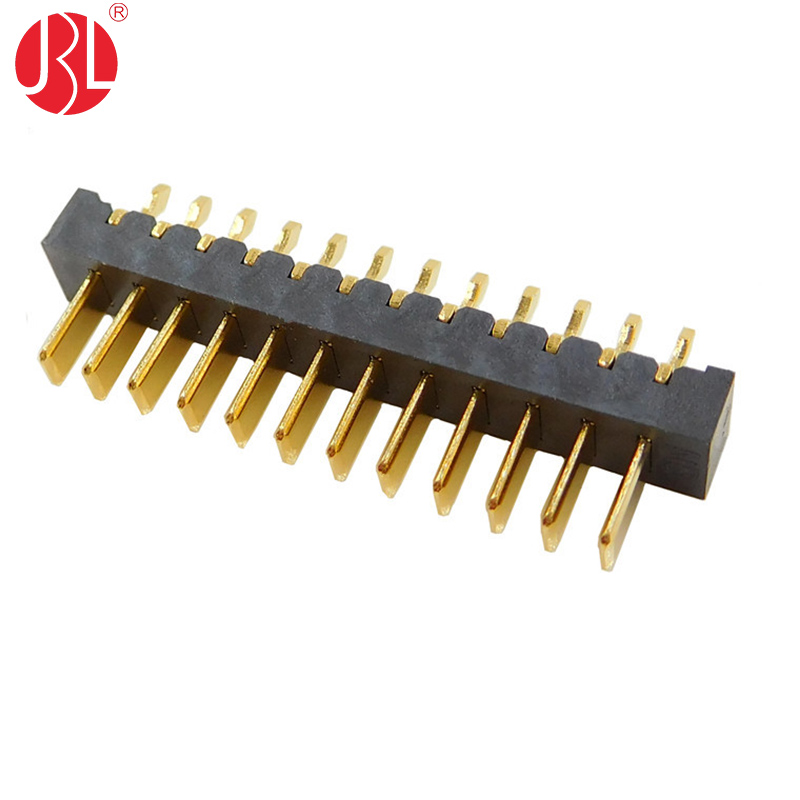

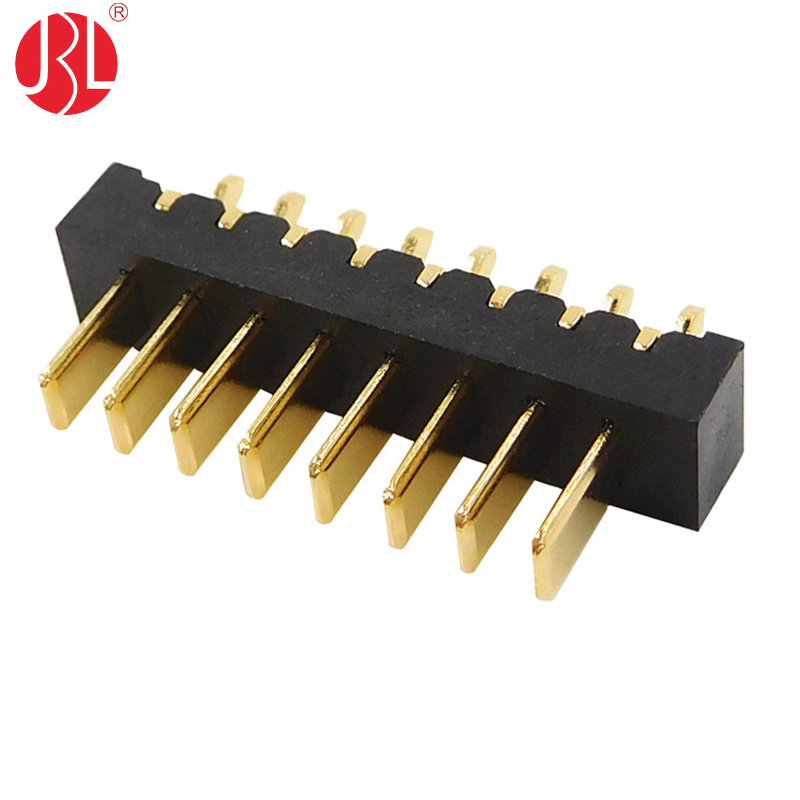

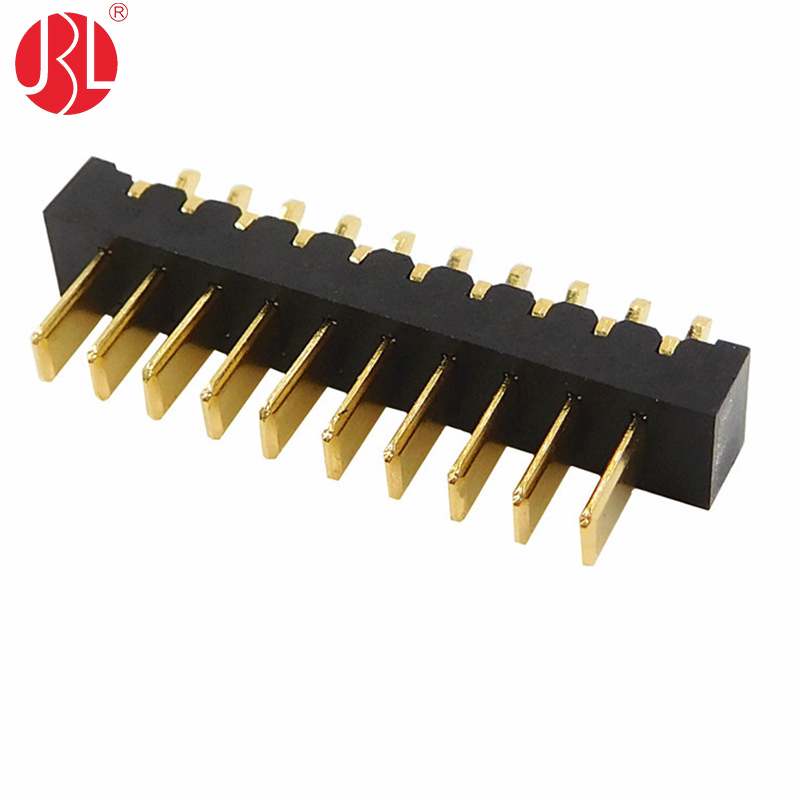

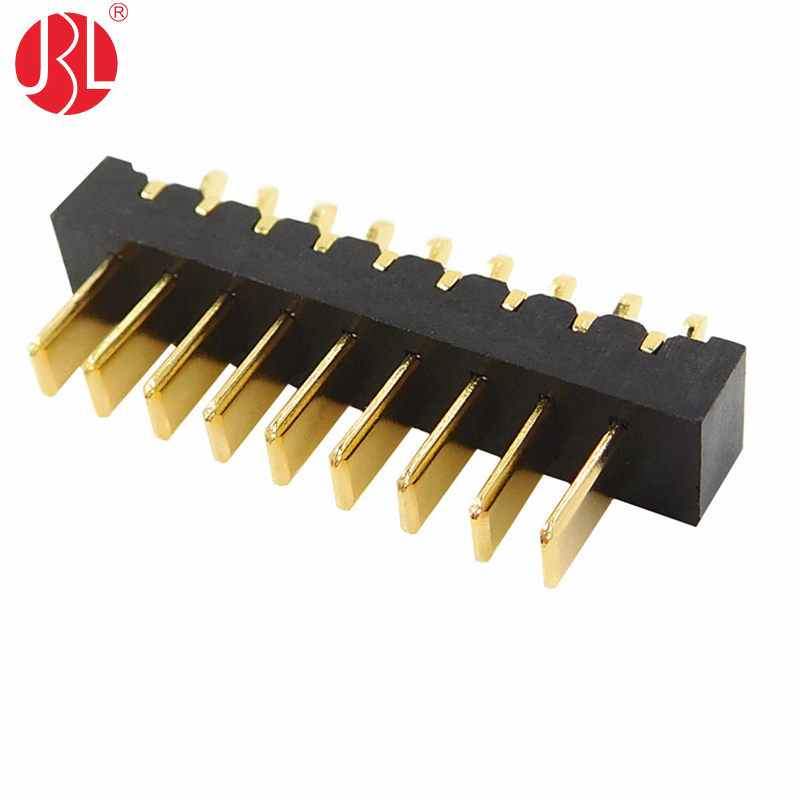

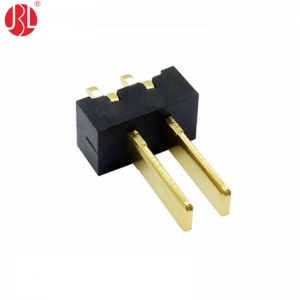

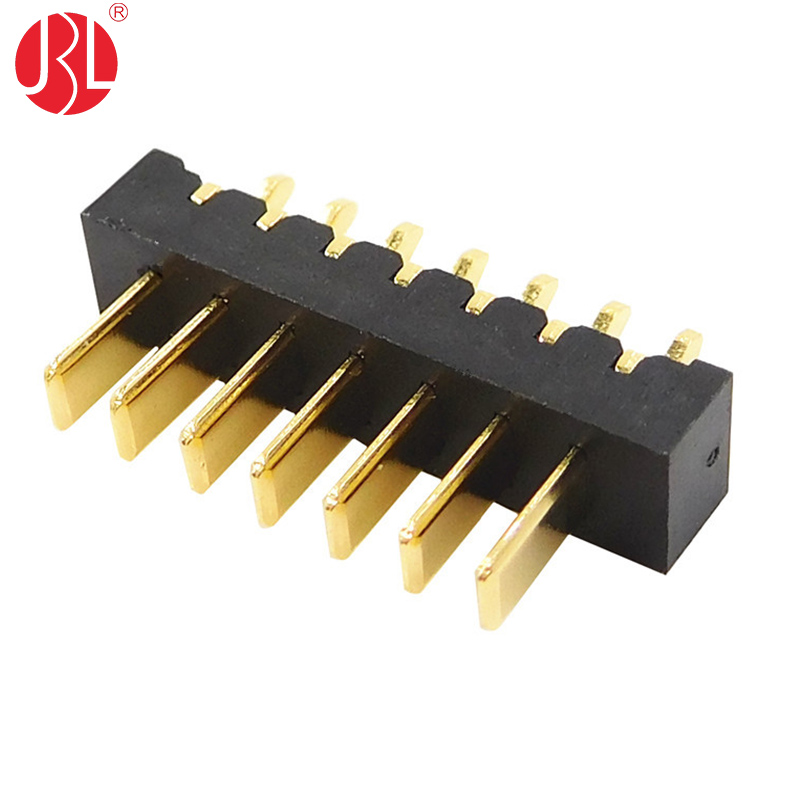

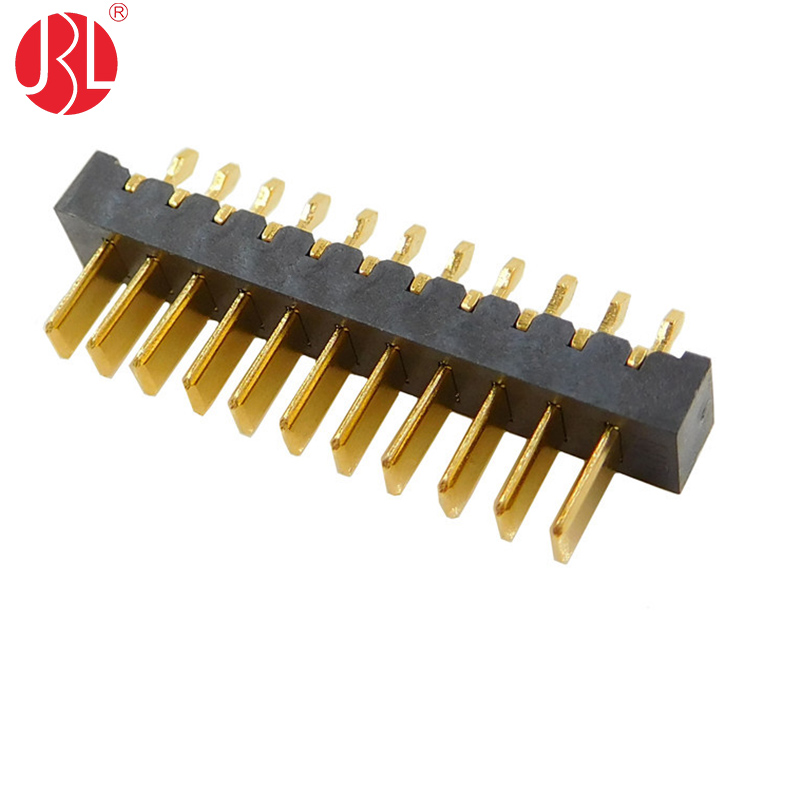

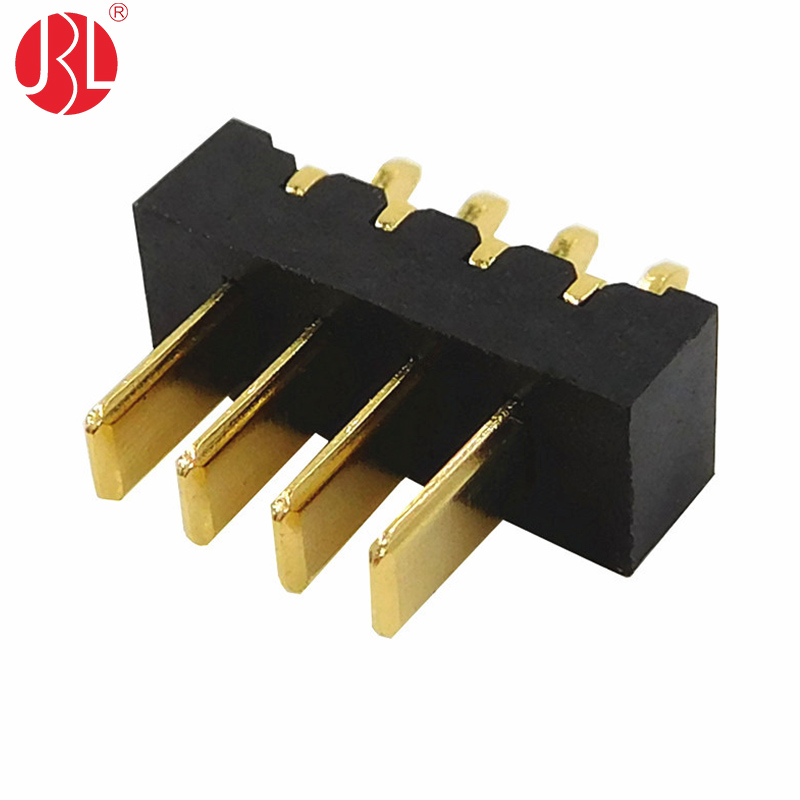

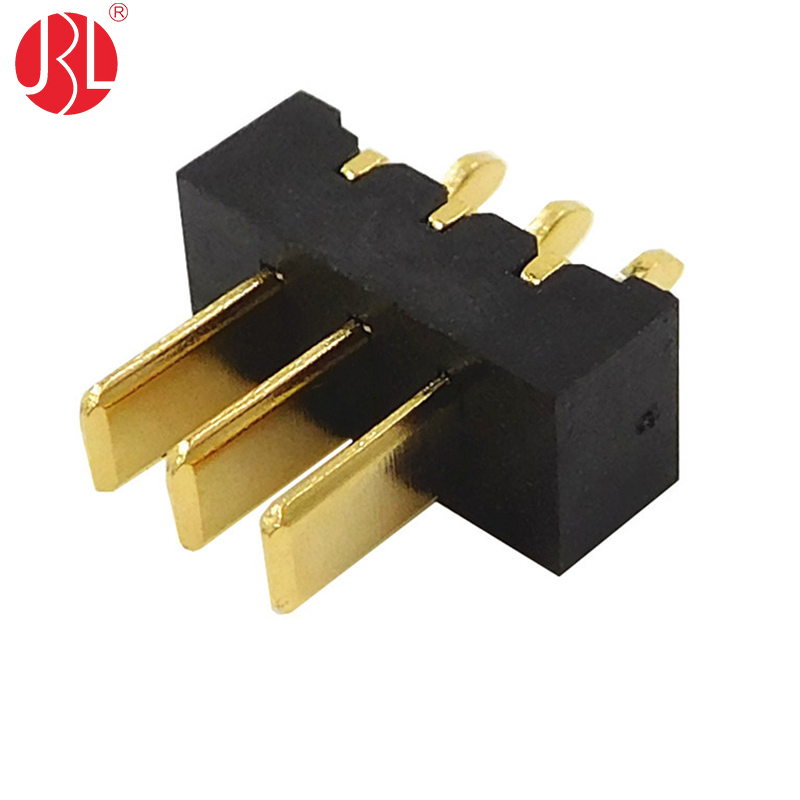

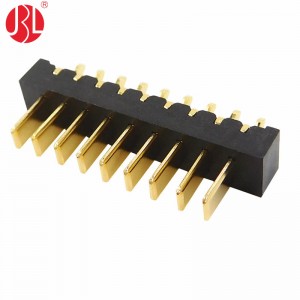

This blade-type male power connector (also known as a blade-type battery connector) is designed for high-current power transmission in compact electronic devices. Featuring a 2.0mm pitch, this vertical through-hole header ensures a secure and space-efficient connection, making it ideal for densely packed PCBs. The contact pins have a reduced length of 4.2mm (compared to the standard 5.8mm), allowing for a lower-profile design while maintaining robust electrical performance.

Available in 2-pin to 16-pin configurations, this connector provides flexibility for various power distribution needs. The insulation housing is constructed from high-temperature PA9T material, offering excellent mechanical strength, heat resistance, and long-term reliability in demanding applications. With a power rating of DC 30V 10A, it is well-suited for high-current applications such as battery packs, power tools, drones, medical devices, and industrial equipment.

Manufactured by Jinbeili, a leading specialist in battery connector production, this connector can be fully customized to meet specific client requirements. Jinbeili’s expertise ensures precision engineering, superior material selection, and strict compliance with industry standards, making it a trusted choice for OEMs and electronics manufacturers worldwide.

Key Features:

• Blade-type male header, 2.0mm fine pitch
• Vertical through-hole mounting for secure PCB attachment
• Shortened contact pin length (4.2mm) for compact designs
• Multiple pin options (2-pin to 16-pin)
• PA9T insulation housing (high heat & chemical resistance)
• Rated for DC 30V 10A power transmission
• Fully customizable designs available

Ideal for battery management systems, portable electronics, and high-power PCBs, this connector ensures durable, high-performance connectivity in space-constrained applications.
