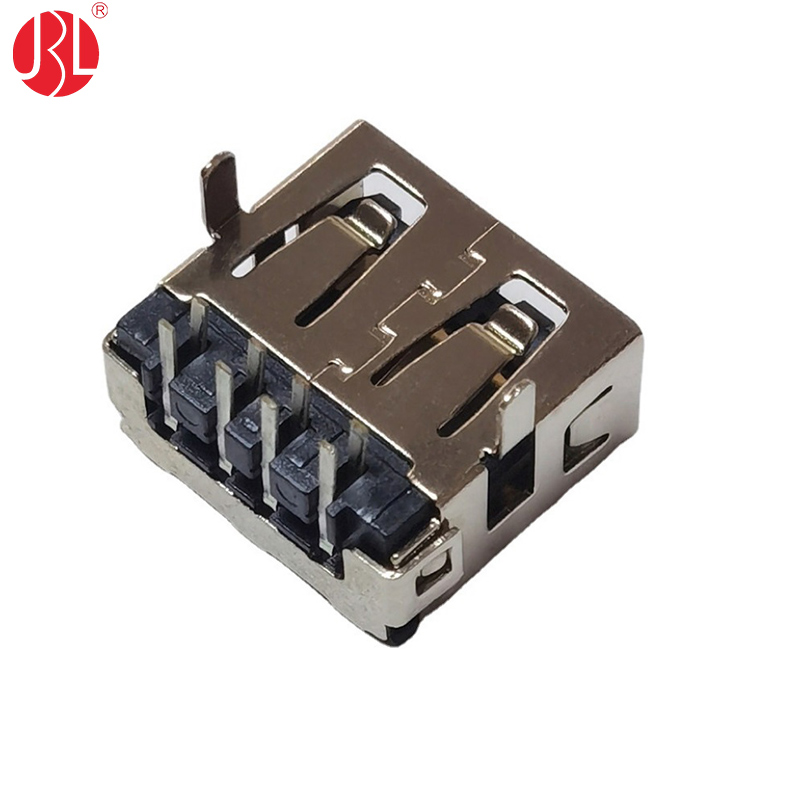

This high-quality USB 2.0 Type A female connector features a space-saving right-angle through-hole design with an extended 15.9mm body length, making it ideal for PCB applications where board real estate is limited. The connector boasts 8 contact pins (4 signal/power + 4 additional support contacts) and supports USB 2.0 data transfer speeds up to 480 Mbps while handling up to 30V DC at 1.5A current.

Constructed with durable, high-temperature resistant thermoplastic housing and gold-plated phosphor bronze contacts, this connector ensures reliable performance through thousands of mating cycles. The through-hole mounting provides superior mechanical stability compared to surface-mount alternatives, making it suitable for applications subject to vibration or mechanical stress.

This component serves as a direct replacement for:
• Würth Elektronik 614108247221
• Tensility International 54-00030

Key features include:

• Right-angle (90°) through-hole configuration
• Extended 15.9mm body length for enhanced PCB stability
• 8-pin contact arrangement (4 signal + 4 support)
• 30V DC/1.5A power handling capacity
• USB 2.0 compliant data transfer
• RoHS compliant construction

Ideal for industrial control systems, medical devices, test equipment, and other applications requiring robust USB connectivity with higher voltage tolerance, this connector combines reliable performance with drop-in compatibility for popular industry-standard designs.
