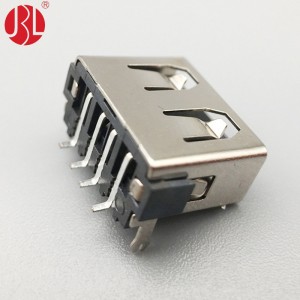

This component is a compact, right-angled USB 2.0 Type A female connector, designed for PCB integration in space-constrained, high-power applications. It features a standard 4-pin configuration (VBUS, D-, D+, GND) to support data transfer and robust power delivery. With a notably short body length of just 10mm, it saves valuable board space in dense designs.

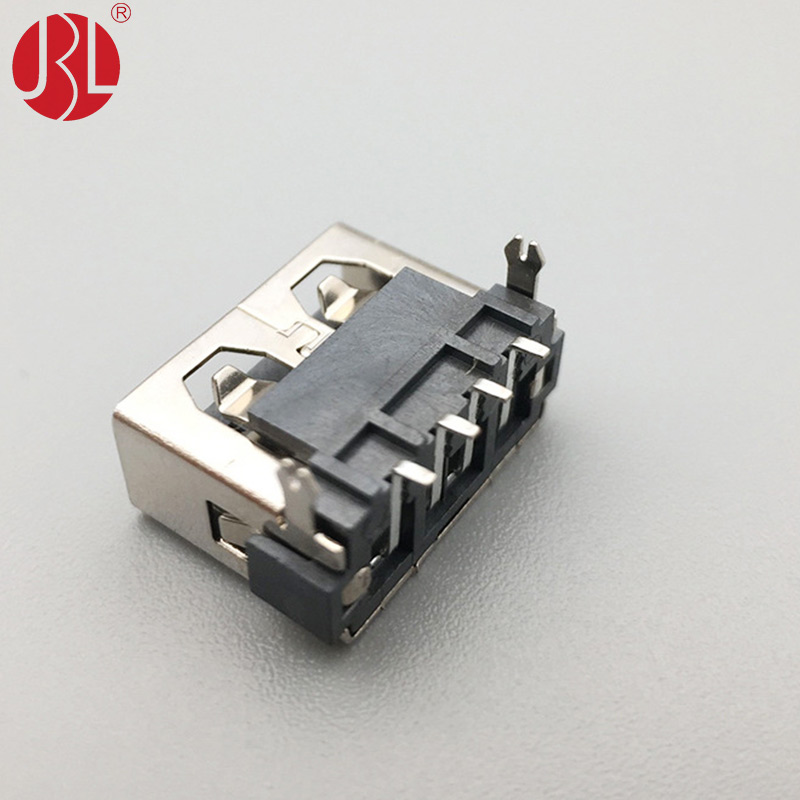

The connector utilizes a hybrid surface-mount through-hole (SMT-THR) mounting style, combining the mechanical strength of through-hole solder pins with the streamlined assembly of surface-mount technology. Its 90-degree right-angle orientation positions the mating port parallel to the PCB, optimizing enclosure design for side or rear panel access.

Critical for modern charging requirements, this jack is power-rated for up to DC 30V at 3A, enabling its use in fast-charging protocols that exceed standard 5V USB power. This high current and voltage rating ensure reliable performance for power-hungry peripherals. The connector stands at a low profile, with a height above the board of only 6.3mm, contributing to sleek end-product form factors. It is an ideal solution for external ports on charging docks, industrial equipment, automotive accessories, and compact consumer electronics where durability, power capacity, and space
