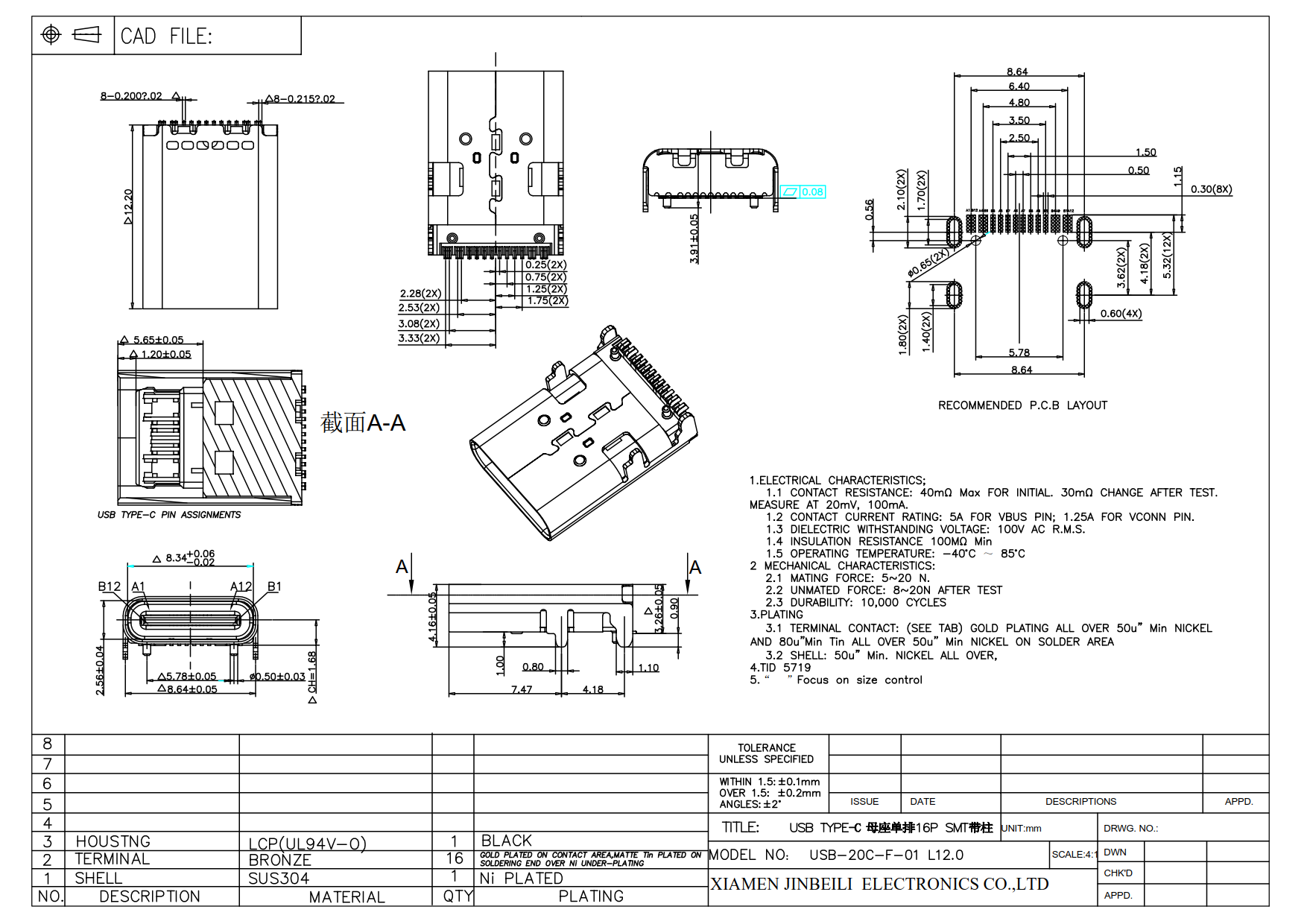

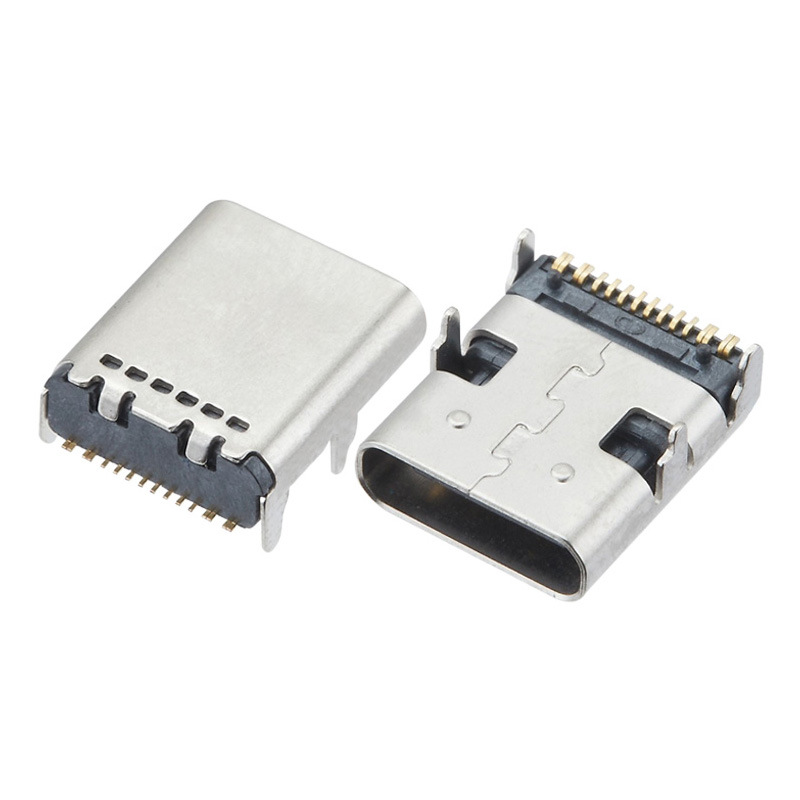

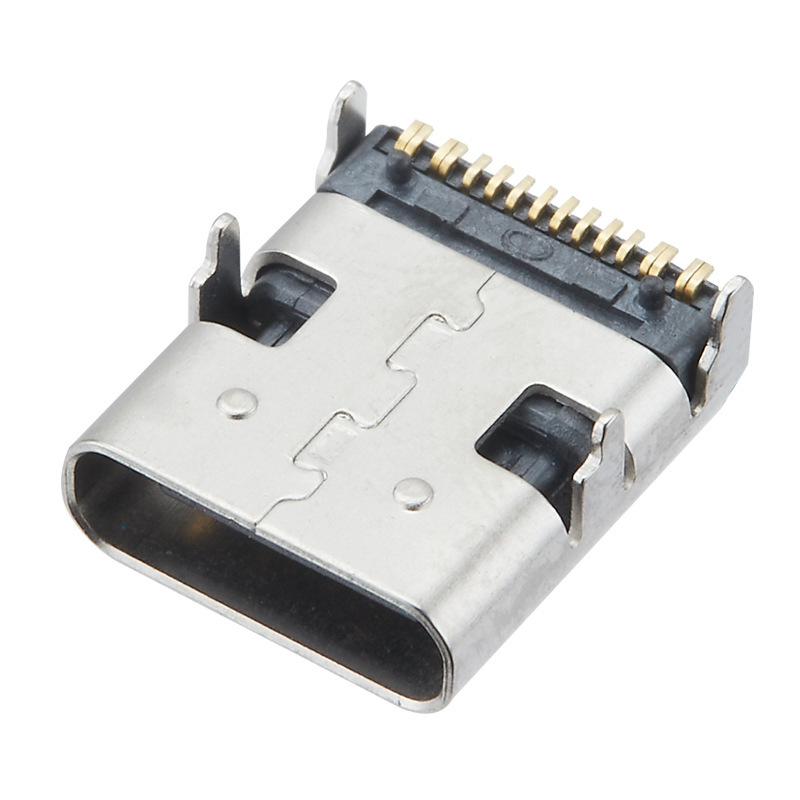

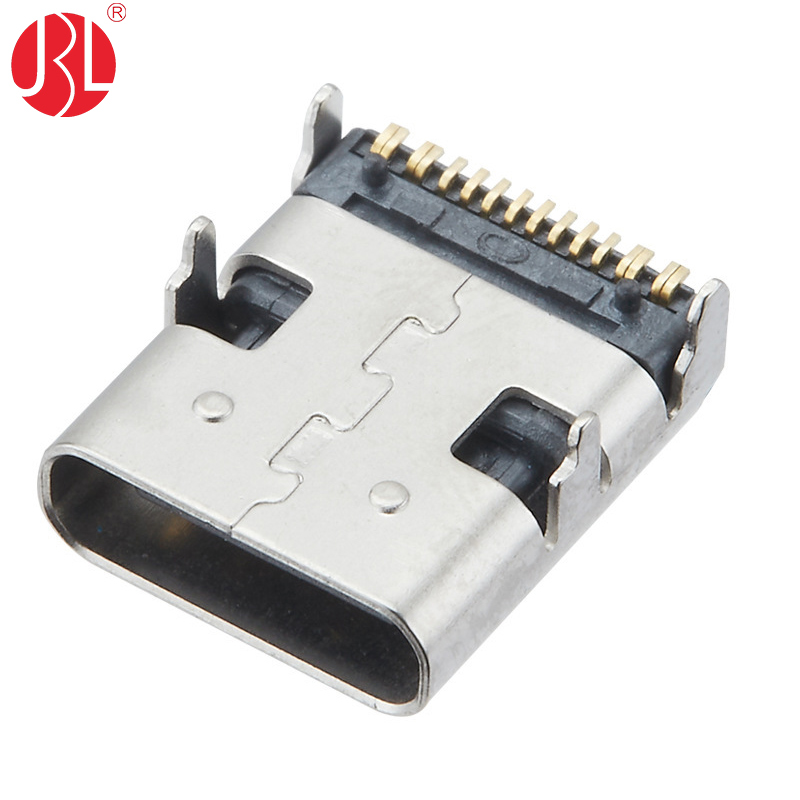

The USB Type-C Female Connector Jack is a high-performance, compact interface designed for modern electronic devices, offering reversible plug orientation and robust data/power transmission. This 16-circuit connector supports USB 3.1/3.2 standards, ensuring high-speed data transfer (up to 10Gbps) and power delivery (up to 100W with PD support). Its surface mount (SMT) and through-hole (THT) right-angle mounting design allows flexible PCB integration, saving space while ensuring mechanical stability.

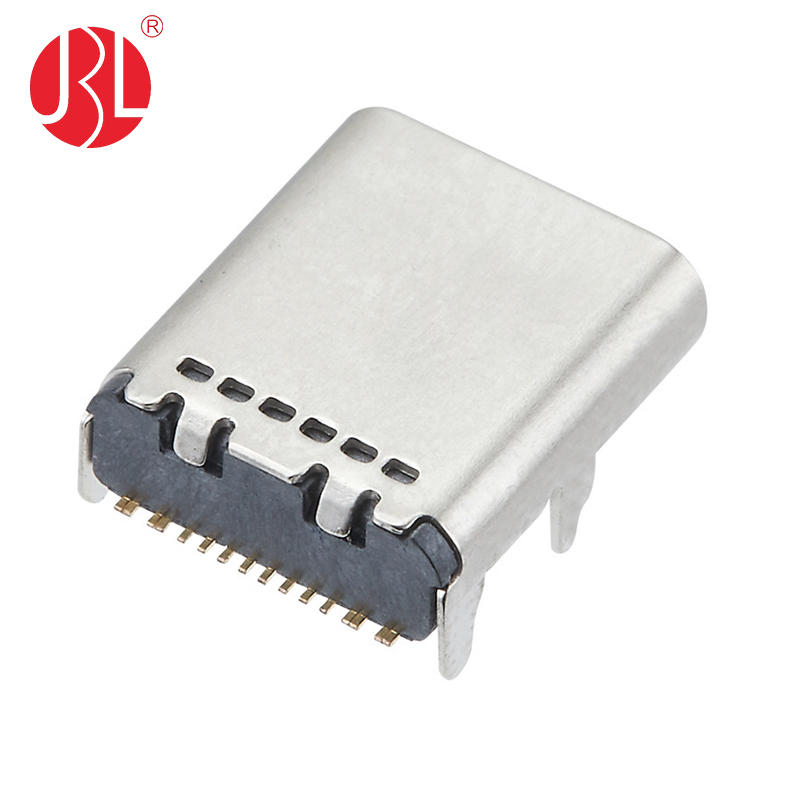

Featuring a 12mm long body shell, this connector provides durability and secure mating with male USB-C plugs. The right-angle orientation makes it ideal for space-constrained applications, such as laptops, tablets, and portable devices. The 16-pin configuration includes dedicated pins for power (VBUS), ground (GND), differential data pairs (D+/D-, TX/RX), CC (Configuration Channel), and SBU (Sideband Use), ensuring full USB-C functionality.

Constructed with a metal shell for EMI shielding and high-temperature-resistant plastic, it ensures reliable performance in demanding environments. The connector supports 4K video output (Alt Mode), fast charging, and backward compatibility with older USB standards via adapters. Its SMT/THT hybrid design enhances solder joint strength, making it suitable for industrial, automotive, and consumer electronics applications.
