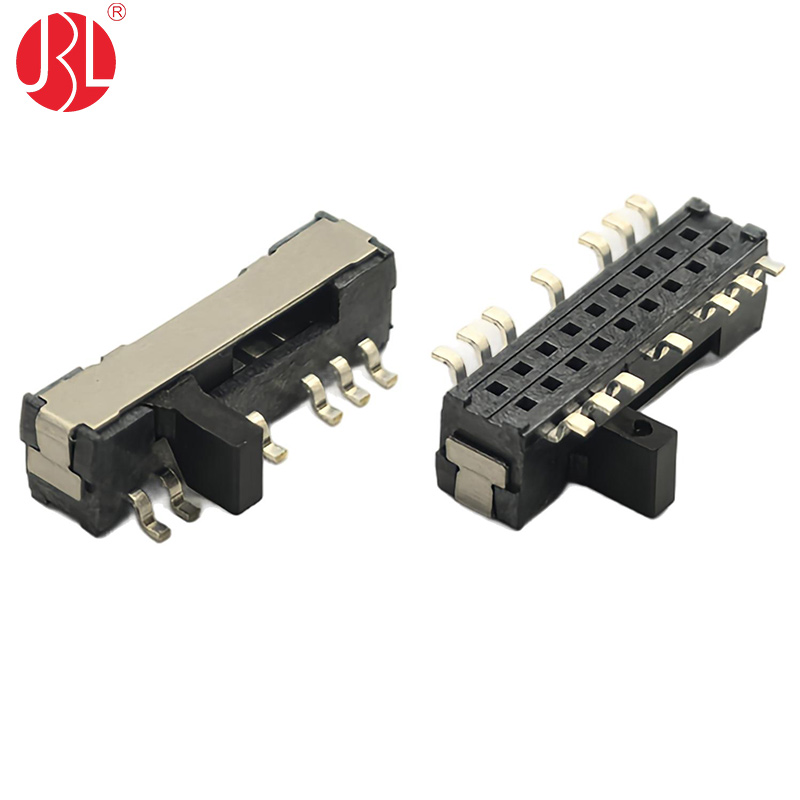

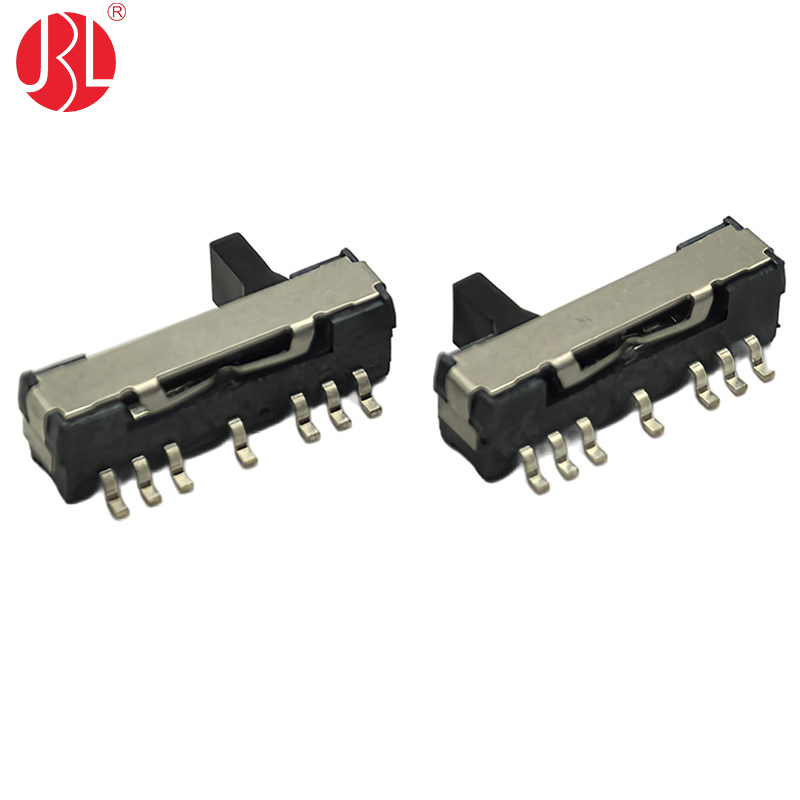

This highly compact DP6T slide switch is engineered for complex circuit switching in space-constrained applications. Its miniature 16.0mm x 3.7mm footprint and low-profile, right-angle surface mount design make it an ideal component for advanced PCBs in telecommunications, test instrumentation, and sophisticated consumer electronics.

The switch features a 2P6T (Double Pole, Six Throw) circuit configuration, enabling two separate circuits to be switched simultaneously across six different positions. This allows for the control of multiple signal paths from a single actuator action. It is rated for low-energy applications at DC 30V 0.3A, suitable for signal routing and configuration switching.

Designed for reliable SMT assembly, it ensures stable placement and strong solder joint integrity. A key feature is the selection of five actuator lengths—2mm, 3mm, 4mm, 4.4mm, and 5.0mm—providing critical design flexibility. This allows engineers to perfectly tailor the actuator height to specific enclosure requirements, ensuring optimal user accessibility and ergonomic operation in the final product.
