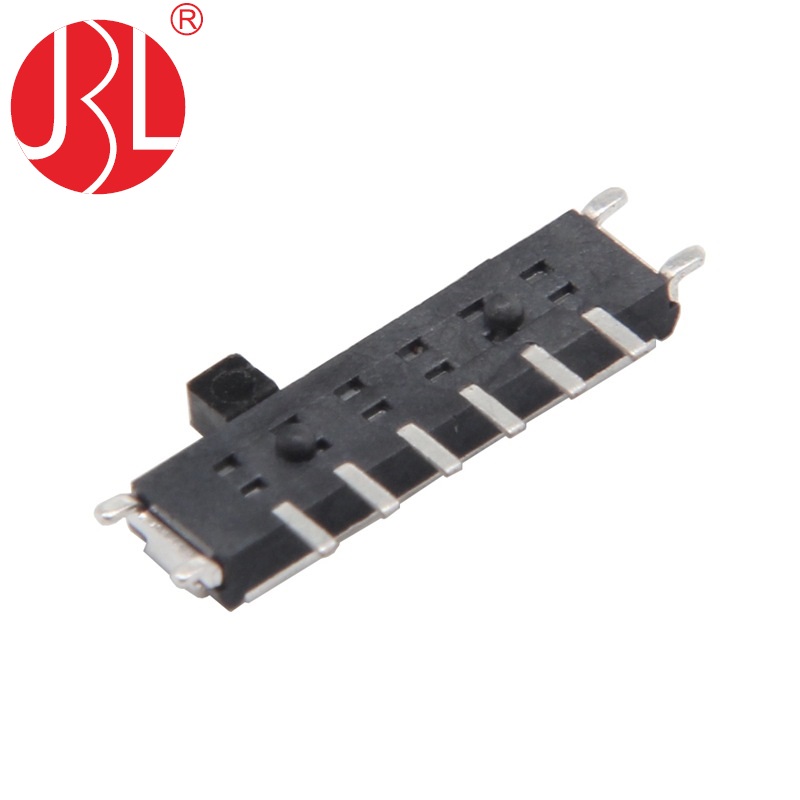

This ultra-compact surface-mount slide switch is engineered for space-critical PCB designs requiring reliable signal selection. The SP4T (Single Pole, Four Throw) configuration provides a single common terminal that connects to any one of four distinct outputs, making it ideal for multi-mode selection, signal routing, and configuration settings in dense electronic assemblies. Its right-angle terminal design allows the switch to mount flat on the board with the actuator accessible from the edge, perfectly suiting applications with limited vertical clearance.

Designed for seamless integration, the switch is offered with multiple actuator lengths (1.0mm, 1.5mm, 2.0mm, and 2.5mm) to accommodate various panel thicknesses and user-interface requirements. It is rated for low-current operation at DC 30V, 0.1A, making it suitable for logic-level signals, digital interfaces, and low-power circuits in consumer electronics, communication modules, test equipment, and portable devices.

This component features identical mechanical dimensions and electrical function to the Nidec Components CUS-14TB series, ensuring perfect drop-in compatibility for designs requiring a second source or replacement. It matches the performance and reliability of this industry-standard part, providing excellent tactile feedback, a positive detent mechanism, and stable position holding. Packaged in tape and reel for automated assembly, this miniature switch delivers exceptional value and performance for high-density, low-profile applications.
