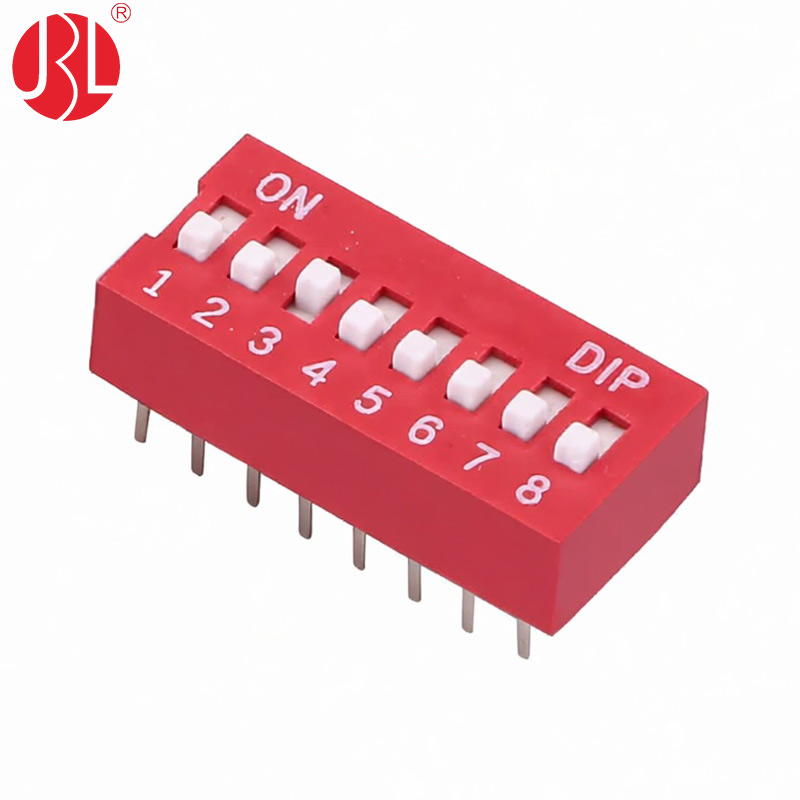

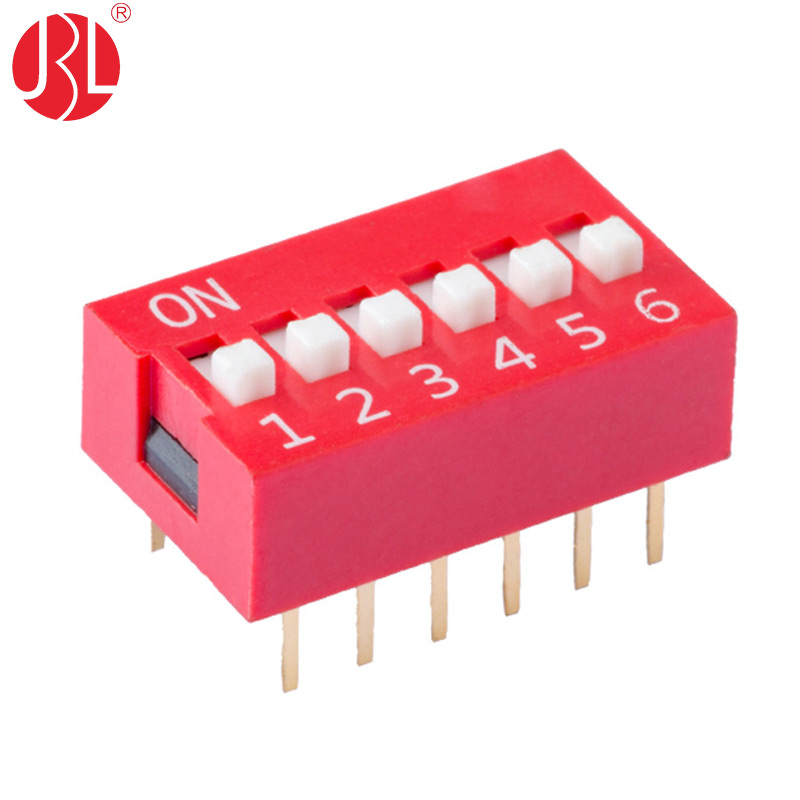

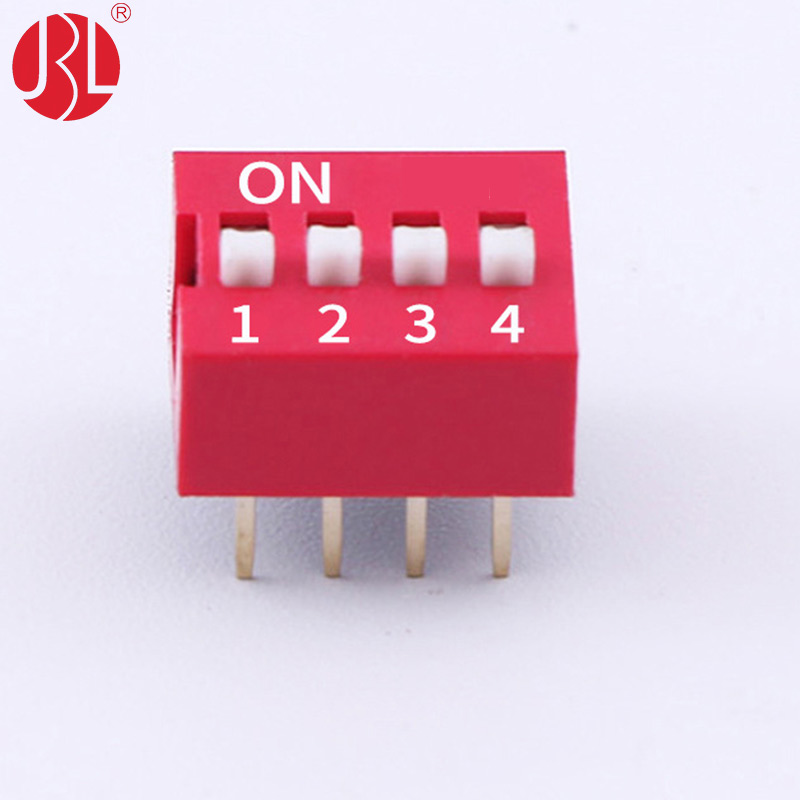

This is a Through-Hole Mount DIP (Dual In-line Package) switch designed for manual circuit configuration on printed circuit boards (PCBs). Its defining characteristic is the slide actuator type, featuring raised actuators for easy finger or tool adjustment. The housing is constructed from durable, flame-retardant PBT material in a standard red color, ensuring mechanical strength and high-temperature resistance during soldering.

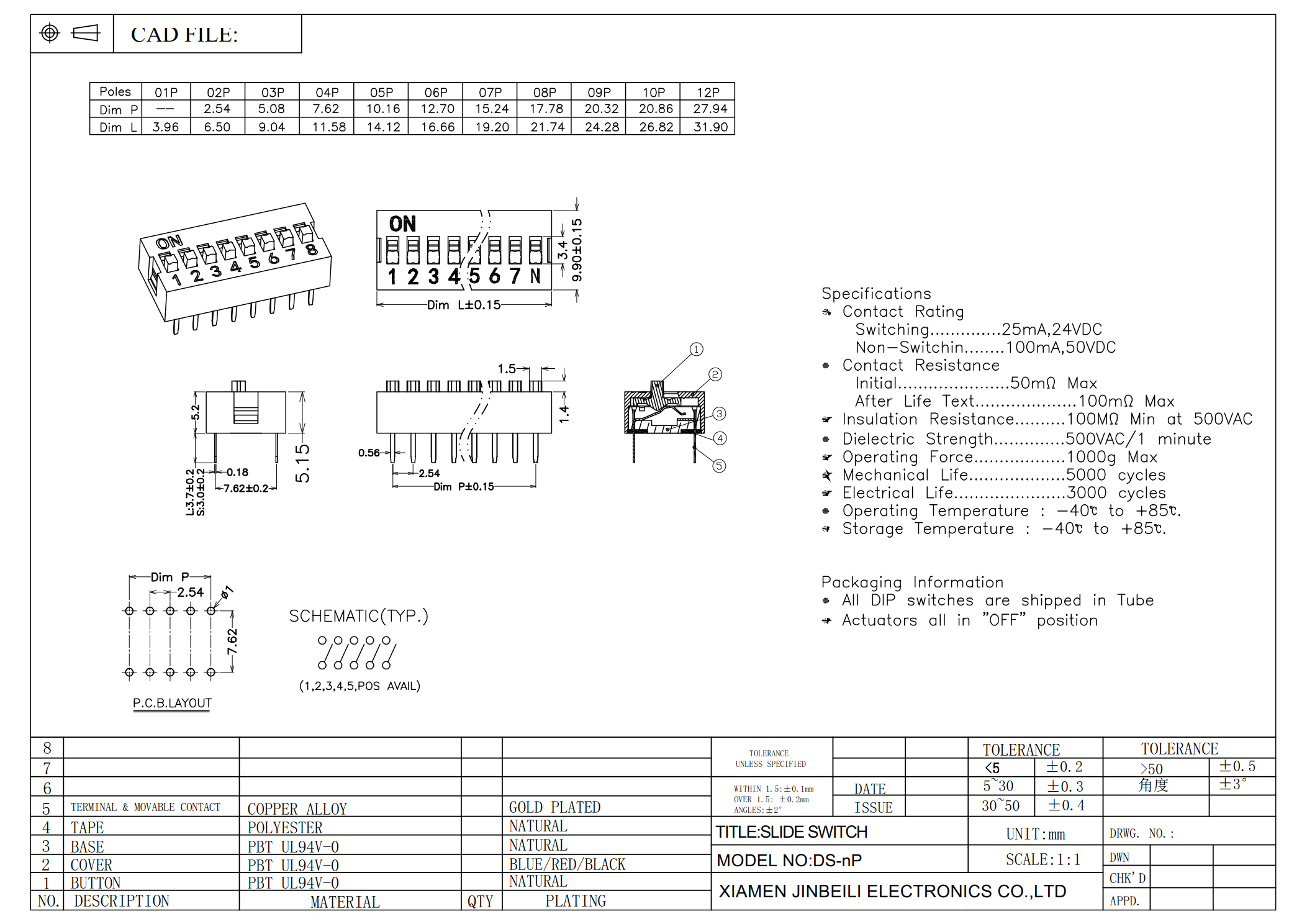

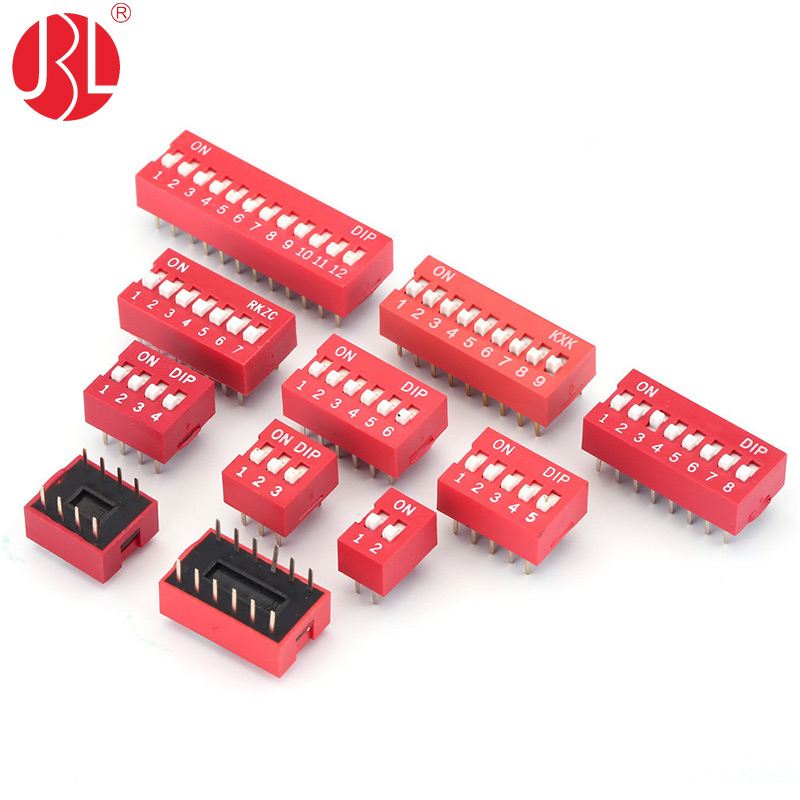

The switch is offered in versatile configurations, with position number options ranging from 2 to 12 positions, allowing for binary or multiple setting combinations to tailor the electronic device’s function. It features a standard 2.54mm (0.1-inch) pin pitch, making it universally compatible with standard PCB layouts and breadboards.

Electrically rated for DC 24V at 25mA, it is suitable for low-power signal routing and logic-level applications in a wide array of electronics, including industrial controls, computer motherboards, and communication devices. The through-hole design provides a robust mechanical and solder connection to the board, ideal for applications requiring high reliability. This DIP switch offers a cost-effective and straightforward solution for setting hardware addresses, selecting operating modes, or configuring system parameters post-production.
